Stepless Speed Electric Single Column Vertical Test Stand with Max Force 1000N

Stepless Speed Electric Single Column Vertical Test Stand with Max Force 1000N
Stepless Speed Electric Single Column Vertical Test Stand with Max Force 1000N Stepless Speed Electric Single Column Vertical Test Stand with Max Force 1000N Stepless Speed Electric Single Column Vertical Test Stand with Max Force 1000N Stepless Speed Electric Single Column Vertical Test Stand with Max Force 1000N Stepless Speed Electric Single Column Vertical Test Stand with Max Force 1000N Stepless Speed Electric Single Column Vertical Test Stand with Max Force 1000N

Large Image :  Stepless Speed Electric Single Column Vertical Test Stand with Max Force 1000N

Product Details:
Place of Origin: DONGGUAN
Brand Name: iqualitrol
Certification: CE
Model Number: AEL
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Carton box
Delivery Time: 10 work days
Payment Terms: T/T
Supply Ability: 100 Sets per Month
Detailed Product Description
Maximum Load: 500N Effective Travel: 200mm
Test Speed: 15~240 Or 60-500rpm Voltage: 110-220V
Dimension: 400x320x620mm Net weight: 40kg
High Light:

material testing apparatus

,

material testing equipment

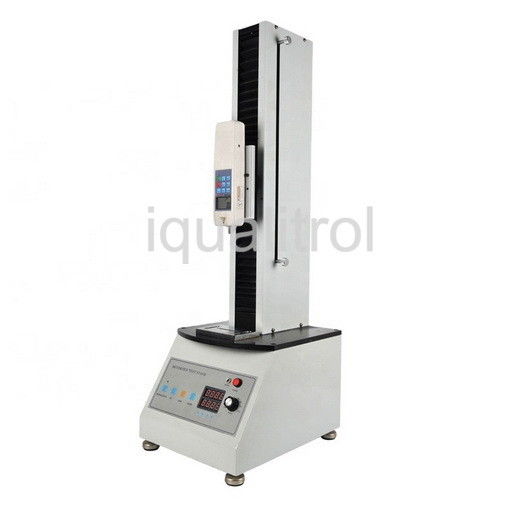

Stepless Speed Electric Single Column Vertical Test Stand with Max Force 1000N



Brief Introduction:

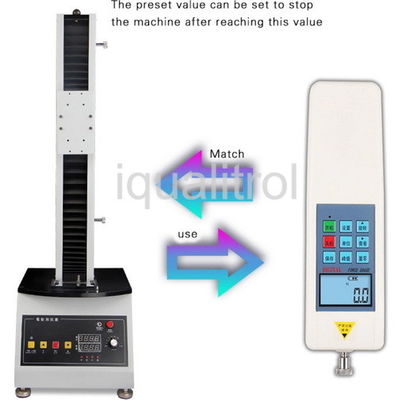

iqualitrol Single-column Vertical Machine is force load test platform specially matched for HF and NK series force measurement gauge.



The product is double-pole structure, which has the advantages of good stability, wide application range, convenient use, etc.



iqualitrol vertical test stand has the function of stepless speed regulation, manual (inching) and automatic control switching.



Applicable to rubber and plastic, light industrial textile, building doors and windows, composite materials, electric wire and cable, auto parts, power machinery, scientific research institutions and other industries push-pull load, insertion force, destruction test and other tests.



Features:

1: Electric load, step less speed regulation, gear drive

2: Compact structure, stable drive

3: Simple operation, able to be used with various kinds of clips



Specifications and Parameters

1:  Maximum load: 500N

2:  Effective travel: 200mm

3:  Test speed:15~240 or 60-500 mm/min(choose by customer)

4:  Working voltage: 110-220V

5:  Outline dimension: 400x320x620mm

6:  Net weight:30-40kg

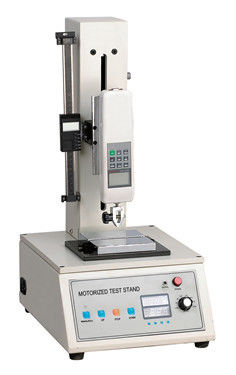

Stepless Speed Electric Single Column Vertical Test Stand with Max Force 1000N 0

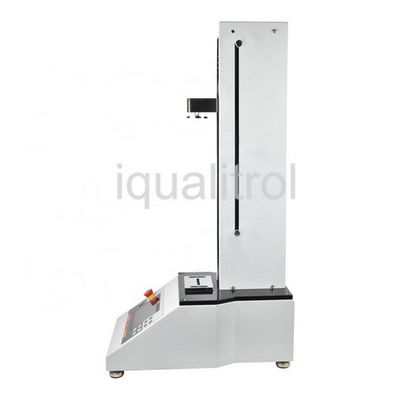

Stepless Speed Electric Single Column Vertical Test Stand with Max Force 1000N 1

Applications:

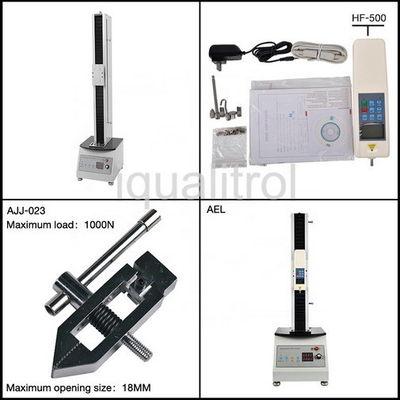

Stepless Speed Electric Single Column Vertical Test Stand with Max Force 1000N 2





I Function:

iqualitrol AEL Single-column Vertical Machine is force load test platform specially matched for HF and NK series Force Measurement Gauge. The product is double vertical rod structure, featuring good stability, wide applicable scope and convenience, as well as stepless speed regulation, manual (point) and automatic control switching functions.



Applicable for tests of force load, Insertion and withdrawal, destruction in such industries as rubber and plastic, light industry-textile, constructional door and window, composite materials, electric wire and cable, parts and accessories for automobile, power machinery, scientific research institutes, etc.



II Features:

1,Electric load, stepless speed regulation, gear drive

2,Compact structure, stable drive

3,Simple operation, able to be used with various kinds of clips



III Specifications and Parameters:

1, Maximum load: 500N

2,Effective travel: 200mm

3, Test speed:0-200 mm/min

4,Working voltage: 220V

5,Outline dimension(mm): 400x320x620

6,Net weight: 30kg



IV Installation Method of Force Measurement Gauge

Sensor in-built type: insert 4-M6 screw into fixed block 4-φ6.2 holes, invaginate 1 gasket respectively in the direction of thread, and screw tight with 4-M6 thread on the installation board of force measurement gauge, the installation holes of

force measurement gauge on installation board are divided into two groups, 30x145 group and 40x90 group, which can be determined by users according to requirements.

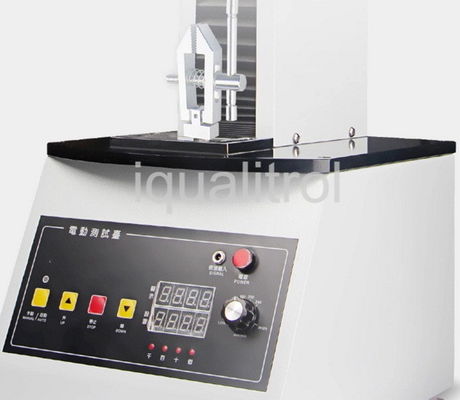

V Usage of Control Panel

1. Power switch: when button is pressed, the power is on, when button is pressed again, the power is off.

2. Speed control: due to the difference of the tested objects and user requirements, the movement speed is 20~200mm/min when turn button of speed regulator is adjusted.



VI Function Control

Manual/Automation. When turn button is turned to Manual, if carriers are needed to be moved, lift or lower key shall be pressed, if the key is off, the movement stop. When the turn button is turned to Automation, if carriers are needed to be moved, lift or lower key shall be directly pressed.



VII Travel Adjustment

There are two screws on the back side of the vertical column, loose the screw by standard Hex Wrench and adjust to proper position, and control slide block, then requirement is met.



VIII Usage of Counter

The upper of counter is digital display for recording test times, there are 4 pre-set buttons in the lower part, they are single-digit, ten-digit, hundred-digit and thousand-digit, which mean the pre-set scope is within 0~9999. E.g.: user continuously test some product, the test times is 9999, therefore it is needed to adjust the 4 buttons to display 9999, and press Manual/Automation button, thus 9999 times can be tested, then they stop automatically after the 9999 times is accomplished. If the test is necessary to be implemented, press Stop button.
