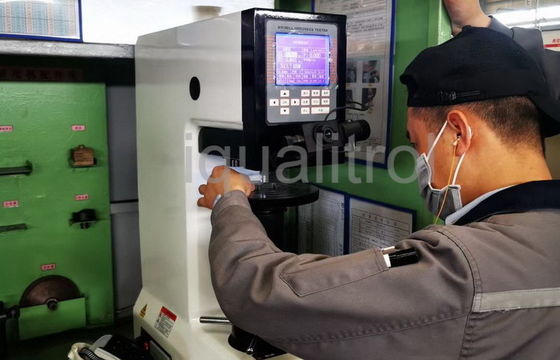

Touch Screen Computerized Digital Brinell Hardness Tester with Force Compensation

Touch Screen Computerized Digital Brinell Hardness Tester with Force Compensation
Touch Screen Computerized Digital Brinell Hardness Tester with Force Compensation Touch Screen Computerized Digital Brinell Hardness Tester with Force Compensation Touch Screen Computerized Digital Brinell Hardness Tester with Force Compensation Touch Screen Computerized Digital Brinell Hardness Tester with Force Compensation Touch Screen Computerized Digital Brinell Hardness Tester with Force Compensation

Large Image :  Touch Screen Computerized Digital Brinell Hardness Tester with Force Compensation

Product Details:
Place of Origin: Dongguan/China
Brand Name: iqualitrol
Certification: EN ISO 6506, CE
Model Number: HBST-3000
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Plywood Case
Delivery Time: 10 Working Days
Payment Terms: T/T
Supply Ability: 20 Sets per Month
Detailed Product Description
Display: 5.6" Touch Screen Turret: Automatic Among Lens And Indenter
Data: Built-in Printer, RS232 Calibration: Built-in Calibration, Error Setting
Vertical Space: 220mm Magnification: 20X
High Light:

Computerized Digital Brinell Hardness Tester

,

Digital Brinell Hardness Tester Machine



Touch Screen Computerized Digital Brinell Hardness Tester with Force Compensation



Model: HBST-3000



Technical Data Download: iqualitrol Touch Brinell Hardness Tester HBST-3000



iqualitrol HBST-3000 adopts precise structure design and the load of test force is controlled by the sensor, which makes the whole structure compact and loading of test force stable and exact.



All the parameters can be showed and set on the 5.6” touch screen with easy operation. The test process is controlled by CPU, using automatic switching between the objective and the indenter.



The location of switching adopts mechanical and electronic double matching, makes the location precision more high. The instrument has 10 steps test force and 13 kinds of Brinell testing scale for arbitrary selection; automatically recognize and shift between objectives and indenter;



Pre-set the dwell time of test force and regulate the luminosity of light source; Automatically display the testing indentation length, hardness value and testing numbers; Conversion scales of different kinds of hardness;



Test results can be saved for checking or be printed out by the built-in printer, and with RS232 interface for connecting to the computer.



Available to install optional video measuring device and CCD image automatic measuring system.



Highlighted Features:

1, Equips with digital eyepiece and precise computer system, just touch once can get hardness result;

2, With built-in calibration functions, support set error range;



3, Lightness adjust range 0-100;

4, Available save 100 groups measuring data;



5, Main interface can show 4 valid hardness conversion value, support standards switch among GB, ASTM, ISO;



6, with built-in printer, and internet connection to transfer data and save;

7, Self-designed optical system, image clarity, brightness adjustable, long-term operation should not be fatigue;



Main Applications:

1,suitable for hardness tester with large grain metal materials, can reflect the comprehensive performance of the material;



2, cast iron, steel, non-ferrous metals, especially for softer metals, such as pure aluminum, lead, tin, etc.



3, can be used for hard plastic, bakelite and other non-metallic material hardness tester.



Technical Specifications:

Model HBST-3000
Scales HBW2.5/62.5, HBW2.5/187.5, HBW5/62.5, HBW5/125, HBW5/250, HBW5/750, HBW10/100, HBW10/250, HBW10/500, HBW10/1000, HBW10/1500, HBW10/3000
Test Force 62.5kgf(612.9N), 100kgf(980.7N), 125kgf(1226N), 187.5kgf(1839N), 250kgf(2452N), 500kgf(4903N), 750kgf(7355N), 1000kgf(8907N), 1500kgf(14710N), 3000kgf(29420N)
Loading Control Automatic (Loading/Dwell/Unloading)
Vertical Space 220mm
Horizontal Space 135mm
Indenter to Upper Wall 55mm, support customized
Resolution 0.125um
Dwell Time 0~60s
Hardness Range 8~650HBW
Magnification 20X
Execute Standards EN ISO 6506, ASTM E-384, ASTM E-10-08, ASTM E-384 GB/T231.2, JJG150
Hardness Reading Automatic Calculation and display
Data Output Built-in Printer, USB
Power Supply AC220+5%,50~60Hz
Dimension 520*210*745mm
Net Weight 150Kg


Standard Delivery:

Digital Eyepiece 1 Set Indenter 2.5mm, 5mm, 10mm Each one piece
Test Block 3 Pieces Test Anvil big and “V” Each one piece
Power cable 1 Piece Quality certificate, Manual Each one copy
Fuse 2 Pieces Printing paper 1 piece
Level 1 Piece Anti-dust Cover 1 piece


non-fumigation transport package:
