Visual Inspection 3.5" LCD Monitor Industrial Videoscope with Compact Design and Light Weight

China Visual Inspection 3.5" LCD Monitor Industrial Videoscope with Compact Design and Light Weight supplier
Visual Inspection 3.5" LCD Monitor Industrial Videoscope with Compact Design and Light Weight supplier Visual Inspection 3.5" LCD Monitor Industrial Videoscope with Compact Design and Light Weight supplier Visual Inspection 3.5" LCD Monitor Industrial Videoscope with Compact Design and Light Weight supplier Visual Inspection 3.5" LCD Monitor Industrial Videoscope with Compact Design and Light Weight supplier

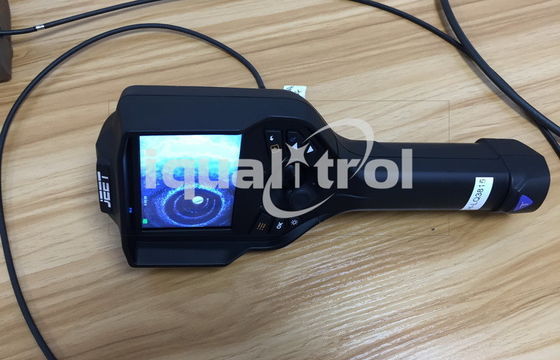

Large Image :  Visual Inspection 3.5" LCD Monitor Industrial Videoscope with Compact Design and Light Weight

Product Details:

Place of Origin: DONGGUAN
Brand Name: iqualitrol
Certification: CE
Model Number: i35-6050F

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Carton box
Delivery Time: 3 Working Days
Payment Terms: T/T
Supply Ability: 100 sets per month
Contact Now
Detailed Product Description
Features: Simple Operation, Proven Durability View: 0.45Mega Pixel Camera Front View
IR Function: IR/IR Thermal Imaging (optional) Inspection: Pharmaceutical Machinery, Non-destructive Testing
DOV: Direction Of View (DOV) 10-100mm Articulated Tip: 360° All-way Articulation
High Light:

non destructive testing machine

,

portable surface roughness tester


Visual Inspection 3.5" LCD Monitor Industrial Videoscope with Compact Design and Light Weight

Model: i35-6050F



Brief Introduction:

iqualitrol Videoscope systems with exceptional functionality, simple operation, and proven durability. Industrial borescopes feature a high-resolution image sensor positioned at the objective end, and matched to our precision lenses to deliver bright, colour-rich images. Advanced LED or laser diode illuminations provide optimum brightness to the inspection area.



The compact and lightweight videoscopes achieve high quality inspections at any site, featuring versatile functionality and proven reliability under demanding circumstances.



The videoscopes are classified according to the following important specifications: presence of articulation, diameter of probe, working length, field of view (FOV), direction of view (DOV) and minimal focus distance.



Articulation is a feature of tip bending with the help of a knob or a ring. The diameter of probe is usually between 4-10 mm. The working length is the length of the probe. The field of view is the viewing area. It is a measure of how much of the visual field is taken up by the image. The direction of view is the direction the axis of view. The minimal focus distance for the borescope is the minimum effective focusing distance.

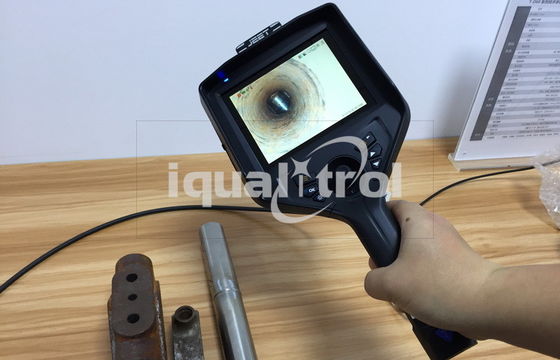

   Visual Inspection 3.5" LCD Monitor Industrial Videoscope with Compact Design and Light Weight



Application:

iqualitrol videoscopes are widely used in the fields of automotive manufacturing, car aftermarket, police security checking, aviation and aerospace area, special inspection institute, pharmaceutical machinery, non-destructive testing explosion-proof detection, ect.



Aerospace:

airframe examinations, inspection of turbine blades and combustion chambers, and research, development and production of rocket engines.



Power Generation

Maintenance of heat exchanger pipes, condensers, piping and turbines in nuclear and thermal power Generation plants, and gearboxes of wind power generation facilities.



Oil/gas/chemical plants

Routine and urgent inspection of process piping, pressured storage reservoirs, heat exchangers, boilers, etc.



Automotive:

Quality control examination of engines, hydraulic components, injection nozzles, as well as final inspection of assembles;



Defense/security

Maintenance of military aircraft, as well as for detection of narcotics and other contraband items, and search of victims who may be trapped as the result of various disasters;

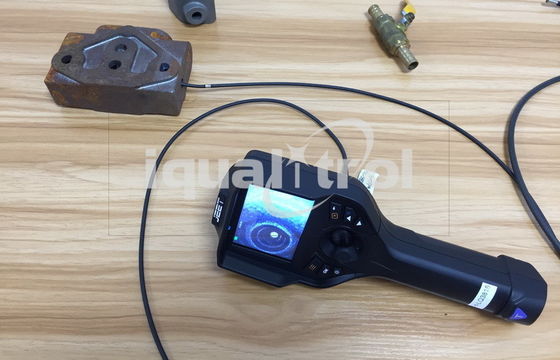

   Visual Inspection 3.5" LCD Monitor Industrial Videoscope with Compact Design and Light Weight


Operation Environment:

Host Working Temperature -20°C~50°C, when 0°C below, the display needs preheating.
Camera Working Temperature -20°C~80°C, when 0°C below, please reduce oriented operation.
Store Temperature -23°C~63°C
Relative Humidity Maximum: 92%, non-condensing



   Visual Inspection 3.5" LCD Monitor Industrial Videoscope with Compact Design and Light Weight


Technical Specifications:

Camera Diameter Φ6mm
Camera Material Titanium alloy
Camera Pixel Mega Pixel
Depth of Field 20mm~150mm / 10-100mm
Angle of Field 120°
Illumination Maximum 30,000lx
Bright/Chroma/Contrast Ratio Adjustment Manual, bright: six levels, chroma and contrast ratio: manual adjusting
Articulation 360° all-way articulation
Bending Angle ≥180°
Effective Working Length 2m
Insert Tube tungsten-braided

Protecting Device of
Durability

Buffer protection device between the host and wear-resistant tube
Display Highlight 3.5 inches TFT LCD, can be replaceable for 5.7 inches display
Display Resolution 1280*720
Image Resolution 1280*720
Video Resolution 1280*720
Image/Video Format JPEG/MOV
WIFI Function WIFI(optional)
IR Function IR/IR thermal imaging(optional)
Memory Standard TF card:8G, Maximum: 32G
Language Chinese, English, Russian… 8 languages
Data I/O port Micro-USB port,HDMI port
Waterproof Camera/Object glass/Tubes:IP67
Working Time ≥8 hours
Weight ≤0.55kg(with batteries)
Power Supply Rechargeable lithium battery(or built-in battery)
Battery Capacity 3.7V 3200mAh
Power Consumption 2W
Charging Parameters DC5V, Maximum current:1A

Models of iqualitrol Video Borescopes:
View Direction Model Main Specifications
iT51X
6mm Front view
iT51X-6015 Tube diameter 6mm;Intelligent System; One mega pixels;Tube Length 1.5 meters;360° articulation;5.1'' display
iT51X-6020 Tube diameter 6mm;Intelligent System; One mega pixels;Tube Length 2.0 meters;360° articulation;5.1'' display
iT51X
6mm Side view
iT51X-6015S Tube diameter 6mm;Intelligent System; One mega pixels;Tube Length 1.5 meters;360° articulation;5.1'' display
iT51X-6020S Tube diameter 6mm;Intelligent System; One mega pixels;Tube Length 2.0 meters;360° articulation;5.1'' display
iT51X
6mm Dual Lens
iT51X-6015D Tube diameter 6mm;Intelligent System; One mega pixels;Tube Length 1.5 meters;360° articulation;5.1'' display
iT51X-6020D Tube diameter 6mm;Intelligent System; One mega pixels;Tube Length 2.0 meters;360° articulation;5.1'' display
iT51X
3.8mm Front view
iT51X-3810S Tube diameter 3.8mm;Intelligent System; One mega pixels;Tube Length 1.0 meter;360° articulation;5.1'' display
iT51X-3815S Tube diameter 3.8mm;Intelligent System; One mega pixels;Tube Length 1.5 meters;360° articulation;5.1'' display
iT51X
3.8mm Side view
iT51X-3810S Tube diameter 3.8mm;Intelligent System; One mega pixels;Tube Length 1.0 meter;360° articulation;5.1'' display
iT51X-3815S Tube diameter 3.8mm;Intelligent System; One mega pixels;Tube Length 1.5 meters;360° articulation;5.1'' display
iT51X
2.8mm Front view
iT51X-2810 Tube diameter 2.8mm;Intelligent System; 300,000 pixels;Tube Length 1.0 meters;360° articulation;5.1'' display
iT51X-2815 Tube diameter 2.8mm;Intelligent System; 300,000 pixels;Tube Length 1.5 meters;360° articulation;5.1'' display
iT51X
2.4mm Front view
iT51X-2410 Tube diameter 2.4mm;Intelligent System; 450,000 pixels;Tube Length 1.0 meter;360° articulation;5.1'' display
iT51X-2415 Tube diameter 2.4mm;Intelligent System; 450,000 pixels;Tube Length 1.5 meters;360° articulation;5.1'' display
iT51X
2.2mm Front view
iT51X-2210 Tube diameter 2.2mm;Intelligent System; 160,000 pixels;Tube Length 1.0 meter;2-way articulation;5.1'' display
