Ultra HD All-way Articulation Industrial Video Borescope with Intelligent Image Processing System

China Ultra HD All-way Articulation Industrial Video Borescope with Intelligent Image Processing System supplier
Ultra HD All-way Articulation Industrial Video Borescope with Intelligent Image Processing System supplier Ultra HD All-way Articulation Industrial Video Borescope with Intelligent Image Processing System supplier Ultra HD All-way Articulation Industrial Video Borescope with Intelligent Image Processing System supplier Ultra HD All-way Articulation Industrial Video Borescope with Intelligent Image Processing System supplier

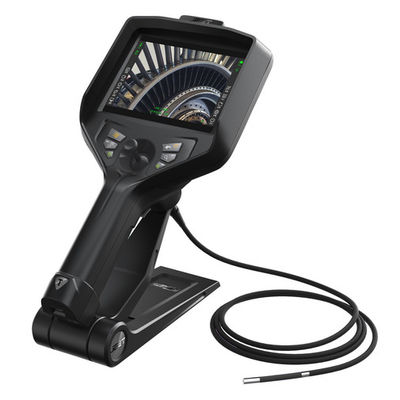

Large Image :  Ultra HD All-way Articulation Industrial Video Borescope with Intelligent Image Processing System

Product Details:

Place of Origin: DONGGUAN
Brand Name: iqualitrol
Certification: CE
Model Number: i35-6030HF

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Carton box
Delivery Time: 3 Working Days
Payment Terms: T/T
Supply Ability: 100 sets per month
Contact Now
Detailed Product Description
Tube: Diameter 6mm Camera: Megapixel Camera
Monitor: 3.5", Optional 5.7" Image Resolution: 1280×720
Field Angle: 90°/120° IP Level: Probe/tube: IP67



Ultra HD All-way Articulation Industrial Video Borescope with Intelligent Image Processing System



Brief Introduction:

Flexible Videoscope or iqualitrol Video Borescope is an advanced type of borescope that houses a very small image sensor embedded into the tip of the scope.



The video image is relayed from the distal tip and focusable lens assembly back to the display via internal wiring. This is unlike a traditional rigid borescope and flexible fiberscope. The image quality of a videoscope is superior to that of a fiberscope and can be compared to that of an intermediate camcorder.



Model Selection of Front View Megapixel Industrial Video Borescope:

View Direction Model Main Specifications
iT51X
6mm Front view
iT51X-6015 Tube diameter 6mm;Intelligent System; One mega pixels;Tube Length 1.5 meters;360° articulation;5.1'' display
iT51X-6020 Tube diameter 6mm;Intelligent System; One mega pixels;Tube Length 2.0 meters;360° articulation;5.1'' display
iT51X
6mm Side view
iT51X-6015S Tube diameter 6mm;Intelligent System; One mega pixels;Tube Length 1.5 meters;360° articulation;5.1'' display
iT51X-6020S Tube diameter 6mm;Intelligent System; One mega pixels;Tube Length 2.0 meters;360° articulation;5.1'' display
iT51X
6mm Dual Lens
iT51X-6015D Tube diameter 6mm;Intelligent System; One mega pixels;Tube Length 1.5 meters;360° articulation;5.1'' display
iT51X-6020D Tube diameter 6mm;Intelligent System; One mega pixels;Tube Length 2.0 meters;360° articulation;5.1'' display
iT51X
3.8mm Front view
iT51X-3810S Tube diameter 3.8mm;Intelligent System; One mega pixels;Tube Length 1.0 meter;360° articulation;5.1'' display
iT51X-3815S Tube diameter 3.8mm;Intelligent System; One mega pixels;Tube Length 1.5 meters;360° articulation;5.1'' display
iT51X
3.8mm Side view
iT51X-3810S Tube diameter 3.8mm;Intelligent System; One mega pixels;Tube Length 1.0 meter;360° articulation;5.1'' display
iT51X-3815S Tube diameter 3.8mm;Intelligent System; One mega pixels;Tube Length 1.5 meters;360° articulation;5.1'' display
iT51X
2.8mm Front view
iT51X-2810 Tube diameter 2.8mm;Intelligent System; 300,000 pixels;Tube Length 1.0 meters;360° articulation;5.1'' display
iT51X-2815 Tube diameter 2.8mm;Intelligent System; 300,000 pixels;Tube Length 1.5 meters;360° articulation;5.1'' display
iT51X
2.4mm Front view
iT51X-2410 Tube diameter 2.4mm;Intelligent System; 450,000 pixels;Tube Length 1.0 meter;360° articulation;5.1'' display
iT51X-2415 Tube diameter 2.4mm;Intelligent System; 450,000 pixels;Tube Length 1.5 meters;360° articulation;5.1'' display
iT51X
2.2mm Front view
iT51X-2210 Tube diameter 2.2mm;Intelligent System; 160,000 pixels;Tube Length 1.0 meter;2-way articulation;5.1'' display



Application:

iqualitrol videoscopes are widely used in the fields of automotive manufacturing, car aftermarket, police security checking, aviation and aerospace area, special inspection institute, pharmaceutical machinery, non-destructive testing explosion-proof detection, ect.

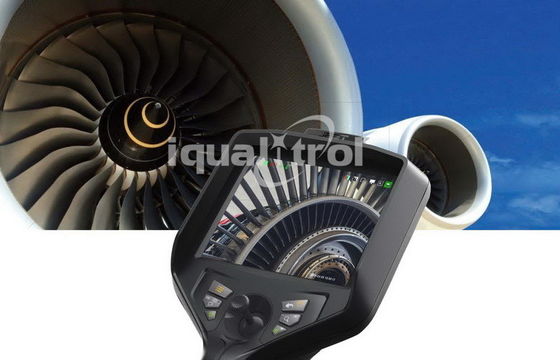

iqualitrol video borescope was used in the field of aerospace,  airframe examinations, on site inspection of turbine blades and combustion chambers, and research, development and production of rocket engines.



Ultra HD All-way Articulation Industrial Video Borescope with Intelligent Image Processing System



Features:

1, The latest videoscope is module designed. The monitor and probe can be separated by one button. It is compatible with different diameter tube like: 2.0mm/2.2mm/2.8mm/3.9mm/6mm, as well as 3.9mm&6mm sideview tubes and 6mm dual lens tube.



Ultra HD All-way Articulation Industrial Video Borescope with Intelligent Image Processing System



Tube System:

Probe Diameter Φ2.2/Φ2.4/Φ2.8mm Φ3.9/Φ6mm
Camera Pixels 300,000 1,000,000
Image Resolution 640×480   1280×720
Video Resolution 640×480  1280×720
DOF 3 mm-50mm/5 mm-80mm 10mm-100mm/5 mm-80mm/50 mm-∞
Field Angle 90°/120°
Light Source Front ceramic light/ Rear-mounted optic fiber cold
Illuminance Maximum: 100000+Lx 1~9 levels adjustable light
Tube Length 1.5m/3.0m/5.0m/30m (customized for other length)
Protecting Device of Durability 42mm buffer protection device between tube and handle
Articulation 360° all-way
Bending Angle Maximun:190°
Probe Positioning Damping positioning & articulation lock device
Wi-Fi Transmission Image transmission to Mobile phone, computer by Wi-Fi(optional)



Monitor System:

Display 3.5” or 5.1" color IPS display, all sight viewing angle, sunshade design
Display Resolution 1280*960
Zoom In/Out 8X
Language Chinese/English/Russian and other 8 languages
White Balance Suppression 5 levels adjustable
White Balance Auto white balance, automatically adjusts and eliminates speckles to achieve optimal images.
Image Effect negative film/ black & white/standard
Temperature Indication High temperature alarm
IP Level Probe/tube: IP67
Software Function Playback, image parameters adjust and rotate
Structure Hand-held integrated design
Image/video format JPEG/MOV
Scale The analog scale can be used to compare and analyze the internal defect and size of the inspected object.
Data Port HDMI video output, Micro USB port with water &dust proof device
Working Time ≥8h
Battery Capacity 3.7V,3200mAh×2
Power Charge DC5V, 1A
Weight ≤0.8Kg
Compatibility Interchangeable monitor and tube with different diameters

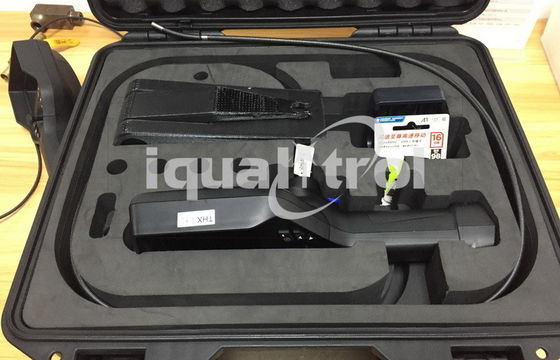

Standard Configuration Instrument case:1pc; videoscope: 1 set; battery: 2pcs; card reader: 1pc; 32G. TF card: 1pc; charger: 1pc; usb line: 1pc; user manual & certificate: 1 set
