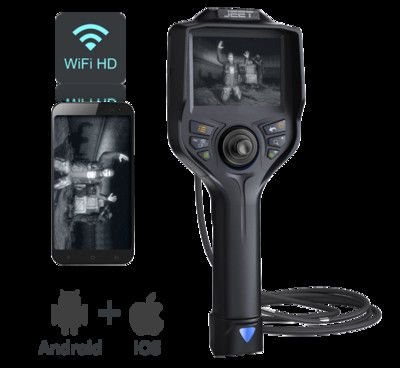

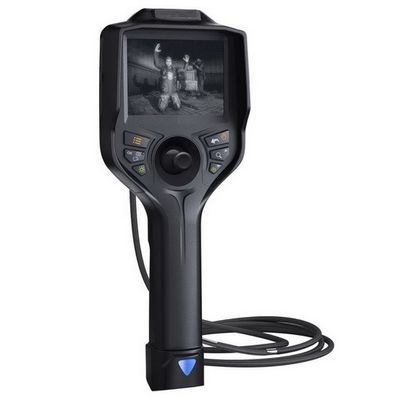

Infrared Security Video Borescope with Auto White Balance Support 18 Meters Night Vision

China Infrared Security Video Borescope with Auto White Balance Support 18 Meters Night Vision supplier
Infrared Security Video Borescope with Auto White Balance Support 18 Meters Night Vision supplier Infrared Security Video Borescope with Auto White Balance Support 18 Meters Night Vision supplier Infrared Security Video Borescope with Auto White Balance Support 18 Meters Night Vision supplier Infrared Security Video Borescope with Auto White Balance Support 18 Meters Night Vision supplier

Large Image :  Infrared Security Video Borescope with Auto White Balance Support 18 Meters Night Vision

Product Details:

Place of Origin: DONGGUAN
Brand Name: iqualitrol
Certification: CE
Model Number: i35-6040F

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Plywood Box
Delivery Time: 3 Working Days
Payment Terms: T/T
Supply Ability: 10 Sets per Month
Contact Now
Detailed Product Description
Tube Dia: Φ2.2, Φ2.4, Φ2.8mm DOF: 3mm-50mm/5mm-80mm
Articulation: 360° All-way Structure: Hand-held Integrated Design
Zoom: Support 8X Zoom In/out Design: Monitor And Tube Is Separated By One Button



Infrared Security Video Borescope with Auto White Balance Support 18 Meters Night Vision



Brief Introduction:

iqualitrol Infrared Security Video Borescope, mainly used in the field of defense and security department, like maintenance of military aircraft, as well as for detection of narcotics and other contraband items, and search of victims who may be trapped as the result of various disasters;



iqualitrol remote visual inspection videoscopes systems are designed to meet the demands of the modern industrial inspection environment. They offer portable and intelligent remote imaging solutions with a host of advanced, yet intuitive features, making them ideal remote visual inspection instruments.



A wider range of videoscope, fiberscopes and borescopes with various diameters and viewing options are available, making our videoscopes systems the most versatile inspection system suitable for a multitude of inspection requirements.



Tube System:

Probe Diameter Φ2.2/Φ2.4/Φ2.8mm Φ3.9/Φ6mm
Camera Pixels 300,000 1,000,000
Image Resolution 640×480 1280×720
Video Resolution 640×480 1280×720
DOF 3 mm-50mm/5 mm-80mm 10mm-100mm/5 mm-80mm/50 mm-∞
Field Angle 90°/120°
Light Source Front ceramic light/ Rear-mounted optic fiber cold
Illuminance Maximum: 100000+Lx 1~9 levels adjustable light
Tube Length 1.5m/3.0m/5.0m/30m (customized for other length)
Protecting Device of Durability 42mm buffer protection device between tube and handle
Articulation 360° all-way
Bending Angle Maximun:190°
Probe Positioning Damping positioning & articulation lock device
Wi-Fi Transmission Image transmission to Mobile phone, computer by Wi-Fi(optional)





Monitor System:

Display 3.5” or 5.1" color IPS display, all sight viewing angle, sunshade design
Display Resolution 1280*960
Zoom In/Out 8X
Language Chinese/English/Russian and other 8 languages
White Balance Suppression 5 levels adjustable
White Balance Auto white balance, automatically adjusts and eliminates speckles to achieve optimal images.
Image Effect negative film/ black & white/standard
Temperature Indication High temperature alarm
IP Level Probe/tube: IP67
Software Function Playback, image parameters adjust and rotate
Structure Hand-held integrated design
Image/video format JPEG/MOV
Scale The analog scale can be used to compare and analyze the internal defect and size of the inspected object.
Data Port HDMI video output, Micro USB port with water &dust proof device
Working Time ≥8h
Battery Capacity 3.7V,3200mAh×2
Power Charge DC5V, 1A
Weight ≤0.8Kg
Compatibility Interchangeable monitor and tube with different diameters

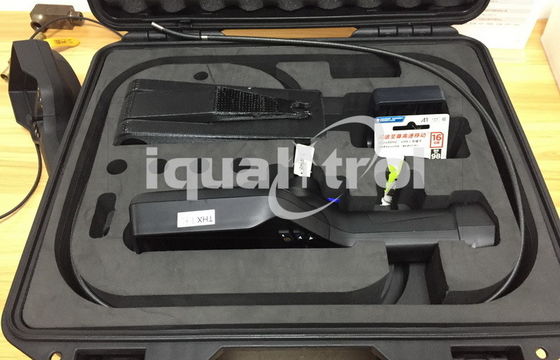

Standard Configuration Instrument case:1pc; videoscope: 1 set; battery: 2pcs; card reader: 1pc; 32G. TF card: 1pc; charger: 1pc; usb line: 1pc; user manual & certificate: 1 set



Model Selection of iqualitrol Police Videoscope:

Police Videoscope Model Main Specifications
iTJ
6mm IR and White light Videoscope
iTJ-6015IB Tube Diameter 6mm;450,000 pixels;IR and White light;           Tube Length 1.5 meters;360° articulation;3.5'' display
iTJ-LIQ6020IB Tube Diameter 6mm;450,000 pixels;IR and White light;           Tube Length 2.0 meters;360° articulation;3.5'' display
iTJ
6mm IR LED Videoscope
iTJ-6015I Tube Diameter 6mm;450,000 pixels;IR LED light;                    Tube Length 1.5 meters;360° articulation;3.5'' display
iTJ-6020I Tube Diameter 6mm;450,000 pixels;IR LED light;                    Tube Length 2.0 meters;360° articulation;3.5'' display
iTJ
6mm IR Optic Fiber Videoscope
iTJ-LI6015IF Tube Diameter 6mm;450,000 pixels;IR Optic fiber;                  Tube Length 1.5 meters;360° articulation;3.5'' display
iTJ-LI6020IF Tube Diameter 6mm;450,000 pixels;IR Optic fiber;                  Tube Length 2.0 meters;360° articulation;3.5'' display



Features:

1, High temperature alarm; HDMI port to transfer large LCD.

Infrared Security Video Borescope with Auto White Balance Support 18 Meters Night Vision

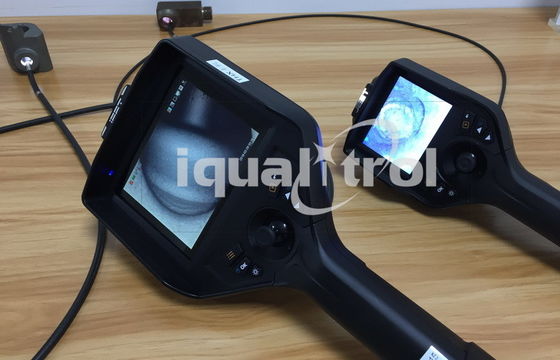

2, Multiple diameters insert tube for selection.

Infrared Security Video Borescope with Auto White Balance Support 18 Meters Night Vision
