Cut Diameter 50mm Easy Operation Manual Metallographic Cutting Machine for Lab Using

Cut Diameter 50mm Easy Operation Manual Metallographic Cutting Machine for Lab Using
Cut Diameter 50mm Easy Operation Manual Metallographic Cutting Machine for Lab Using Cut Diameter 50mm Easy Operation Manual Metallographic Cutting Machine for Lab Using Cut Diameter 50mm Easy Operation Manual Metallographic Cutting Machine for Lab Using Cut Diameter 50mm Easy Operation Manual Metallographic Cutting Machine for Lab Using

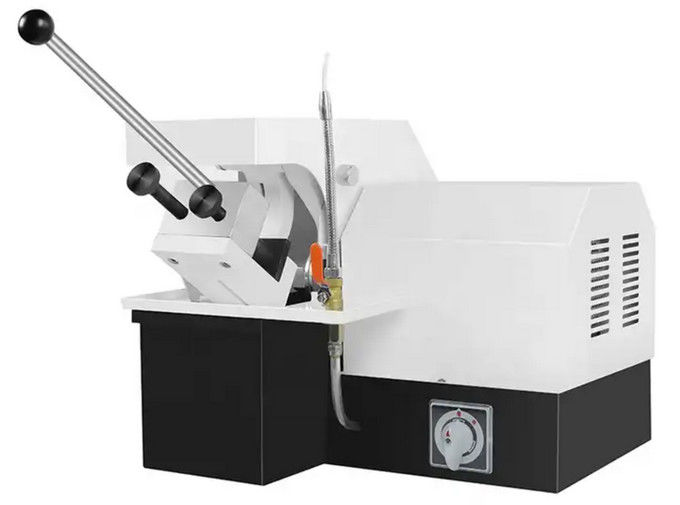

Large Image :  Cut Diameter 50mm Easy Operation Manual Metallographic Cutting Machine for Lab Using

Product Details:
Place of Origin: Dongguan/China
Brand Name: iqualitrol
Certification: CE
Model Number: Q-2A
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Plywood Box
Delivery Time: 20 Working Days
Payment Terms: T/T
Supply Ability: 50 Sets per Month
Detailed Product Description
Model: Q-2A Cutting Disc: 300x2x32mm
Max Section: 50x50mm Power: 2.2KW
Voltage: AC380V/50HZ/3Ph Cut Mode: Manual Cutting
High Light:

specimen cutting machine

,

abrasive cutting machine



Cut Diameter 50mm Easy Operation Manual Metallographic Cutting Machine for Lab Using



Brief Introduction:

iqualitrol Q-2A can be used to cut various metal or non-metal specimens (select different cutting disc according to different materials) so as to observe the metallographic and lithofacies structure.



Q-2A features high performance, low noise and high finish of specimen cutting sections. It has nice appearance and is easy to operate safely and reliably, an ideal and necessary specimen preparation instrument used in factories, scientific research institutes and colleges, etc.



Technical Parameters:

Model Q-2A
Input voltage AC380V/50HZ/2Ph
Wheel speed 2800r/min
Cutting wheel size Φ300x2x32mm
MAX cutting section 50x50mm
Motor 2.2KW
Dimension 650x500x400mm
Net weight 70kg



Cut Diameter 50mm Easy Operation Manual Metallographic Cutting Machine for Lab Using 0



Metallographic cutting machines using grinding wheels can select different cutting machines according to the size of the workpiece and processing technology.



The precision cutting machine is fully certified with CE, making it safer for users to operate. The use of strengthened safety glass provides a clearer and safer view, and the use of high-brightness LED lights in the cutting room allows for clear visibility of all parts.



The clamps used for cutting include quick clamps (with a clamping force of over 200 kg) and threaded clamps for holding various types of irregularly shaped samples, and clamping fixtures can be designed for specific workpieces.



The feed platform uses a clutch component that can quickly switch between manual and automatic feed modes. The cooling water hose used for cutting can be easily adjusted to achieve the most efficient cooling effect, and the circulating cooling water tank can be built-in or externally connected. A switch can be used to switch between the cooling water route inside the cutting room and the external cleaning water hose for easier and more convenient cleaning.



An optional intelligent feeding function makes it more convenient to cut large workpieces, and a magnetic filter box can be selected for use to make the cooling water tank more convenient to use.
