Product Details:
Payment & Shipping Terms:
|
| Model: | ICut-460Z | Cut Mode: | High Precision, Bench-top Automatic Cutting Machine |
|---|---|---|---|
| Application: | Non-deforming Materials Cutting Such As Metal, Electronic Parts, Ceramic, Hard Alloys | Cut Disc: | Both Diamond And Resin Cutting Discs Can Be Used |
| Controller: | Equipped With A LCD Display With Menu Operation | Fixture: | Cutting Table Provided With T-slots To Assemble Different Vices |
| High Light: | Automatic Precision Cutting Machine,Recirculating Cooling Precision Cutting Machine,60mm Section Metallographic Cutting Machine |
||

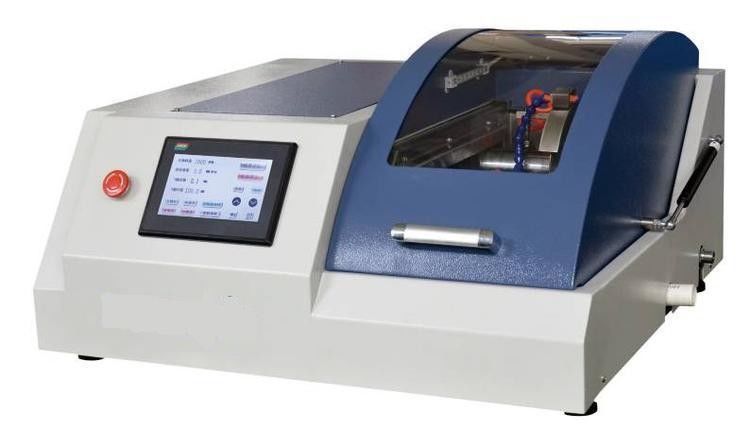

Automatic precision cutting machine with max section 60mm iCut-460Z
Recirculating Cooling Automatic Precision Cutting Machine With Max Section 60mm ICut-460Z
Technical Data Download: iqualitrol Automatic precision cutting machine iCut-460Z
Introduction:
Automatic precision cutting machine iqualitrol iCut-460Z is controlled by single chip, which is suitable for precise deformable cutting of metals, electronic components, ceramic materials, crystals, cemented carbides, rocks, minerals, concrete, organic materials, biological materials (teeth, bones) and other materials.
iqualitrol iCut-460Z cuts along Y axis which has high accuracy of positioning, wide range of speed regulating and strong cutting ability with the touch screen control and display.
The cutting chamber adopts totally enclosed structure with safety limit switch and transparent window for observation. With the circulation cooling system, the surface of the cut sample is bright and smooth without burns. It is the classic selection of benchtop automatic cutting machine.
Features:
1, High precision, bench-top automatic cutting machine;
2, Suitable for non-deforming materials cutting such as metal, electronic parts, ceramic, hard alloys;
3, High cutting accuracy and wide speed adjusting range;
4, Both diamond and resin cutting discs can be used;
5, Equipped with a LCD display with menu operation, large cutting chamber and safety protections;

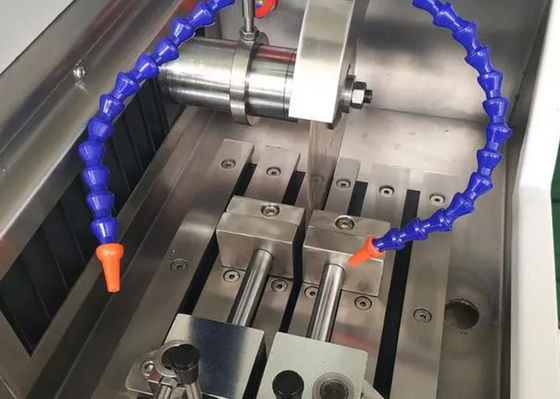

6, Cutting table provided with T-slots to assemble different vices;
7, Built-in recirculating cooling system with external magnetic separator.
Technical Parameters:
| Model | iCut-460Z |
| Cutting Method | Automatic, Spindle feeding along Y axis |
| Feed Speed | 0.7-36mm/min (Step 0.1mm/min) |
| Cut-off Wheel | Φ230×1.2×Φ32mm |
| Max. Cutting Capacity | Φ 60mm |
| Y axis Travel | 200mm |
| Spindle Span | 125mm |
| Spindle Speed | 500-3000rpm |
| Electromotor Power | 1300W |
| Cutting Table | 320×225mm, T-slot 12mm |
| Clamping Tool | Quick clamp, Jaw height 45mm |
| Control and Display | 7 inch touch screen |
| Power Supply | 220V, 50Hz, 10A (380V optional) |
| Dimensions | 850×770×460mm |
| Net Weight | 140kg |
| Water Tank Capacity | 36L |
| Pump Flow | 12L/min |
| Water Tank Dimensions | 300×500×450mm |
| Water Tank Weight | 20kg |
Packing List:
| Name | Specification | Qty |
| Machine Body | 1 set | |
| Water Tank | 1 set | |
| Cut-off Wheel |
Φ230×1.2×Φ32mm |
2 pcs |
| Cutting Fluid | 3kg | 1 bottle |
| Spanner | 14×17mm,17×19mm | each 1 pc |
| Inner Hexagon Spanner | 6mm | 1 pc |
| Water Inlet Pipe | 1 pc | |
| Water Outlet Pipe | 1 pc | |
| Usage Instruction Manual | 1 copy |
