Product Details:
Payment & Shipping Terms:
|
| Model: | ThetaMount | Pressure: | Maximum Pressure Of 2 Bar |
|---|---|---|---|
| Feature: | High Sample Making Efficiency And Good Quality | Environmentally Friendly: | No Unpleasant Smell During The Polymerization |
| High Light: | Compact Pressure Metallographic Cold Mounting Machine,Metallographic Cold Mounting Machine,Metallographic Mounting Press Without Air Bubbles |
||

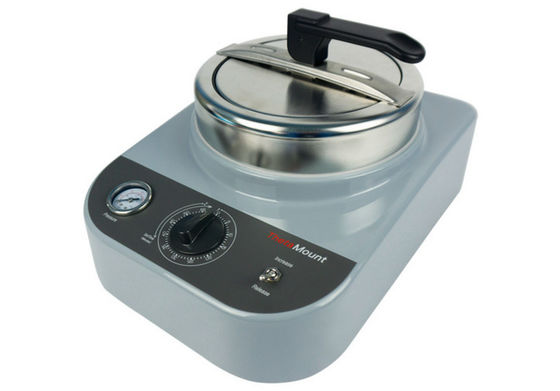

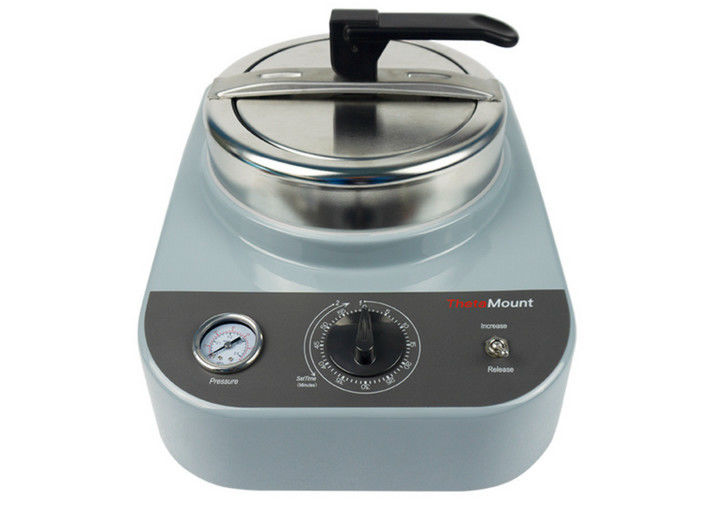

Compact pressure Metallographic Cold Mounting Machine without air bubbles
Brief Introduction:
ThetaMount cold Press is designed with compact pressure technology. It can reach a maximum pressure of 2 bar, ensures that cold inlay patterns are free of air bubbles during the curing process.

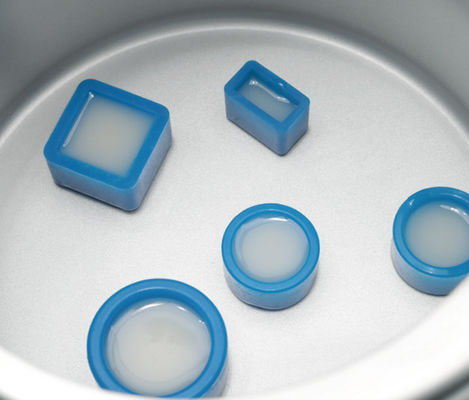

This machine ensures rapid curing of the cold mounting resin without affecting the physical and chemical properties of the cold mounting resin and curing agent mixture. So it can be used for rapid curing of all cold mounting resins (Especially for TJ-2210 acrylic resin) and making high quality specimens.
Features:
Compact pressure design, fast ramping;
Cured without air bubbles;
No affection on the physical and chemical properties of the resin and curing agent
No unpleasant smell during the polymerization;
High sample making efficiency and good quality;
Timed buzzer function.
Technical Parameters:
| Model | ThetaMount |
| Operating Pressure | 2.0 bar |
| Safety Valve Overflow Pressure | 2.8～3.3bar |
| Chamber Diameter | Φ235x170mm |
| Dimension W*D*H | 308×415×289mm (Close) 308×415×342mm(Open) |
| Weight | 8.5 Kg |
