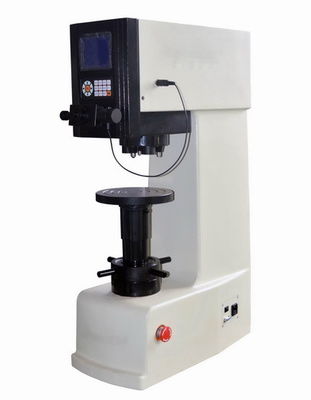

1.25μm 0.625μm Motorized Turret Digital Brinell Hardness Testing Machine With Built In Printer

1.25μm 0.625μm Motorized Turret Digital Brinell Hardness Testing Machine With Built In Printer
1.25μm 0.625μm Motorized Turret Digital Brinell Hardness Testing Machine With Built In Printer

Large Image :  1.25μm 0.625μm Motorized Turret Digital Brinell Hardness Testing Machine With Built In Printer

Product Details:
Place of Origin: Dongguan/China
Brand Name: iqualitrol
Certification: CE
Model Number: iBrin-413Z
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Plywood Box
Delivery Time: 30 Working Days
Payment Terms: Western Union, T/T
Supply Ability: 20 Sets per Month
Detailed Product Description
Range: 3.18 - 653HBW Reading: LCD Display
Data Output: Built-in Printer, RS232 Interface Objective: 1X, 2X
Printing: Built-in Mini Printer Data Transfer: Support RS232
High Light:

1.25μm Brinell Hardness Testing Machine

,

0.625μm Brinell Hardness Testing Machine

,

Brinell Hardness Test Equipment



Motorized Turret Digital Brinell Hardness Testing Machine with Built-in Printer and RS232



Brief Introduction:



Technical Data Download: iqualitrol Brinell Hardness Tester iBrin-413Z



iqualitrol iBrin-413Z three indenters two objectives digital Brinell hardness tester adopts precise structure design and the load of test force is controlled by the sensor, which makes the whole structure compact and loading of test force stable and accurate.

The test process is controlled by CPU, using automatic turret between the objectives and the indenters. The positioning of turret adopts mechanical and electronic double matching, makes higher precise positioning.

Features:
1, 10 steps loading force and 13 kinds of Brinell testing scale;

2, Motorized turret among three indenters and two objectives;

3, Pre-set the dwell time of test force and regulate the luminosity of light source;

4, Automatically display the testing indentation length, hardness value and testing numbers;


5, Support hardness Conversion;

6, Test results can be saved for reviewing or be printed out by the built-in printer, and with RS232 interface transfer to computer.

7, optional video measuring device and CCD image automatic measuring system.

Application range:
Suitable for cast iron, steel products, nonferrous metals and soft alloys etc. Also suitable for some nonmetal materials such as rigid plastics and bakelite etc.

Technical Specification:

Model iBrin-413Z
Test Force kgf 62.5kgf, 100kgf, 125kgf, 187.5kgf, 250kgf, 500kgf, 750kgf, 1000kgf, 1500kgf, 3000kgf
N 612.9N, 980.7N, 1226N, 1839N, 2452N, 4903N, 7355N, 9807N, 14710N, 29420N
Test Range 3.18~653HBW
Loading Method Automatic (Loading/Dwell/Unloading)
Hardness Reading LCD Display
Conversion Scale HV, HK, HRA, HRB, HRC, HRD, HRE, HRF, HRG, HRK, HR15N, HR30N, HR45N, HR15T, HR30T, HR45T, HS
Data Output Built-in Printer, RS232 Interface
Turret Automatic (Three Indenters, Two Objectives)
Objective 1X, 2X
Eyepiece 20X
Total Magnification 20X, 40X
Resolution 1.25μm, 0.625μm
Dwell Time 0~60s
Vertical Space 260mm
Throat 150mm
Power Supply AC220V/50Hz/1Ph, AC110V/60Hz/1Ph
Execute Standard ISO 6506, ASTM E10-12, JIS Z2243, GB/T 231.2
Dimension 535×260×890mm, Packing Dimension: 820×460×1170mm
Weight Net Weight: 150kg, Gross Weight: 180kg


Packing List:

Name Qty Name Qty
Instrument Main Body 1 set 20X Digital Measuring Eyepiece 1 pc
1X, 2X Objective each 1 pc Ф2.5mm, Ф5mm, Ф10mm
Ball Indenter
each 1 pc
Small Plane Test Table 1 pc Large Plane Test Table 1 pc
V-shaped Test Table 1 pc Power Cable 1 pc
Hardness Block
150~250 HBW10/3000
1 pc Hardness Block
150~250 HBW5/750
1 pc
Fuse 2A 2 pcs Anti-dust Cover 1 pc
Instruction Manual 1 copy





Principle of Brinell Test:



The Brinell hardness test method consists of indenting the test material with a 10 mm diameter hardened carbide ball subjected to a load of 3000 kg. For softer materials the load can be reduced to 1500 kg or 500 kg to avoid excessive indentation.



The full load is normally applied for 10 to 15 seconds in the case of iron and steel and for at least 30 seconds in the case of other metals. The diameter of the indentation left in the test material is measured with a low powered microscope. The Brinell harness number is calculated by dividing the load applied by the surface area of the indentation.

1.25μm 0.625μm Motorized Turret Digital Brinell Hardness Testing Machine With Built In Printer 0



The diameter of the impression is the average of two readings at right angles and the use of a Brinell hardness number table can simplify the determination of the Brinell hardness. A well structured Brinell hardness number reveals the test conditions, and looks like this, "75 HB 10/500/30" which means that a Brinell Hardness of 75 was obtained using a 10mm diameter hardened steel with a 500 kilogram load applied for a period of 30 seconds.



On tests of extremely hard metals a tungsten carbide ball is substituted for the steel ball. Compared to the other hardness test methods, the Brinell ball makes the deepest and widest indentation, so the test averages the hardness over a wider amount of material, which will more accurately account for multiple grain structures and any irregularities in the uniformity of the material. This method is the best for achieving the bulk or macro-hardness of a material, particularly those materials with heterogeneous structures.



1.25μm 0.625μm Motorized Turret Digital Brinell Hardness Testing Machine With Built In Printer 1
