Automatic Loading Large LCD Digital Rockwell Hardness Testing Machine with Built-in Mini Printer

China Automatic Loading Large LCD Digital Rockwell Hardness Testing Machine with Built-in Mini Printer supplier
Automatic Loading Large LCD Digital Rockwell Hardness Testing Machine with Built-in Mini Printer supplier Automatic Loading Large LCD Digital Rockwell Hardness Testing Machine with Built-in Mini Printer supplier

Large Image :  Automatic Loading Large LCD Digital Rockwell Hardness Testing Machine with Built-in Mini Printer

Product Details:

Place of Origin: Dongguan/China
Brand Name: iqualitrol
Certification: CE
Model Number: iRock-432D

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Plywood Box
Delivery Time: 20 Working Days
Payment Terms: T/T, Western Union
Supply Ability: 40 Sets per Month
Contact Now
Detailed Product Description
Loading: Motorized Loading Data Output: RS232, Built-in Mini Printer
Resolution: 0.1HR Dwell Time: 0 - 60 Seconds, Adjustable
Height: 175mm Throat: 165mm
High Light:

rockwell hardness test equipment

,

hardness testing instruments



Large LCD Rockwell Hardness Testing Machine Digital Hardness Testing Machine With Mini Printer



Brief Introduction:

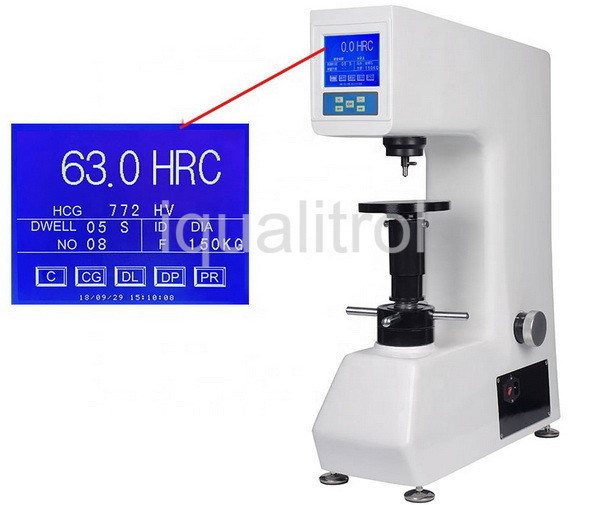

iqualitrol iRock-432D Digital Rockwell hardness tester equips with a newly-designed large displaying screen with good reliability, excellent operation and easy watching.

It can show and set the present scale, test force, test indenter, dwell time and hardness conversion.

The main functions as follows:
1, Support all the Rockwell scales;
2, Support Hardness Conversion;
3, Test results can be saved and printed;
4, Automatically calculate the maximum, minimum and average value;
5, With RS232 interface for data transferring to computer.

Application range:
Suitable for quenched steel, tempered steel, annealed steel, cold and hard casting, malleable cast iron, hard alloy steel, aluminum alloy, copper alloy, bearing steel etc.



Automatic Loading Large LCD Digital Rockwell Hardness Testing Machine with Built-in Mini Printer


Technical Specification:

Model iRock-432D
Initial Test Force 10kgf (98.07N)
Total Test Force 60kgf (558.4N), 100kgf (980.7N), 150kgf (1471N)
Indenter Diamond Rockwell Indenter, ф1.588mmBall Indenter
Loading Method Automatic (Loading/Dwell/Unloading)
Hardness Reading LCD Screen Display
Test Scale HRA, HRD, HRC, HRF, HRB, HRG, HRH, HRE, HRK, HRL, HRM, HRP, HRR, HRS, HRV
Conversion Scale HV, HK, HRA, HRB, HRC, HRD, HRE, HRF, HRG, HRK, HR15N, HR30N, HR45N, HR15T, HR30T, HR45T, HS, HBW
Data Output Built-in Printer,RS232 Interface
Resolution 0.1HR
Dwell Time 0~60s
Max. Height of Specimen 175mm
Throat 165mm
Power Supply AC220V/50Hz/1Ph, AC110V/60Hz/1Ph
Execute Standard ISO 6508, ASTM E-18, JIS Z2245, GB/T 230.2
Dimension 520×215×700mm, Packing Dimension: 650×370×950mm
Weight Net Weight: 78kg, Gross Weight: 100kg


Packing List:

Name Qty Name Qty
Instrument Main Body 1 set Diamond Rockwell Indenter 1 pc
ф1.588mmBall Indenter 1 pc Middle Plane Test Table 1 pc
Large Plane Test Table 1 pc V-shaped Test Table 1 pc
Hardness Block 60~70 HRC 1 pc Hardness Block 20~30 HRC 1 pc
Hardness Block 80~100 HRB 1 pc Weight A, B, C 3 pcs
Power Cable 1 pc Fuse 2A 2 pcs
Level 1 pc Horizontal Regulating Screw 4 pcs
Screw Driver 1 pc Spanner 1 pc
Anti-dust Cover 1 pc Usage Instruction Manual 1 copy



What is Rockwell Hardness Testing?

The Rockwell test consists of measuring the additional depth to which a carbide ball or diamond penetrator is forced by a heavy (major) load beyond the depth of a previously applied light (minor) load (SET point).

The minor load is applied first and a SET position is established on the dial gauge or displacement sensor of the Rockwell tester. Then the major load is applied. Without moving the piece being tested, the major load is removed and, with the minor load still applied, the Rockwell hardness number is automatically indicated on the dial gauge or digital display.

The diamond penetrator is used for testing materials such as hardened steels and cemented carbides. The carbide ball penetrators, available with 1/16 inch, 1/8 inch, 1/4 inch, and 1/2 inch diameter, are used when testing materials such as steel-copper alloys, aluminum and plastics to name a few.

Rockwell testing falls into two categories: Regular Rockwell testing (e.g., C and B scales) and Rockwell superficial testing (e.g., 30 N and 30 T scales).

Automatic Loading Large LCD Digital Rockwell Hardness Testing Machine with Built-in Mini Printer



High Rockwell hardness numbers represent hard materials and low numbers soft materials.


Automatic Loading Large LCD Digital Rockwell Hardness Testing Machine with Built-in Mini Printer
