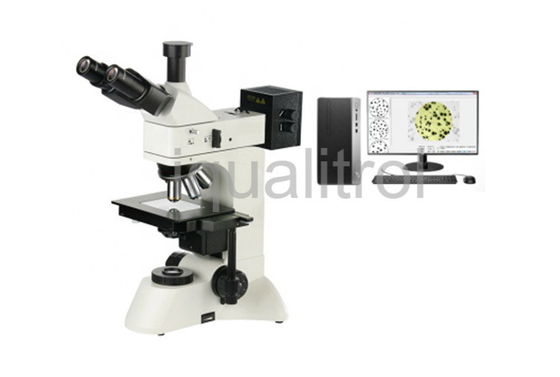

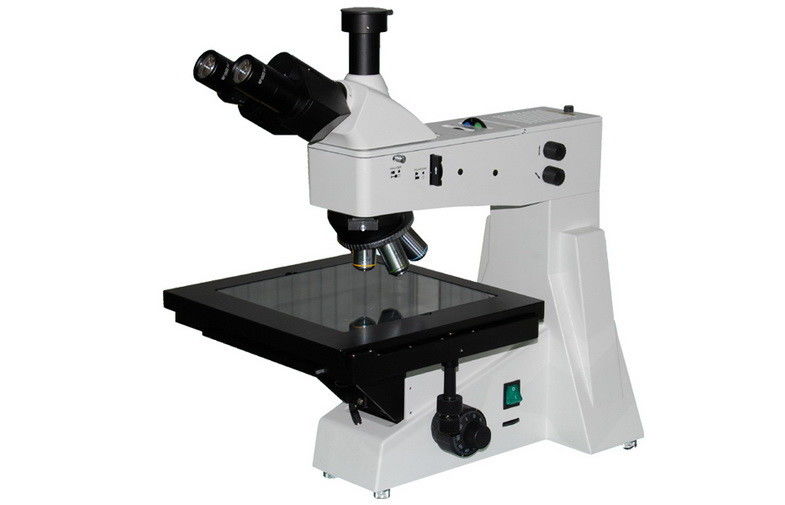

Halogen Lamp Upright Trinocular Metallurgical Microscope with DIC and Infinity System

Halogen Lamp Upright Trinocular Metallurgical Microscope with DIC and Infinity System
Halogen Lamp Upright Trinocular Metallurgical Microscope with DIC and Infinity System Halogen Lamp Upright Trinocular Metallurgical Microscope with DIC and Infinity System Halogen Lamp Upright Trinocular Metallurgical Microscope with DIC and Infinity System Halogen Lamp Upright Trinocular Metallurgical Microscope with DIC and Infinity System Halogen Lamp Upright Trinocular Metallurgical Microscope with DIC and Infinity System Halogen Lamp Upright Trinocular Metallurgical Microscope with DIC and Infinity System

Large Image :  Halogen Lamp Upright Trinocular Metallurgical Microscope with DIC and Infinity System

Product Details:
Place of Origin: Dongguan/China
Brand Name: iqualitrol
Certification: CE
Model Number: iMet-220DIC
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Carton Box
Delivery Time: 20 Working Days
Payment Terms: T/T, Western Union
Supply Ability: 50 Sets per Month
Detailed Product Description
Model: IMet-220DIC Name: Metallurgical Inverted Microscope
Eyepiece: Wide Field WF10X (FOV: Φ22mm) Objective: 5X, 10X, 20X, 50X, 80X
Stage: Stage Size: 280mmX270mm DIC: Suitable To 5X/10X/20X Objective
Camera: Support USB CMOS Camera Focus: Coaxial Coarse/Fine Focus System
High Light:

DIC System Digital Metallurgical Microscope

,

Infinity System Digital Metallurgical Microscope

,

Halogen Lamp Microscope



Halogen Lamp Upright Trinocular Metallurgical Microscope with DIC and Infinity System



Product Information:

iqualitrol upright metallurgical microscopes are available in both binocular and trinocular (for camera integration). These metallurgical microscopes are available with reflected and/or transmitted light, as well as brightfield and darkfield. Metallurgical microscopes allow for polarization and are best for viewing samples at high magnification that do now allow light to pass through them.



iMet-220DIC differential interference contrast microscope is suitable to observe many different kinds of object.



iMet-220DIC equips with transmitted illumination and reflected DIC system, infinity plan achromatic objectives with long working distance, wide-field eyepieces and polarizer device.



iMet-220DIC provides clear and 3D image, beautiful sculpt, convenient control, etc. It is the ideal instrument in research work in biology, metallography, mineralogy, precision engineering, electronics, etc.



Halogen Lamp Upright Trinocular Metallurgical Microscope with DIC and Infinity System 0

Halogen Lamp Upright Trinocular Metallurgical Microscope with DIC and Infinity System 1

Halogen Lamp Upright Trinocular Metallurgical Microscope with DIC and Infinity System 2

Halogen Lamp Upright Trinocular Metallurgical Microscope with DIC and Infinity System 3

Halogen Lamp Upright Trinocular Metallurgical Microscope with DIC and Infinity System 4

Halogen Lamp Upright Trinocular Metallurgical Microscope with DIC and Infinity System 5



Standard Configuration:

Eyepiece 10X Wide-field plan eyepiece field of view Ф22mm
Objective (Infinity and long working distance plan achromatic objective) Type Magnification Number aperture Working distance (mm) Thickness of cover glass (mm) Remark



Bright Field objective



LMPlan5X 0.12 18.2 0 iMet-220DIC
LMPlan10X 0.25 20.2 0
LMPlan20X 0.35 6.0 0
50X 0.70 3.68 0
80X 0.80 1.28 0
Eyepiece tube Inclination of 30˚ and interpupillary distance is 53~75mm
Focusing system Coaxial coarse/fine focus, with tension adjustable and up stop minimum division of fine focusing: 0.8um
Nosepiece Quintuple (Backward ball bearing inner locating)
Stage Mechanical stage size:280mmX270mm, moving range:204mmX204mm
Polarization Unit Polarizer enable 360°rotate and switched in or out
Analyzer can be switched in or out

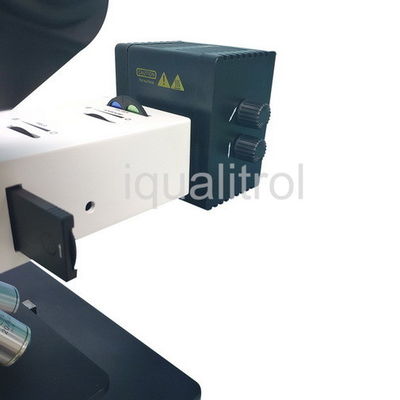

Light source 12V50W halogen, brightness enable control
DIC observation system Suitable to 5X/10X/20X objective

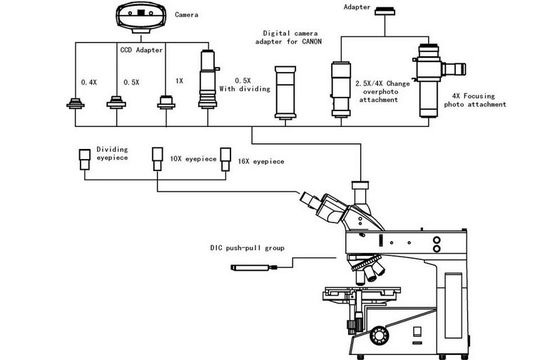

Optional Accessories:

name Sort/Technique parameter NO.
Eyepiece Dividing eyepiece(field number:Ф22mm) 0.10mm / Div 1121010
Objective Magnification Number aperture Working distance (mm) Remark
40X 0.60 3.98 Bright field 2260140
60X 0.75 1.22 2260160
100X(Dry) 0.85 0.40 2260111
Stage Mechanical stage, size: 250mmX230mm, moving range:154mmX154mm 040018
CCD adapter 0.5X 812004
1X 812002
0.5X with dividing 0.1mm/Div 812003
Camera DV-1(with USB and Video output ) 800001
DV-2(with USB output ) 800003
DV-3(with Video output ) 800005
Digital Camera Adapter CANON(EF) NIKON( F) 820001



Halogen Lamp Upright Trinocular Metallurgical Microscope with DIC and Infinity System 6
