|Load:||MAX Load: 40kg||Time Setting:||1 Second~100 Hours|
|Frequency:||Vibration: 50HZ||Amplitude:||0-15kg Load:0-±2mm|
50Hz Electromagnetic Vibration Table,
AC220V Electromagnetic Vibration Table,
Vertical Vibration Testing Machine

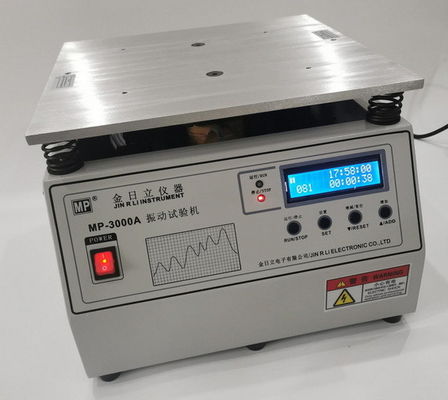

50HZ Electromagnetic Vibration Table Vertical Vibration Tester Testing Machine
Power Frequency iqualitrol Intelligent Vibration Testing Machine is a kind of instrument which used to test the product should be anti-vibration.
This Vibration Testing Machine used with advanced microcomputer technology, very easy for operating, also have a lot of features which can help you test the object that need to test for anti-vibration.
Electromagnetic vibration tester is widely used in national defense, aviation, aerospace, communications, electronics, automotive, appliance and other industries.
This equipment is used to detect early failure, simulate the actual condition assessment and structural strength test, wide range of products for wide, the test results are obvious, reliable.
A. Digital LED Display: The level of vibration you can set and storage by yourself from 0~100.
B. It can be displayed simultaneously: the vibration amplitude level, the time has been set and the time has run past.
C. It was used with advanced Soft-start circuit for a more stable operation
D. Automatic setting, simple operation.
E. Data Hold for the test time and the level of vibration, even it is power cut suddenly.
F. System circuit will save the data and automatic reset,when it is turn off or power cut.
G. In order to avoid the damage of the circuit when turn on the machine, it is used with advanced microcomputer technology.
H. It will perform automatically all procedures which you have set in 3 seconds when you open it.
1, MAX Load: 40kg
2, Power Input: AC220V/50Hz, AC110V/60HZ
3, Monitored values of Vibration:100%(Display:100)
4, Time Setting:1 Second~100 Hours(Display:99:59:59)
5, Power: 0.9KW
6, Vibration direction: vertical
7, Vibration frequency: 50HZ
8, Adjustable amplitude when unload:0-±2mm
A, 0-15kg Load: 0-±2mm
B, 30kg-40kg Load: 0-±1.8mm
9, Size of Workbench:400mm×350mm×16mm(L×W×H)
