Payment & Shipping Terms:
|203mm (Opt. 250mm)
metallographic polishing machine,
double disc polishing machine
Double Speeds 300rpm / 600rpm Single Disc Diameter 200mm Sample Polishing Machine Grinder

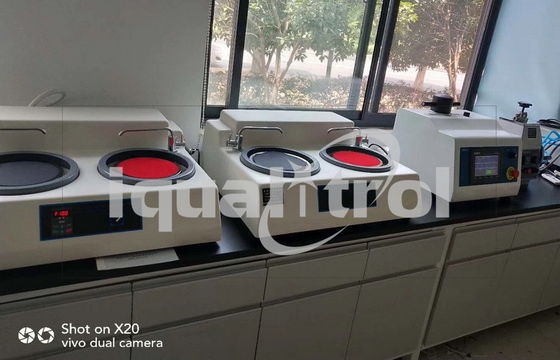

Technical Data Sheet: iqualitrol Grinding and Polishing Machine iGrind-811
iqualitrol iGrind-811 single disc is suitable for carrying out pre-grinding, normal grinding and polishing against metallographic specimens. Since the machine has two speeds 300rpm and 600rpm,which favors the machine with wide applications.
The machine equips with cooling system that can cool down the specimen during pre-grinding so as to prevent overheating and damaging the metallographic structure. It is convenient and on the safe side . It is an ideal option for the lab .of factories, science and research institutions and universities.
|740 x 400 x 310mm
The metallographic grinding and polishing machine made by iqualitrol has passed CE certification. It features a sturdy and durable cast aluminum base, equipped with high-precision spindle and transmission mechanism, which effectively absorbs vibration during grinding and greatly increases comfort in use.
It can obtain smoother grinding samples and reduce laboratory noise. The machine can be equipped with a fast magnetic adapter, compatible with various diamond grinding systems, facilitating quick switching of various grinding consumables and greatly expanding the scope of equipment applications.
The stainless steel ceramic faucet customized by a Taiwanese sanitary ware manufacturer is used to meet the special needs of metallographic grinding, including water flow rate and angle, while also being aesthetically pleasing and practical.
The drainage system adopts an anti-clogging triangular waterway design to solve the problem of clogging caused by grinding consumables for long-term users. We use the shortest waterway distance and angle design to reduce the probability of clogging.
The waterproof film panel has 9 sets of grinding and polishing parameter memory functions. Different grinding speeds, directions, and times can be set for different materials and requirements, which can be changed at any time to meet different grinding and polishing needs.
When used for automatic polishing, an automatic dripping device can be purchased to allow polishing consumables (diamond suspensions, alumina powder, final polishing liquid) to automatically drip onto the polishing disc according to the set time.
High-end Metallographic Grinding Polishing Machine
Two working plates, standard plates dimension 250mm, 50% larger than normal grinding-polishing machine
Six pieces Φ30mm samples can be polished simultaneous
Single point pneumatic holding, no demo gripper
Grinding and polishing procedure (rough and fine) are continuously done, no machine transition
Frequency Converter control, three-level constant speed mode and variable Speed mode:
1.Three level constant speeds: customer can define three common speeds for pre-grinding, grinding and polishing
2.Variable speed mode: grinding speed 60-1000n/min
3.Eight sections programmable control, automatically stop, convenient for customer getting metallographic demos
Beautiful outlook and good quality;
Contact Person: Mr. Raymond Chung
Features: minimize the wearing of the sample, eliminate the surface stress and bring excellent flatness with less stress deformation
Application: Titanium, Aluminium, pure Copper and Copper alloys, Aluminium alloys, steel and Nickel-based alloys
piezoelectric vibratory plate: Low power consumption& noise design
Disc Replace: Easily replacement design on disc, convenient to change and clean
