Product Details:
Payment & Shipping Terms:
|
| Irradiated Area: | At 38cm Distance: 70mm | Rated Power: | 3W |
|---|---|---|---|
| Lamp Bead: | NICHIA 365nm Ultraviolet | Battery Model: | ICR 18650 |
| Application: | Fluorescence Penetrant Testing | Interference: | Anti Magnetic Interference Function |
| High Light: | Portable Ultraviolet UV Lamp,3W Portable Ultraviolet Light |
||

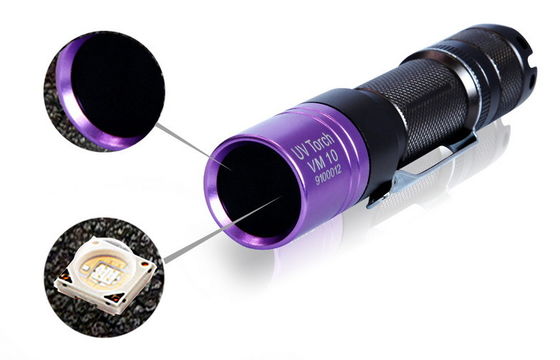

Portable Ultraviolet UV Lamp for Fluorescence Penetrant Testing and Leak Detection
Technical Data Download: iqualitrol Portable Ultraviolet UV Lamp
Brief Introduction:
The shell of the instrument is made of 6061-T6 high strength aluminium alloy precision machining. The surface is anodized, sturdy and durable.
The built-in efficient cooling fin and low noise high speed fan dissipate the heat through aluminium alloy shell integrally.
With anti magnetic interference function, it can be used in high-intensity magnetic field.
Both switch and jack socket are at the end of the instrument, make it convenient to use and avoid misoperation.
The product has passed through International Standard of IEC 60529 (Housing Protection Grade IP66) dust proof and waterproof testing, wider working environment and more reliable.
Main Application:
Fluorescence Penetrant Testing;
Fluorescence Magnetic Particle Flaw Detection;
Fluorescence Leak Detection;
Oil Stain, Blot Testing;
Special Gas, Oil and Gas Pipeline Testing;
Fluorescence Reflection Detection for Special Materials;
Criminal Investigation and Legal Medical Expert Survey;
Banknote Identification, Jewel Appreciation;
Agriculture, Foodstuff,Medical Treatment and other relevant industries.
Model Selection:
| Product Model | VM 10 | VM 30 | VM 50 | VM 70 |
| Central Intensity of Ultraviolet Ray at 38cm Distance | ≥10000 uW/cm2 |
≥13000 uW/cm2
|
≥20000 uW/cm2
|
≥20000 uW/cm2
|
| Irradiated Area at 38cm Distance | ￠70mm | ￠45mm | ￠55mm | ￠80mm |
| Diameter of Light Inlet Window | ￠22 | ￠34 | ￠55 | ￠55 |
| Battery Model | ICR 18650 | ICR 26650 | ICR 26650 | ICR 18650 |
| Battery Capacity | 2600mAh | 4800mAh | 4800mAh | 2600mAh |
| Battery Amount | 1 | 1 | 2 | 4 |
| Charging Time | ≥5H | ≥6H | ≥7H | ≥5H |
| Operating Time | ≥4H | ≥5H | ≥8H | ≥5H |
| Weight | 140g | 240g | 520g | 610g |
| Model | VM10 | VM30 | VM50 | VM70 |
| Main Device | 1 | 1 | 1 | 1 |
| Battery | 1 | 1 | 2 | 4 |
| Charger | 1 | 1 | 1 | 1 |
| Suit Case | 1 | 1 | 1 | 1 |
| Operating Manual | 1 | 1 | 1 | 1 |
| Certification | 1 | 1 | 1 | 1 |
| Warranty Card | 1 | 1 | 1 | 1 |
| Packing List | 1 | 1 | 1 | 1 |
1. Please pay attention to the positive and negative pole of the battery, positive toward to the lamp holder direction. Try to avoid battery over discharge.
2. Keep away from child.
3. Do not irradiate eyes and skin.
4. Keep away from fire.
5. Please store in low temperature, dry and ventilation.
6. If long time no use, please take out the battery. It is suggested to charge and discharge every 3 months.
7. Optimum charging environment: 18-30℃,humidity 25-62%.
