| Disc Diameter: | 250mm | Rotating Speed: | Stepless 100-1000rpm |
|---|---|---|---|
| Motor: | DC Brushless Motor | Sample Qty: | 6pcs Specimens |
| Rotating Direction: | Clockwise And Anticlockwise | Pressure Method: | Single Pneumatic Pressure |
| High Light: | grinder polisher machine,double disc polishing machine |
||

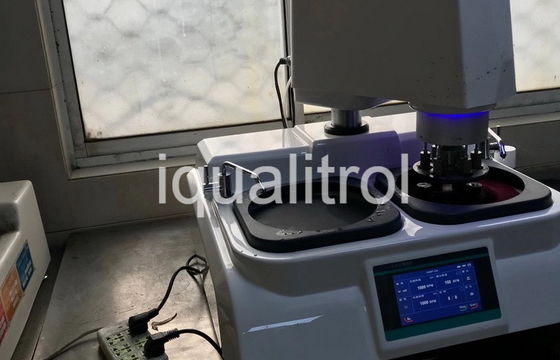

Automatic Metallographic Sample Grinding and Polishing Machine with Touch Controller
Technical Sheet: iqualitrol metallographical grinding machine
Brief Introduction:
In the metallographic sample preparation, pre-grinding, polishing and grinding are the indispensable procedures.
This machine is controlled by single chip microcomputer, with beautiful appearance, stable performance and convenient operation, it realizes the automation of grinding and polishing. Therefore it is the ideal equipment for metallographic sample preparation.
Features:
1, Equips with high definition LCD touch screen, clear to display and easy to use.
2, DC brushless motor, used for a long time; super mute design brings a good experience.
3, Stainless steel grinding/polishing disc, firm and steady.
4, Strong large support chassis design ensures the precision rotary balance.
5, Spindle leak-proof design ensures the bearing without damage.
6, Stepless speed and quick set four speeds control, support clockwise/anticlockwise rotating direction.
7, Magnetic grinding disc design, supports fast disc replacing system, the plate is Teflon painted which makes no residue of changing polishing cloth.
8, Equips with automatic polishing head, replaces traditional manual grinding and polishing. Time and rotating speed of polishing head can be preset. With lighting system, largely improves the grinding and polishing quality and efficiency.
9, Touch screen controller can save 10 kinds of grinding and polishing procedure, set different parameters for different samples.
10, With optional ZDD-1 automatic dropping device, it can set time and drop uniformly for the suspension.
Technical Specifications:
| Model | iGrind-420P | iGrind-421P | iGrind-420PM | iGrind-421PM |
| Disc Diameter | 250mm | 300mm | Magnetic 250mm | Magnetic 300mm |
| Rotating Speed | Stepless 100-1000rpm, with quick speed setting 250pm, 500rpm, 750rpm, 1000rpm | |||
| Rotating Direction | Clockwise/Anticlockwise | |||
| Electromotor | DC brushless motor, 220V, 1.1kw | |||
| Sample Quantity | Polishing head can hold 6pcs specimens | |||
| Sample Diameter | 30mm, (Optional 45mm, 22mm) | |||
| Pressure Method | Single pneumatic pressure | |||
| Pressure Force | 0-8kg | |||
| Rotating Speed | Polishing head stepless speed 30-120rpm | |||
| Time Setting | 0-999min | |||
| Electromotor | Polishing head: DC brushless deceleration motor, 220V, 100W | |||
| Dimension | 725x900x760mm | |||
| Weight | 115Kg | |||
