Model: | HL-200-NS | Name: | Salt Spray Testing Chamber |
---|---|---|---|
Air Pressure: | 6kgf/cm2 | Solution: | Tank Capacity 120 |
Dimension: | 200*95*60cm | CASS: | Pure Water + NaCl + CuCl (PH3.0~3.2) |
Highlight: | 6kgf/Cm2 Salt Spray Test Chamber,CASS Salt Spray Test Chamber,AC 220V Salt Fog Test Equipment |

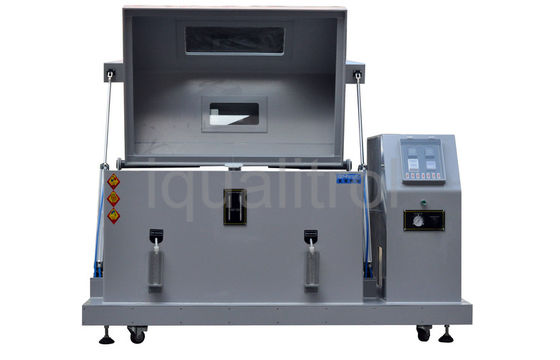

Energy Saving Corrosion Resistance Acidified Salt Fog Test Chamber
with Temperature Controller
Product introduction:
Salt spray test chamber is to test the anti-erosion quality of the surface of all materials after the rust-proof of painting,coating,electroplating,anoding and greasing.it carries out the anti-corrosive treatment to test the corrosion resistance of the products.
Features:
1. The whole machine is made of PVC hard plastic sheet, corrosion resistant, easy to clean, no salt spray leakage.
2. Adopt the touch-tone intelligent temperature control meter, multi-group PID automatic calculation, high control precision, can also select the LCD touch screen instrument.108L and 270L tester covers are covered with acrylic top cover.
3. Adopts the tower spraying system and equipped with the salt solution filter system and non-crystal nozzle so as to realize even salt spray distribution and freely adjustable settlement.
4. After the test, the automatic defog removal device can be used to observe the samples
5. Spray time: clearance/continuous spray can be adjustable, multi-system guarantee, safe and reliable.
Standards Conform:
1. GB/T 2423.17-1993 salt spray test
2. GB/T 2423.18-2000 salt spray test
3. GB/T 10125-1997 salt spray test
4. ASTM B117-97 salt spray test
5. JIS H8502 salt spray test
6. IEC68-2-11 salt spray test
7. IEC68-2-52 1996 salt spray test
8. GB 10587-89 salt spray test
9. CNS 4158 salt spray test
10. CNS 4159 CASS Accelerated acetic acid copper salt spray test
11. GB/T 12967.3-91 CASS Accelerated acetic acid copper salt spray test
ISO-9227, ASTM-B117, JIS-D0201, H8502, H8610, Z2371, GB/T10125
Technical parameters:
Please Note Small Type of 60 and 90 do not meet standard of ASTM B117.
Button Model | HL-60-SS | HL-90-BS | HL-120-NS | HL-160-NS | HL-200-NS | ||||
LCD touch screen Model | HL -60-CS | HL -90-CS | HL -120-CS | HL -160-CS | HL -200-CS | ||||
Inner size (mm) | W | 600 | 900 | 1200 | 1600 | 2000 | |||
D | 450 | 600 | 850 | 850 | 950 | ||||
H | 400 | 500 | 500 | 550 | 600 | ||||
External size (mm) | W | 1130 | 1460 | 1900 | 2300 | 2700 | |||
D | 630 | 910 | 1150 | 1150 | 1350 | ||||
H | 1070 | 1280 | 1500 | 1550 | 1600 | ||||
Lab Capacity(L) | 108 | 270 | 480 | 800 | 1440 | ||||
Saline Capacity(L) | 15 | 25 | 90 | 90 | 120 | ||||
Inside Temperature | (NSS ACSS) Test temperature : 35°C±1°C | ||||||||
(CASS) Test temperature : 50°C±1°C | |||||||||
Pressure Bucket Temperature | (NSS ACSS) Test temperature : 47°C±1°C | ||||||||
(CASS) Test temperature : 63°C±1°C | |||||||||
Brine Temperature | (NSS ACSS) Test temperature : 35°C±1°C | ||||||||
(CASS) Test temperature : 50°C±1°C | |||||||||
Test solution | NSS: pure water + Nacl (PH6.5~7.2) | ||||||||
CASS: Pure water + NaCl + CuCl (PH3.0~3.2) | |||||||||
Compressed Air Pressure |
2kgf/cm2 | 2kgf/cm2 | 6kgf/cm2 | 6kgf/cm2 | 6kgf/cm2 | ||||
Chamber Material | polyvinyl chloride (PVC) | ||||||||
Spray quantum | 1.0~2.0(ml/80cm2/h) | ||||||||
Safety device | Over-temperature protection , leakage protection | ||||||||
Heater | Corrosion-resistant titanium tube | ||||||||
Temperature sensor | Platinum Resistance (PT-100) | ||||||||
Power | AC 220V , 15A,1Ф, 50HZ |
Optional accessories:
1. Control Panel : Key panel / LCD panel (optional)
2. Working way: steam heating type / air heating type (optional)
3. Salt concentration meter
4. Air compressor
