Product Details:
Payment & Shipping Terms:
|
| Depth Of Field: | 20mm～150mm/ 10-100mm | View: | Camera Side View |
|---|---|---|---|
| Replaceable: | Tubes Diameter From 2mm To 6mm | Illumination: | 30,000lx At A Maximum |
| Camera: | Dual Camera With 0.45MP | IR Function: | IR/IR Thermal Imaging(optional) |
| Highlight: | Dual Camera Industrial Video Borescope,ISO Industrial Video Borescope,IR Endoscope |
||

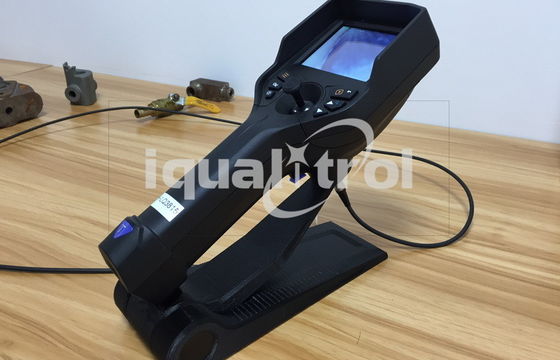

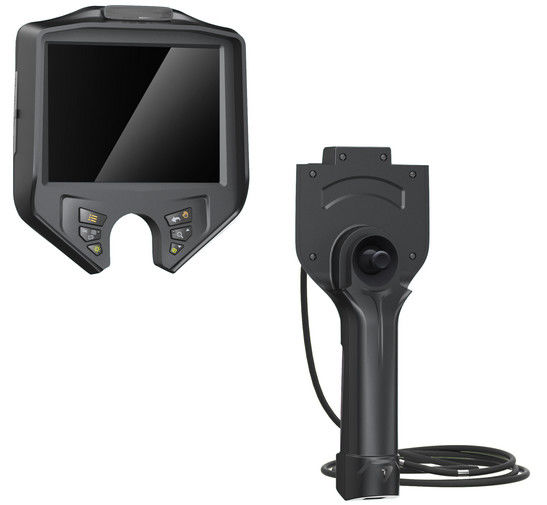

Dual Camera HD Monitor and IR Thermal Imaging Industrial Borescope for Architecture Structure
Brief Introduction:
iqualitrol borescope consists of a rigid or flexible tube with a monitor to display real time video, an objective lens or camera on the other linked together by an optical or electrical system in between.
The optical system in some instances is surrounded by optical fibers used for illumination of the remote object. An internal image of the illuminated object is formed by the objective lens and magnified by the eyepiece which presents it to the viewer's eye.
Rigid or flexible borescopes may be fitted with an imaging or video device. For medical use, similar instruments are called endoscopes.
Application:
Borescopes are used for visual inspection work where the area to be inspected is inaccessible by other means, or where accessibility may require destructive, time consuming and/or expensive dismounting activities. Similar devices for use inside the human body are referred to as endoscopes.
Borescopes are mostly used in nondestructive testing techniques for recognizing defects or imperfections.
iqualitrol videoscopes are widely used in the fields of automotive manufacturing, car aftermarket, police security checking, aviation and aerospace area, special inspection institute, pharmaceutical machinery, non-destructive testing explosion-proof detection, ect.
Quality Assurance:
All products are complied with RoHS, CE and ISO standard and passed testing for temperature, waterproof, drop, vibration and pressure. Our vision is providing high-quality professional inspection instrument to every customer.
Operation Environment:
| Host System Working Temperature | -20°C~50°C, when 0°C below, the display needs preheating. |
| Camera Working Temperature | -20°C~80°C, when 0°C below, please reduce oriented operation. |
| Store Temperature | -23°C~63°C |
| Relative Humidity | Maximum: 92%, non-condensing |
Technical Specifications:
| Camera Diameter(mm) | Φ6mm |
| Camera Material | Titanium alloy |
| Camera Pixel | 0.45 Mega Pixel |
| Depth of Field | 20mm～150mm/ 10-100mm |
| Angle of Field | 120° |
| Illumination | 30,000lx at a maximum |
| Bright/Chroma/Contrast Ratio Adjustment | Manual, bright: six levels, chroma and contrast ratio: manual adjusting |

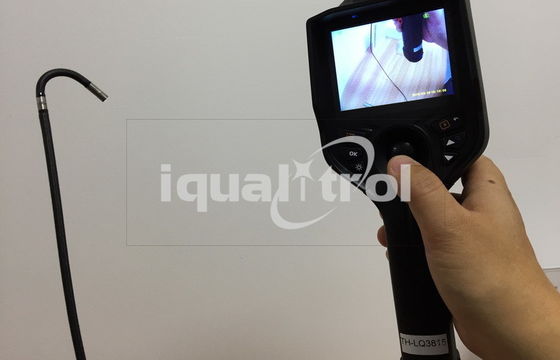

| Articulation | 360° all-way articulation |
| Bending Angle | ≥180° |
| Effective Working Length | 2m |
| Insert Tube | tungsten-braided |
|
Protecting Device of |
Buffer protection device between the host and wear-resistant tube |
| Display | Highlight 3.5 inches TFT LCD, can be replaceable for 5.7 inches display |
| Display Resolution | 640*480 |
| Image Resolution | 640*480/1280*720/1920*1080 |
| Video Resolution | 640*480/1280*720/1920*1080 |
| Image/Video Format | JPEG/MOV |
| WIFI Function | WIFI(optional) |
| IR Function | IR/IR thermal imaging(optional) |
| Memory | Standard TF card:8G, Maximum: 32G |
| Language | Chinese, English, Russian… 8 languages |
| Data I/O port | Micro-USB port,HDMI port |
| Waterproof | Camera/Object glass/Tubes:IP67 |
| Working Time | ≥8 hours |
| Weight | ≤0.55kg(with batteries) |
| Power Supply | Rechargeable lithium battery(or built-in battery) |
| Battery Capacity | 3.7V 3200mAh |
| Power Consumption | 2W |
| Charging Parameters | DC5V, Maximum current:1A |
| View Direction | Model | Main Specifications |
| iT51X 6mm Front view |
iT51X-6015 | Tube diameter 6mm；Intelligent System; One mega pixels；Tube Length 1.5 meters；360° articulation；5.1'' display |
| iT51X-6020 | Tube diameter 6mm；Intelligent System; One mega pixels；Tube Length 2.0 meters；360° articulation；5.1'' display | |
| iT51X 6mm Side view |
iT51X-6015S | Tube diameter 6mm；Intelligent System; One mega pixels；Tube Length 1.5 meters；360° articulation；5.1'' display |
| iT51X-6020S | Tube diameter 6mm；Intelligent System; One mega pixels；Tube Length 2.0 meters；360° articulation；5.1'' display | |
| iT51X 6mm Dual Lens |
iT51X-6015D | Tube diameter 6mm；Intelligent System; One mega pixels；Tube Length 1.5 meters；360° articulation；5.1'' display |
| iT51X-6020D | Tube diameter 6mm；Intelligent System; One mega pixels；Tube Length 2.0 meters；360° articulation；5.1'' display | |
| iT51X 3.8mm Front view |
iT51X-3810S | Tube diameter 3.8mm；Intelligent System; One mega pixels；Tube Length 1.0 meter；360° articulation；5.1'' display |
| iT51X-3815S | Tube diameter 3.8mm；Intelligent System; One mega pixels；Tube Length 1.5 meters；360° articulation；5.1'' display | |
| iT51X 3.8mm Side view |
iT51X-3810S | Tube diameter 3.8mm；Intelligent System; One mega pixels；Tube Length 1.0 meter；360° articulation；5.1'' display |
| iT51X-3815S | Tube diameter 3.8mm；Intelligent System; One mega pixels；Tube Length 1.5 meters；360° articulation；5.1'' display | |
| iT51X 2.8mm Front view |
iT51X-2810 | Tube diameter 2.8mm；Intelligent System; 300,000 pixels；Tube Length 1.0 meters；360° articulation；5.1'' display |
| iT51X-2815 | Tube diameter 2.8mm；Intelligent System; 300,000 pixels；Tube Length 1.5 meters；360° articulation；5.1'' display | |
| iT51X 2.4mm Front view |
iT51X-2410 | Tube diameter 2.4mm；Intelligent System; 450,000 pixels；Tube Length 1.0 meter；360° articulation；5.1'' display |
| iT51X-2415 | Tube diameter 2.4mm；Intelligent System; 450,000 pixels；Tube Length 1.5 meters；360° articulation；5.1'' display | |
| iT51X 2.2mm Front view |
iT51X-2210 | Tube diameter 2.2mm；Intelligent System; 160,000 pixels；Tube Length 1.0 meter；2-way articulation；5.1'' display |
