Camera: | Megapixel Camera | Articulation: | 360° All-way Articulation |
---|---|---|---|
Application: | Clogged Pipelines Or Corrosion In Rotors | Power Supply: | Rechargeable Lithium Battery |
Operation OS: | Android OS, 5.7" HD Monitor | Insert Tube: | Dia. 6.0mm, Length 2M |
Highlight: | Video Inspection Borescope,Portable Digital Video Scope,Android OS Digital Video Scope |
5.7" HD Monitor Portable Megapixel Front View Camera Industrial
Video Borescope with Android OS
Brief Introduction:
iqualitrol remote visual inspection videoscopes systems are designed to meet the demands of the modern industrial inspection environment. They offer portable and intelligent remote imaging solutions with a host of advanced, yet intuitive features, making them ideal remote visual inspection instruments.
A wide range of iqualitrol videoscope, fiberscopes and borescopes with various diameters and viewing options are available, making our videoscopes systems the most versatile inspection system suitable for a multitude of inspection requirements.
Models and Main Specifications of HD Front View Video Borescopes:
View Direction | Model | Main Specifications |
iT51X 6mm Front view |
iT51X-6015 | Tube diameter 6mm;Intelligent System; One mega pixels;Tube Length 1.5 meters;360° articulation;5.1'' display |
iT51X-6020 | Tube diameter 6mm;Intelligent System; One mega pixels;Tube Length 2.0 meters;360° articulation;5.1'' display | |
iT51X 6mm Side view |
iT51X-6015S | Tube diameter 6mm;Intelligent System; One mega pixels;Tube Length 1.5 meters;360° articulation;5.1'' display |
iT51X-6020S | Tube diameter 6mm;Intelligent System; One mega pixels;Tube Length 2.0 meters;360° articulation;5.1'' display | |
iT51X 6mm Dual Lens |
iT51X-6015D | Tube diameter 6mm;Intelligent System; One mega pixels;Tube Length 1.5 meters;360° articulation;5.1'' display |
iT51X-6020D | Tube diameter 6mm;Intelligent System; One mega pixels;Tube Length 2.0 meters;360° articulation;5.1'' display | |
iT51X 3.8mm Front view |
iT51X-3810S | Tube diameter 3.8mm;Intelligent System; One mega pixels;Tube Length 1.0 meter;360° articulation;5.1'' display |
iT51X-3815S | Tube diameter 3.8mm;Intelligent System; One mega pixels;Tube Length 1.5 meters;360° articulation;5.1'' display | |
iT51X 3.8mm Side view |
iT51X-3810S | Tube diameter 3.8mm;Intelligent System; One mega pixels;Tube Length 1.0 meter;360° articulation;5.1'' display |
iT51X-3815S | Tube diameter 3.8mm;Intelligent System; One mega pixels;Tube Length 1.5 meters;360° articulation;5.1'' display | |
iT51X 2.8mm Front view |
iT51X-2810 | Tube diameter 2.8mm;Intelligent System; 300,000 pixels;Tube Length 1.0 meters;360° articulation;5.1'' display |
iT51X-2815 | Tube diameter 2.8mm;Intelligent System; 300,000 pixels;Tube Length 1.5 meters;360° articulation;5.1'' display | |
iT51X 2.4mm Front view |
iT51X-2410 | Tube diameter 2.4mm;Intelligent System; 450,000 pixels;Tube Length 1.0 meter;360° articulation;5.1'' display |
iT51X-2415 | Tube diameter 2.4mm;Intelligent System; 450,000 pixels;Tube Length 1.5 meters;360° articulation;5.1'' display | |
iT51X 2.2mm Front view |
iT51X-2210 | Tube diameter 2.2mm;Intelligent System; 160,000 pixels;Tube Length 1.0 meter;2-way articulation;5.1'' display |
Application:
Typical applications of iqualitrol videoscopes include inspection of bearing surfaces and lubrication in production and manufacturing environments; aircraft maintenance and automotive quality assurance; as well as other heavy-duty maintenance applications such as the inspection of clogged pipelines or corrosion in rotors.
Key for these types of inspection applications are rugged, powerful and high-resolution videoscopes that deliver a clear update on the condition of internal components in equipment and other electrical systems, thereby enabling professionals to quickly and easily identify issues and schedule preventive maintenance to avoid expensive system shutdowns.
Aircraft Turbines | Airframe Inspections | Bearings & Gearboxes |
Chemical Processing | Co-Gen Plants | Corrosion |
Down-Hole Motors / PC Pumps | Electronic Assemblies | Heat Exchangers and Boilers |
Heavy Equipment Maintenance | HVAC and Mechanical | Land-Based Turbines |
Large Diesel Engines | Metal Castings | Military / EOD / Law Enforcement |
Mining & Exploration Maintenance | Nuclear Power | Oil & Gas Maintenance |
Paper Mills | Power Gen | Pumps & Valves |
Reciprocating Engines | Refineries | Wind Turbines |
Quality Assurance:
All products are complied with RoHS, CE and ISO standard and passed testing for temperature, waterproof, drop, vibration and pressure. Our vision is providing high-quality professional inspection instrument to every customer.
Operation Environment:
Host System Working Temperature | -20°C~50°C, when 0°C below, the display needs preheating. |
Camera Working Temperature | -20°C~80°C, when 0°C below, please reduce oriented operation. |
Store Temperature | -23°C~63°C |
Relative Humidity | Maximum: 92%, non-condensing |
Technical Specifications:

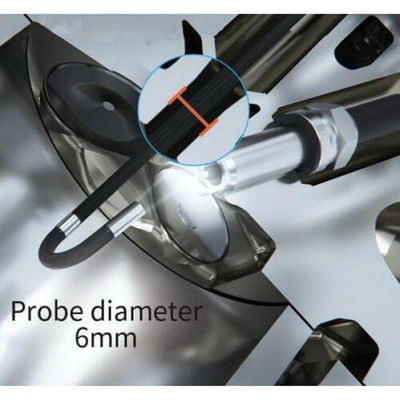

Camera Diameter(mm) | Φ6.0mm |
Camera Material | Titanium alloy |
Camera Pixel | Mega Pixel |
Depth of Field | 20mm~150mm/ 10-100mm |
Angle of Field | 120° |
Illumination | 30,000lx at a maximum |
Bright/Chroma/Contrast Ratio Adjustment | Manual, bright: six levels, chroma and contrast ratio: manual adjusting |

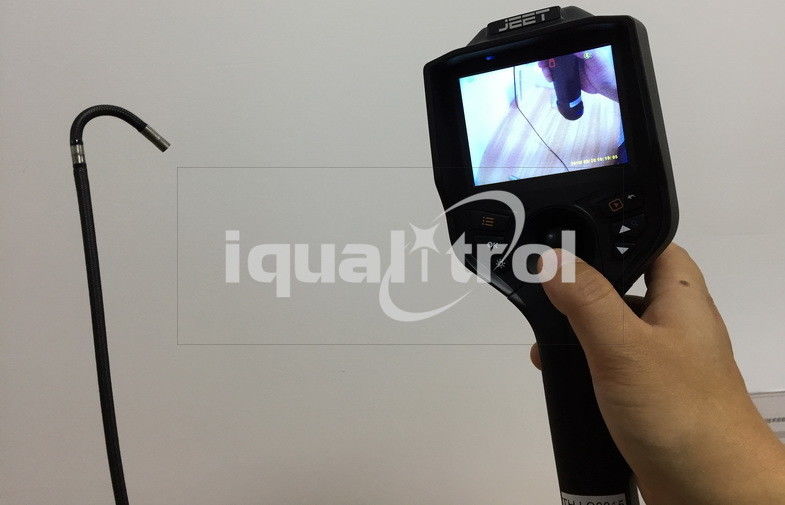

Articulation | 360° all-way articulation |
Bending Angle | ≥180° |
Effective Working Length | 2m |
Insert Tube | tungsten-braided |
Protecting Device of |
Buffer protection device between the host and wear-resistant tube |

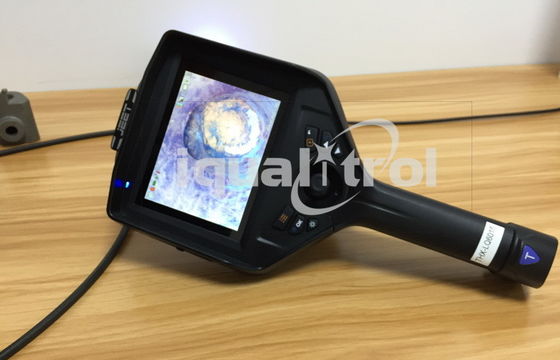

Display | 5.7 inches display |
Display Resolution | 640*480 |
Image Resolution | 640*480/1280*720/1920*1080 |
Video Resolution | 640*480/1280*720/1920*1080 |
Image/Video Format | JPEG/MOV |
WIFI Function | WIFI(optional) |
IR Function | IR/IR thermal imaging(optional) |
Memory | Standard TF card:8G, Maximum: 32G |
Language | Chinese, English, Russian… 8 languages |
Data I/O port | Micro-USB port,HDMI port |
Waterproof | Camera/Object glass/Tubes:IP67 |
Working Time | ≥8 hours |
Weight | ≤0.55kg(with batteries) |
Power Supply | Rechargeable lithium battery(or built-in battery) |
Battery Capacity | 3.7V 3200mAh |
Power Consumption | 2W |
Charging Parameters | DC5V, Maximum current:1A |
