Product Details:
Payment & Shipping Terms:
|
| Data Port: | HDMI Video Output, Micro USB | DOF: | 10mm-100mm |
|---|---|---|---|
| Tube: | Dia. 6mm, Opt. 3.9mm, 2.8mm | IR Function: | IR Thermal Imaging (optional) |
| Application: | Bores, Pipes, Holes And Cavities | Waterproof: | Camera/Object Glass/Tubes: IP67 |
| Highlight: | Portable Industrial Endoscope,Inspection Camera Endoscope |
||

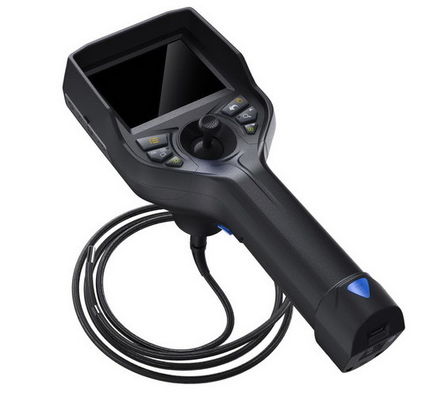

Portable Industrial Endoscope for Visual Inspection of Cavities with Megapixel Camera
Brief Introduction:
iqualitrol videoscope/borescope equips with a video camera at the tip of an insertion probe and a monitor to visualize the inspection. The tip contains also generally LED light source. The insertion probe contains electrical wires and special steel wires to control the tip if the device is articulated.
Tube System:
| Probe Diameter | Φ2.2/Φ2.4/Φ2.8mm | Φ3.9/Φ6mm |
| Camera Pixels | 300,000 | 1,000,000 |
| Image Resolution | 640×480 | 1280×720 |
| Video Resolution | 640×480 | 1280×720 |
| DOF | 3 mm-50mm/5 mm-80mm | 10mm-100mm/5 mm-80mm/50 mm-∞ |
| Field Angle | 90°/120° | |
| Light Source | Front ceramic light/ Rear-mounted optic fiber cold | |
| Illuminance | Maximum: 100000+Lx 1~9 levels adjustable light | |
| Tube Length | 1.5m/3.0m/5.0m/30m (customized for other length) | |
| Protecting Device of Durability | 42mm buffer protection device between tube and handle | |
| Articulation | 360° all-way | |
| Bending Angle | Maximun:190° | |
| Probe Positioning | Damping positioning & articulation lock device | |
| Wi-Fi Transmission | Image transmission to Mobile phone, computer by Wi-Fi(optional) | |
Monitor System:
| Display |
3.5” or 5.1" color IPS display, all sight viewing angle, sunshade design |
| Display Resolution | 1280*960 |
| Zoom In/Out | 8X |
| Language | Chinese/English/Russian and other 8 languages |
| White Balance Suppression | 5 levels adjustable |
| White Balance | Auto white balance, automatically adjusts and eliminates speckles to achieve optimal images. |
| Image Effect | negative film/ black & white/standard |
| Temperature Indication | High temperature alarm |
| IP Level | Probe/tube: IP67 |
| Software Function | Playback, image parameters adjust and rotate |
| Structure | Hand-held integrated design |
| Image/video format | JPEG/MOV |
| Scale | The analog scale can be used to compare and analyze the internal defect and size of the inspected object. |
| Data Port |
HDMI video output, Micro USB port with water &dust proof device |
| Working Time | ≥8h |
| Battery Capacity | 3.7V,3200mAh×2 |
| Power Charge | DC5V, 1A |
| Weight | ≤0.8Kg |
| Compatibility | Interchangeable monitor and tube with different diameters |
| Standard Configuration | Instrument case:1pc; videoscope: 1 set; battery: 2pcs; card reader: 1pc; 32G. TF card: 1pc; charger: 1pc; usb line: 1pc; user manual & certificate: 1 set |
Models Selection Guide:
| View Direction | Model | Main Specifications |
| iT51X 6mm Front view |
iT51X-6015 | Tube diameter 6mm；Intelligent System; One mega pixels；Tube Length 1.5 meters；360° articulation；5.1'' display |
| iT51X-6020 | Tube diameter 6mm；Intelligent System; One mega pixels；Tube Length 2.0 meters；360° articulation；5.1'' display | |
| iT51X 6mm Side view |
iT51X-6015S | Tube diameter 6mm；Intelligent System; One mega pixels；Tube Length 1.5 meters；360° articulation；5.1'' display |
| iT51X-6020S | Tube diameter 6mm；Intelligent System; One mega pixels；Tube Length 2.0 meters；360° articulation；5.1'' display | |
| iT51X 6mm Dual Lens |
iT51X-6015D | Tube diameter 6mm；Intelligent System; One mega pixels；Tube Length 1.5 meters；360° articulation；5.1'' display |
| iT51X-6020D | Tube diameter 6mm；Intelligent System; One mega pixels；Tube Length 2.0 meters；360° articulation；5.1'' display | |
| iT51X 3.8mm Front view |
iT51X-3810S | Tube diameter 3.8mm；Intelligent System; One mega pixels；Tube Length 1.0 meter；360° articulation；5.1'' display |
| iT51X-3815S | Tube diameter 3.8mm；Intelligent System; One mega pixels；Tube Length 1.5 meters；360° articulation；5.1'' display | |
| iT51X 3.8mm Side view |
iT51X-3810S | Tube diameter 3.8mm；Intelligent System; One mega pixels；Tube Length 1.0 meter；360° articulation；5.1'' display |
| iT51X-3815S | Tube diameter 3.8mm；Intelligent System; One mega pixels；Tube Length 1.5 meters；360° articulation；5.1'' display | |
| iT51X 2.8mm Front view |
iT51X-2810 | Tube diameter 2.8mm；Intelligent System; 300,000 pixels；Tube Length 1.0 meters；360° articulation；5.1'' display |
| iT51X-2815 | Tube diameter 2.8mm；Intelligent System; 300,000 pixels；Tube Length 1.5 meters；360° articulation；5.1'' display | |
| iT51X 2.4mm Front view |
iT51X-2410 | Tube diameter 2.4mm；Intelligent System; 450,000 pixels；Tube Length 1.0 meter；360° articulation；5.1'' display |
| iT51X-2415 | Tube diameter 2.4mm；Intelligent System; 450,000 pixels；Tube Length 1.5 meters；360° articulation；5.1'' display | |
| iT51X 2.2mm Front view |
iT51X-2210 | Tube diameter 2.2mm；Intelligent System; 160,000 pixels；Tube Length 1.0 meter；2-way articulation；5.1'' display |
Application:
Power Generation, fossil, nuclear and wind power all rely on the exceptional image resolution, light output and ease of use to inspect turbines, gearboxes, heat exchangers and more. The portability and lightweight of iqualitrol video borescope make transportation to and on job sites a breeze. The availability of both short and long probe length make the iqualitrol video borescope perfect for inspecting all plant assets.
Petrochemical, Oil and gas platforms, refineries and compressor stations all appreciate the portability, durability and lightweight of iqualitrol video borescope. The high resolution image and powerful light output make inspecting the darkest and most remote location easy. Inspect pumps, turbines, rotating machinery, heat exchangers and more.
