Model: | AutoPress AMP2 | Diameter: | φ25mm, φ30mm, φ40mm, φ50mm |
---|---|---|---|
Power: | 1600W | Heating Range: | 0~180℃ |
Dwell Time: | 0~99 Minutes 99 Seconds | Cooling Style: | Water Cooling |
Highlight: | Programmable Hot Mounting Press,Hot Mounting Press 1600W |

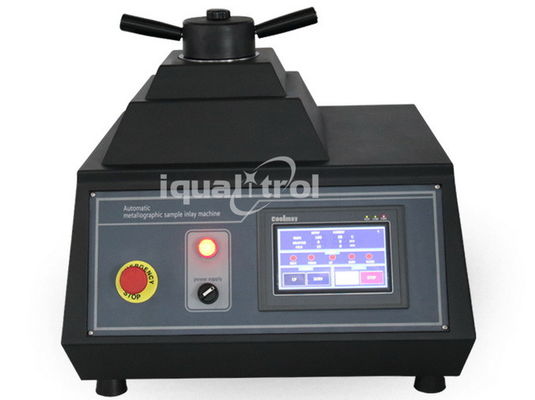

AutoPress AMP2 Programmable High Speed Automatic Hot
Mounting Press with 2 Moulds
Model: AutoPress AMP2
Technical Data Download: iqualitrol Mounting Press AutoPress AMP2
Technical Specifications:
Diameter | φ25mm, φ30mm, φ40mm, φ50mm |
Power supply | AC220V/50HZ/1Ph |
Power Consumption | 1600W |
Heating Range | 0~180℃ |
Dwell Time | 0~99 Minutes 99 Seconds |
Net Weight | 104KG |
Cooling Style | Water Cooling |
Brief Introduction:
The aim of mounting is to handle small or odd shaped specimens and to protect fragile materials, thin layers or coating during preparation as well as to provide good edge retention. Mounting produces specimens with uniform size so that it is easier to handle in automatic holders for further preparation steps.
In hot mounting, the specimen is mounted under heat and pressure with a hot mounting press.
iqualitrol AutoPress AMP2 is an automatic hot mounting press with water cooling function, suitable for almost materials. You only need to place the sample in the mould, select the program number for your specific application and depress the “Start” button. That’s it!
There are 4 moulds with different diameters, available to make two samples simultaneously.
