| Model: | ZXQ-1S | Mould Diameter: | Ф25mm, Ф30mm, Ф40mm (Choose One) |
|---|---|---|---|
| Height: | 115mm, Effective 60mm | Pressure: | Mechanical Pressure, 130bar |
| Heating Temp: | 50~180℃ | Cooling Time: | 0~8min |
| High Light: | Automatic Metallographic Sample Mounting Press,115mm Height Metallographic Sample Mounting Press |
||

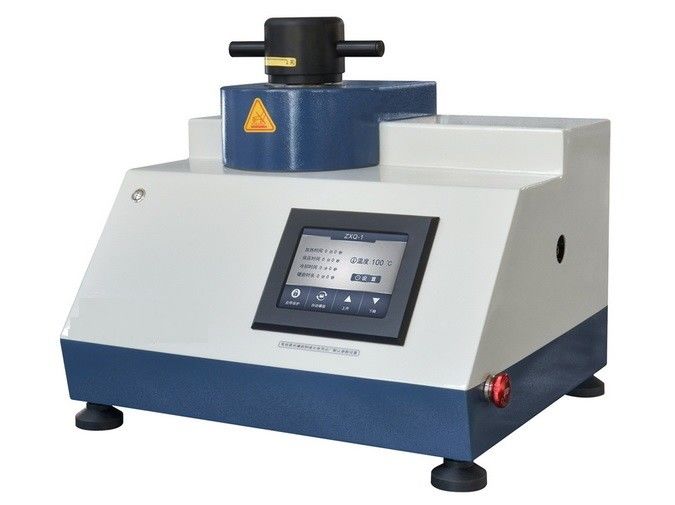

iqualitrol Automatic Metallographic Mounting Press ZXQ-1S
Technical Data Download: iqualitrol Automatic Metallographic Mounting Press ZXQ-1S
Introduction:
The mounting process ZXQ-1S is controlled by the program, which realizes the one-key operation of heating, loading, dwell, cooling and unloading process.
The sample mounting is automatically completed with sound and light alarm function, without the need of the operator on duty. The machine adopts gear motor with stable pressure, and the water cooling system makes sample preparation fast.
Technical Parameters:
| Model | ZXQ-1S |
| Mould Diameter | Ф25mm,Ф30mm,Ф40mm (Choose one) |
| Cavity Height | 115mm, effective 60mm |
| Heating Power | Ф25mm/Ф30mm 1.2W; Ф40mm 1.6kW |
| Pressure | Mechanical pressure, 130bar |
| Electromotor Power | 120W |
| Heating Temperature | 50~180℃ |
| Heating Time | 0~8min |
| Dwell Time | 30s~60min |
| Cooling Time | 0~8min |
| Cooling Method | External water source cooling |
| Power Supply | 220V, 50Hz,10A |
| Dimensions | 463×402×430mm |
| Net Weight | 50kg |
