| Disc Diameter: | 250mm (Optional 200mm, 300mm) | Speed: | 50-1000rpm |
|---|---|---|---|
| Polishing Head: | Speed 5-150rpm | Sample: | Quantity 4 |
| Loading: | Force 5-60N | Time: | Setting 0-3000S |
| High Light: | Single Disc Polishing Machine Metallography,Automatic Polishing Machine For Metallography |
||

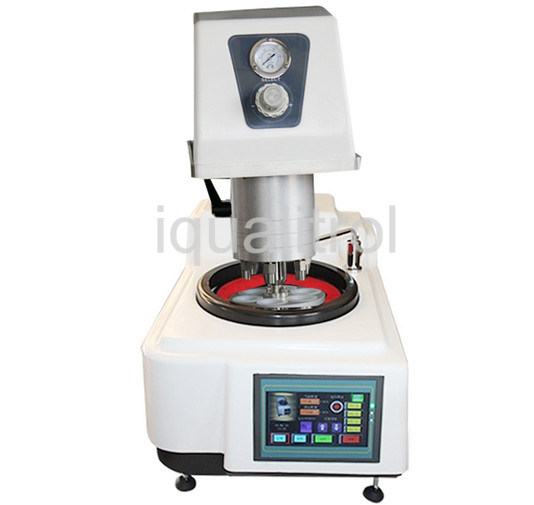

Single Disc Automatic Metallographic Sample Grinding and Polishing Machine with Stepless Speed 50-1000rpm
Model: LMP-3
Product description:
iqualitrol LMP-3 automatic metallographic sample grinding and polishing machine is a single-disc desktop machine, which is multi-purpose for one machine. The whole process of rough grinding, fine grinding and fine polishing of metallographic samples is the ideal equipment for enterprises and scientific research institutes.
iqualitrol LMP-3 has the functions of arbitrary rotation direction of grinding parabolic disc, fast replacement of grinding parabolic disc, multi-sample tester and pneumatic single-point loading.
This machine adopts advanced microprocessor control system, which makes the grinding and polishing disc, the rotation speed of the grinding and polishing head realize the stepless adjustment. The sample preparation pressure, the time setting are intuitive and convenient. It is necessary to change the grinding disc or sandpaper and fabric to complete the grinding and polishing process. This allows the machine to exhibit a wider range of applications.
It has the characteristics of stable rotation, safety and reliability, low noise and the use of cast aluminum base to increase the rigidity of grinding and polishing.
Technical Parameters:
| product brand | iqualitrol | Product parameters | |
| product name | Metallographic Grinding and Polishing Machine | Grinding disc diameter | φ250mm |
| Product color | White color | Polishing disc diameter | φ250mm |
| Product number | LMP-3 | Quantity of disc | 1 |
| product material | ABS | Control mode | Single disk / single control |
| Feature | 100% Eco-friendly/Soft/Lovely | Rotation speed |
Stepless 50-1000rpm, 400,600,800,1000r/min fixed speed |
| Quality Control | Advanced equipment and experienced QC team will check during processing and before packing | Motor voltage | AC220V/50Hz, 870W |
| Delivery Term | 20-30 working days after receiving T/T 30% deposit | Operation method | Automatic |
| Weight | 90Kg | Machine size (L*W*H | 798*484*700mm |
| 1. The grinding and polishing disc of the machine is connected with the drive shaft. For the first time installation, it is better to use a rubber hammer to tap the double disc down to the axial direction to close fit. Otherwise, it will affect the performance of the machine.2. The unit must be well grounded and the grounding device is reliable. 3. The inlet and outlet pipes are required to be unobstructed, and the joints must not leak. 4. After each operation, the equipment should be cleaned and maintained. 5. When the machine is found to have an abnormal sound, stop it immediately for inspection. |
|||
