AC220V Metallographic Grinding And Polishing Machine 200mm Diameter

Name: AC220V Metallographic Grinding And Polishing Machine 200mm Diameter
Brand: iqualitrol
SKU: Mopao-260E
Price: 1.00 USD
Availability: InStock
Rating: 4.9 (199 reviews)

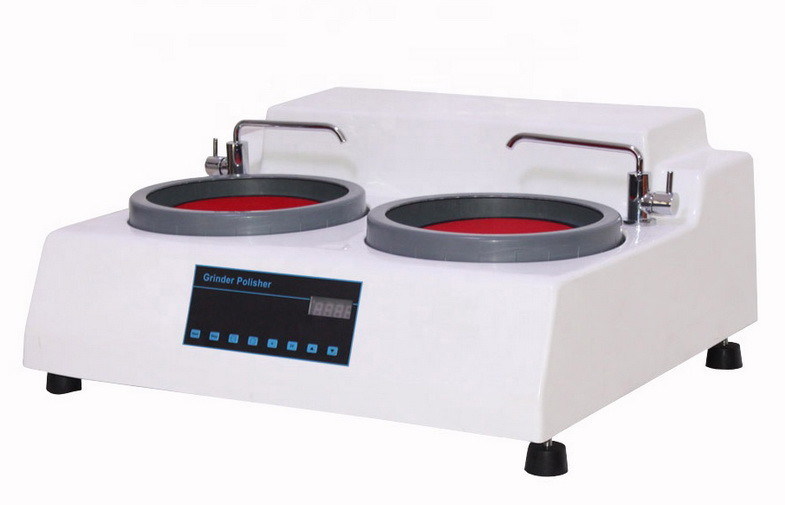

Large Image : AC220V Metallographic Grinding And Polishing Machine 200mm Diameter

Product Details:

Place of Origin:	Dongguan/China
Brand Name:	iqualitrol
Certification:	CE
Model Number:	Mopao-260E

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Price:	Negotiable
Packaging Details:	Plywood Box
Delivery Time:	20 Working Days
Payment Terms:	T/T
Supply Ability:	50 Sets per Month

Contact Now

Detailed Product Description

Model:	Mopao-260E	Diameter:	200mm (Opt. 250mm)
Speed:	50-600rpm	Rotate Direction:	Clockwise/Anti-clockwise
Disc Qty:	2	Power:	AC220V/50Hz/1Ph, 550W
High Light:	AC220V Metallographic Grinding And Polishing Machine , Metallographic Grinding And Polishing Machine 200mm

Water Cooling Manual Metallographic Grinding and Polishing Machine Stepless Speed 50-600rpm

Model: Mopao-260E

iqualitrol Mopao-260E is applicable to rough grinding, fine grinding and polishing of metallographic samples, it has microprocessor control system, with a speed of 50-600rpm.

The machine is an indispensable equipment in making the metallographic sample, and has a cooling device to cool the sample during grinding and polishing, thus preventing the damage of the metallographic structure caused by overheat. It is easy to use, safe and reliable, an ideal preparation equipment for the labs of factories, research institutes and universities and colleges.

Technical Parameters:

Model	Mopao-260E
Disc Diameter	203mm (Opt. 250mm)
Rotation speed	50-600rpm
Rotate Direction	Clockwise/Anticlockwise
Power Supply	AC220V/50Hz/1Ph
Disc Quantity	2
Power Consumption	550W
Dimension	725x710x310mm
Net weight	50kg
