Water Cooling Metallographic Grinding And Polishing Machine 200mm Diameter

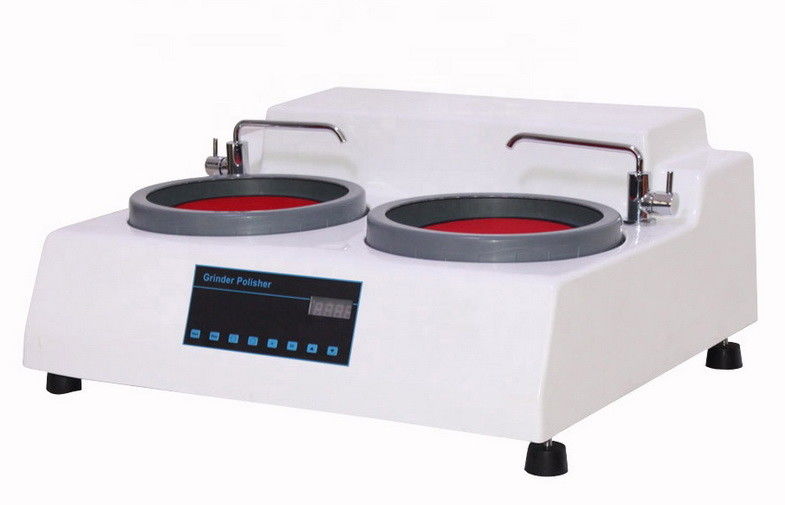

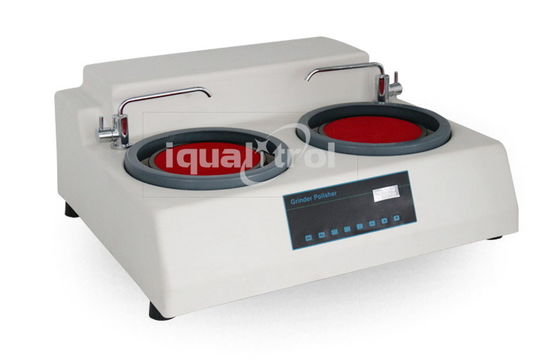

Large Image : Water Cooling Metallographic Grinding And Polishing Machine 200mm Diameter

Product Details:

Brand Name:	iqualitrol
Model Number:	Mopao-260E

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Packaging Details:	Plywood Box
Delivery Time:	20 Working Days
Payment Terms:	T/T
Supply Ability:	50 Sets per Month

Contact Now

Detailed Product Description

Model:	Mopao-260E	Diameter:	200mm (Opt. 250mm)
Speed:	50-600rpm	Rotate Direction:	Clockwise/Anti-clockwise
Disc Qty:	2	Power:	AC220V/50Hz/1Ph, 550W
Highlight:	AC220V Metallographic Grinding And Polishing Machine , Metallographic Grinding And Polishing Machine 200mm

Water Cooling Manual Metallographic Grinding and Polishing Machine Stepless Speed 50-600rpm

Brief Introduction:

iqualitrol Mopao-260E is applicable to rough grinding, fine grinding and polishing of metallographic samples, it has microprocessor control system, with a speed of 50-600rpm.

The machine is an indispensable equipment in making the metallographic sample, and has a cooling device to cool the sample during grinding and polishing, thus preventing the damage of the metallographic structure caused by overheat.

Mopao-260E is easy to use, safe and reliable, an ideal preparation equipment for the labs of factories, research institutes and universities and colleges.

Technical Specifications:

Model	Mopao-260E
Disc Diameter	203mm (Opt. 250mm)
Rotation speed	50-600rpm
Rotate Direction	Clockwise/Anticlockwise
Power Supply	AC220V/50Hz/1Ph
Disc Quantity	2
Power Consumption	550W
Dimension	725x710x310mm
Net weight	50kg

Tag:

Automatic Grinding and Polishing Machine,

Metallographic Grinder Polisher,

Metallographic Grinding Polishing Machine

Contact Details

Dongguan Quality Control Technology Co., Ltd.

Contact Person: Mr. Raymond Chung

Tel: 86-13711988687

Fax: 86-769-22784276
