|Disc Diameter φ203mm
|Rotation Speed 1400rpm
|Stable Running, Easy Operation
203mm Grinding And Polishing Equipment,
Grinding And Polishing Equipment 1400rpm

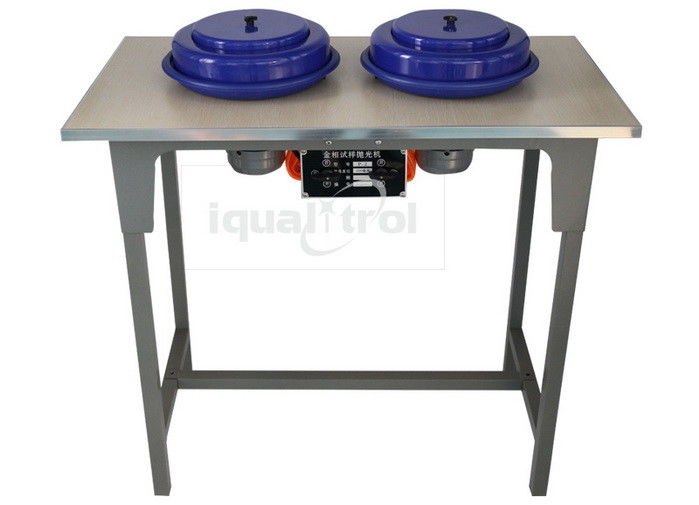

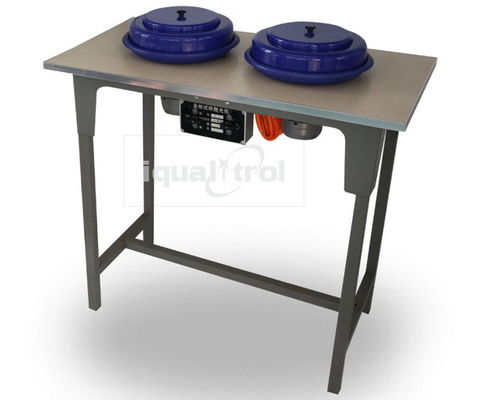

Double Disc Diameter 203mm Low Noise Metallographic Polishing Machine with Speed 1400rpm
In the process of Metallographic sample preparation, polishing is a main procedure. After polished on the machine, the sample surface is like a mirror. iqualitrol P-2 Metallographic sample polishing machine is a classic polishing equipment with steady running,small noise,convenient operation and maintenance.
iqualitrol P-2 meets the polishing requirement of all kinds of materials.This machine is suitable for factories and mines enterprises,colleges and universities,scientific research institution.
|Grinding/polishing disc diameter
|1400r/min (900r/min alternative)
|888mm x478mm x915mm
Polishing discs are covered with soft cloth impregnated with abrasive diamond particles and an oily lubricant or water lubricant.
Particles of two different grades are used: a coarser polish - typically with diamond particles 6 microns in diameter which should remove the scratches produced from the finest grinding stage,
and a finer polish – typically with diamond particles 1 micron in diameter, to produce a smooth surface.
Before using a finer polishing wheel the specimen should be washed thoroughly with warm soapy water followed by alcohol to prevent contamination of the disc. The drying can be made quicker using a hot air drier.
Mechanical polishing will always leave a layer of disturbed material on the surface of the specimen. Electropolishing or chemical polishing can be used to remove this, leaving an undisturbed surface.
Contact Person: Mr. Raymond Chung
Features: minimize the wearing of the sample, eliminate the surface stress and bring excellent flatness with less stress deformation
Application: Titanium, Aluminium, pure Copper and Copper alloys, Aluminium alloys, steel and Nickel-based alloys
piezoelectric vibratory plate: Low power consumption& noise design
Disc Replace: Easily replacement design on disc, convenient to change and clean
