Product Details:
Payment & Shipping Terms:
|
Application: | Health And Epidemic Prevention, Drug Testing, Livestock, Aquaculture, Scientific Research | Auto-defrost: | Original Rapid Heat Pump Defrost Technology |
---|---|---|---|
Air Current Cycling: | Keep Temperature And Humidity Continuous And Stable | Temp Sensor: | Short Response Time, Low Self-heating Temperature |
ISH-100: | Internal 610×490×390mm, 100L | ISH-400: | Internal 1050×600×640mm, 400L |
Highlight: | Programmable Biochemical Incubator,PID Control Biochemical Incubator,iqualitrol Biochemistry Incubator |

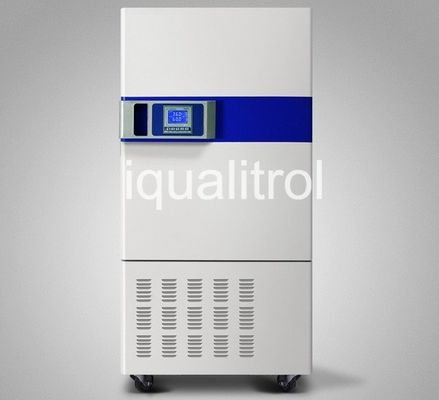

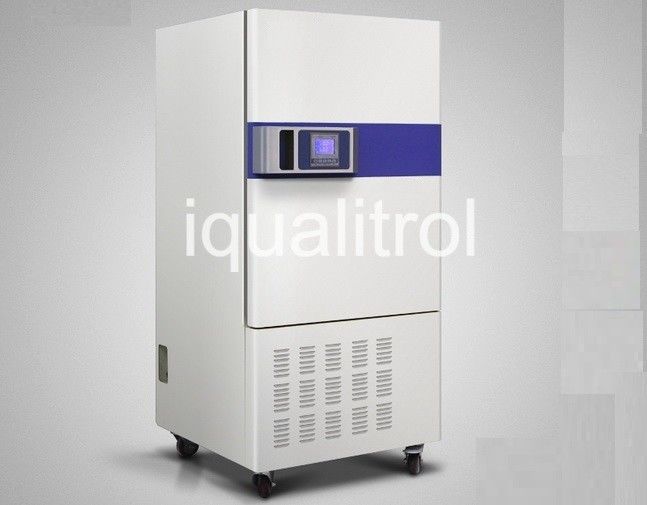

Double Layer Isolation Programmable PID Control Biochemical Incubator
for Drug Testing
Biochemical Incubator:
Use analysis of the BOD determination of water, a constant equipment for environmental protection, health and epidemic prevention, drug testing, livestock, aquaculture, scientific research and other production department.
It can provide a stable temperature environment, large temperature range with the function of cooling and heating, satisfy culture and preservation of cell, microbe, and plant growth test.
According to China pharmacopoeia requirements, AS3350 of Australia, FDA of the united states, ENICH and other related standards; For long-term acceleration experiments and forced degradation experiments.
Technical Parameters:
Product model | Biochemical Incubator | ||||||
iSH-100 | iSH-150 | iSH-250 | iSH-400 | ||||
Convection Mode | Forced Convection | ||||||
Control System | Microprocessor PID | ||||||
Temp. Range | 0~60℃ | ||||||
Temp. Accuracy | 0.1℃ | ||||||
Temp. Fluctuation (10-40℃) |
±0.5℃ | ||||||
Temp. Uniformity(℃)(10-40℃) | ±1 | ±1 | ±1 | ±1.5 | |||
Timer Range | 0~99 Hours,0~9999 minutes,can be choose | ||||||
Working environment |
Ambient temperature:10~30℃, Humidity<70% | ||||||
Insulation materials | Imported environmental protection type material | ||||||
External Dimensions (H×W×D) |
1250×630 ×680 |
1410×650 ×680 |
1730×650 ×740 |
1700×745 ×930 |
|||
Internal Dimensions (H×W×D) |
610×490 ×390 |
760×510 ×390 |
1100×510 ×450 |
1050×600 ×640 |
|||
Interior Volume(L) | 100 | 150 | 250 | 400 | |||
Interior steel materials | SUS304# Stainless steel | ||||||
Quantity of shelf | 3 | 3 | 4 | 4 | |||
Power Consumption(W) | 850 | 1000 | 1100 | 1100 | |||
Power supply | Single phase AC220V/50Hz | ||||||
Net Weight(KG) | 95 | 107 | 135 | 158 | |||
Net Weight(KG) | 120 | 133 | 162.5 | 188 | |||
Shipping Dimensions (H×W×D) |
1450×730 ×830 |
1605×760 ×830 |
1935×760 ×890 |
1907×815 ×1090 |
Product introduction:
●World famous compressor: balanced refrigeration technology, auto defrost, multiple security system, long time running, environmental protection, high efficiency and energy saving.
●Auto-defrost function: original rapid heat pump defrost technology, for continuous operation, effectively prevent frost because of continuous operation of evaporator.
●Refrigeration effect manual control system: meet customer’s terrible work environment.
●Imported DuPont SUVA R134 an environmental refrigerant. For cleaner world and for better work condition.
●To save energy, to reduce the cost.
ALLFLOW Perfect Air Current Cycling:

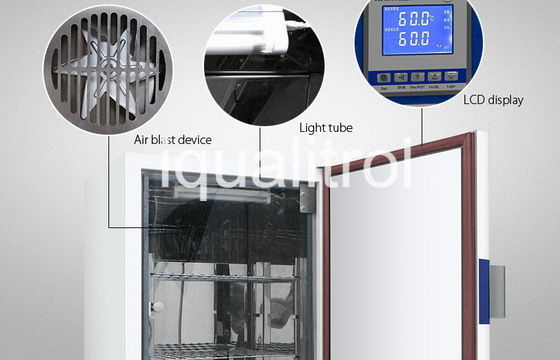

●ALLFLOW air current cycling: perfect forced convection, maximum samples number of working room, minimum temperature recovery time after the opening, world famous axial fan, perfect air current design, ensure an ideal result of samples culture.
●ALLFLOW air current cycling: keep temperature continuous and stable, keep humidity continuous and stable, ensure perfect sample culture.
ALLSENS Programmable PID Control:
●Integrated, dot-matrix LCD display, Chinese and English subtitles, design for the highest operational comfort.
●Display parameters: temp humidity, cycle, run time, run/stop.
●Adaptive PID controller precisely control the temperature and humidity, prevent temperature soaring, keep working room temperature stable and uniformity.
●User password protection, built-in multifunctional memory menu, connect to multiple devices (up to 16 units), real-time monitoring.
●Programmable multi-sections control, to meet customer needs, temperature and humidity control up to 30 sets. Time setting:0-99h, 0-9999m, programs can be executed automatically cycles.
●Set operations with beep tips
●Remote-controlled operation, with programmable software (option). Bacteria-free culture with UV disinfection (meet Mold incubator).
Excellent Imported Sensor:
●Imported industrial sensor PT100, short response time, low self-heating temperature.
Efficient Isolation Design:
●Design of double-layer isolation, reduce power consumption, environmental protection concept, energy conservation.

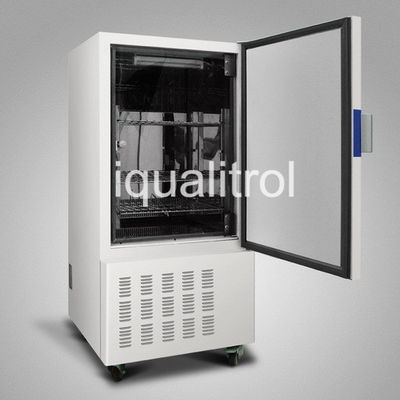

●Internal isolated door design, easy observation of working room samples, keep temperature stability of working room.
Ergonomic Design:
●Laboratory of classical color design, international fashion design, arc-shaped design, for highest operational comfort.
●Integrated design that contains original outside handle and LCD screen, ergonomic structure, comfortable viewing angle, convenient to open the outside door and operate interface.
●Interval and number of mesh shelf can be adjusted according to customer requirements. Maximum capacity to meet customer needs.
●Comfortable vertical structure, maximize work chamber, working room in the upper, convenient to take.
●Double door design, easy observation samples, keep temperature stability, with bell-type lighting system.
Modern Manufacturing Processes:
●Sheet metal parts use laser cutting and CNC bending technology. Cold-rolled sheets use three line of acidification anti-rust technology. Incubator surface use workmanship of spraying plastics.
Easy to Clean:
●Internal surface is smooth and less weld, easy cleaning and maintenance.
●Pull multilayer shelf design, less metal accessories, easy to clean.
●Drainage design of chamber humidification collecting tank. User can discharge water as required to avoid bacteria.
Convenient Maintenance:
●Liquid crystal micro-computer controller with diagnostic function. Display operating parameters including historical record, temperature and humidity data.
●Electrical control components and working room are installed separately. installed behind incubator, easy to maintenance.
Secure and Efficient Protection Concept:
●Multiple over temperature protection function, sound and light alarm.
●Automatic double over temperature protection function.
●All electronic components are UL certified.
●All over temperature protection devices meet Germany standard DIN standard D12880 Class 3.1.
