Product Details:
Payment & Shipping Terms:
|
| Model: | HMP-1A | Pressure Mode: | Single Point Pneumatic Pressure |
|---|---|---|---|
| Speed: | 100-1000rpm, Quick Setting 300, 500, 800, 1000rpm | Diameter: | Single Disc, Diameter 250 Mm |
| High Light: | Metallographic Grinding And Polishing Machine 120r/min,Metallographic Grinding And Polishing Machine 20r/min,Single Disc Polisher |
||

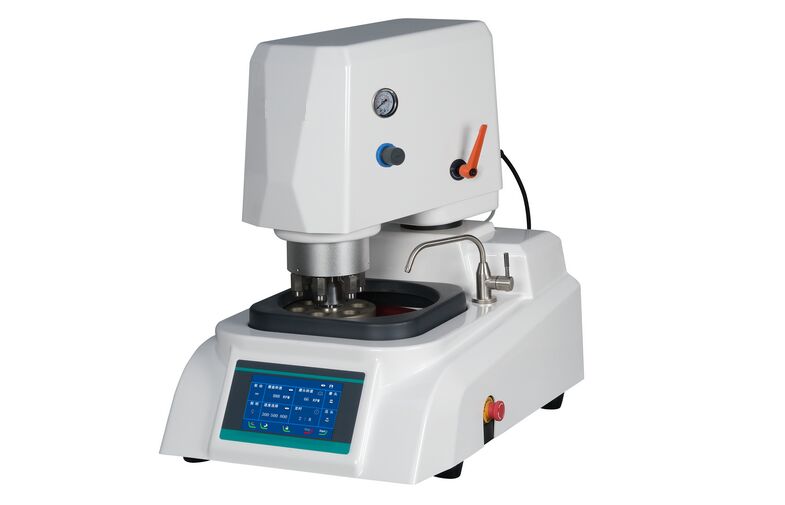

Single Disc 250mm Water Cooling Automatic Grinding and Polishing Machine Stepless Speed
Technical Data Download: iqualitrol Polishing Machine HMP-1A
Brief Introduction:
HMP-1A single disc automatic grinding and polishing machine which integrates pre-grinding, grinding and polishing.
By using single-chip microcomputer technology to control through touch screen, grinding disc is driven by DC brushless motor, V belt is driven, grinding head is driven by stepping motor, synchronous belt is driven by stable rotation, low noise, long life, safety and reliability.
With its own cooling device, the sample can be cooled during grinding to prevent the failure of metallographic structure due to overheating of the sample.
It is an ideal choice for metallographic sample preparation equipment in factories, scientific research units and laboratories of colleges and universities.
Technical Specification:
| Product model | HMP-1A |
| Number of grinding discs | 1 |
| Grinding disc diameter | 250 mm |
| Speed of grinding disc | 100-1000rpm, Quick setting 300, 500, 800, 1000rpm |
| Rotating direction of grinding disc | clockwise or counterclockwise |
| Grinding head motor | Brushless motor 1100 W |
| Grinding head speed | 20-120 r/min |
| Direction of rotation of grinding head | clockwise |
| Grinding head motor power | 200W stepper motor |
| Timing Adjustable | 0-99min |
| Pressure mode | Single point pneumatic pressure |
| Pressure | 0-60 N |
| Sample holder quantity | 6 |
| Sample gripping specification | 30mm, (optional 22mm, 45mm. support customized) |
| Power supply | AC220V/50Hz/1Ph |
| Shape dimensions | 475*660*710 mm |
