Double Disc 250mm Stepless Speed Automatic Grinding Polishing Machine Touch Controller

Double Disc 250mm Stepless Speed Automatic Grinding Polishing Machine Touch Controller
Double Disc 250mm Stepless Speed Automatic Grinding Polishing Machine Touch Controller Double Disc 250mm Stepless Speed Automatic Grinding Polishing Machine Touch Controller Double Disc 250mm Stepless Speed Automatic Grinding Polishing Machine Touch Controller Double Disc 250mm Stepless Speed Automatic Grinding Polishing Machine Touch Controller

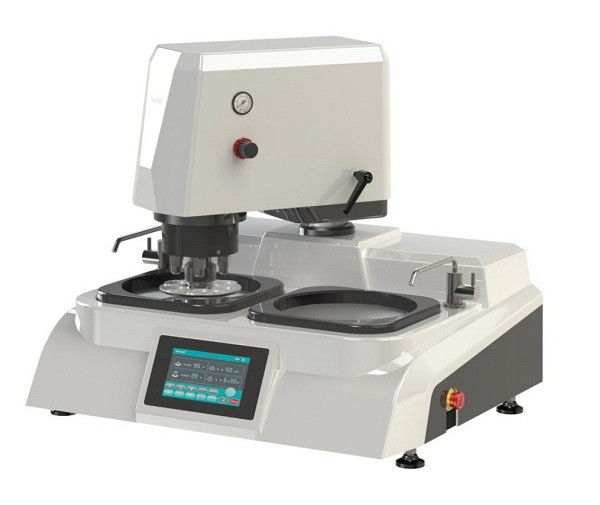

Large Image :  Double Disc 250mm Stepless Speed Automatic Grinding Polishing Machine Touch Controller

Product Details:
Brand Name: iqualitrol
Model Number: HMP-2A
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Packaging Details: Plywood Box
Delivery Time: 10 Working Days
Payment Terms: T/T
Supply Ability: 10 Sets per Month
Detailed Product Description
Model: HMP-2A Pressure Mode: Single Point Pneumatic Pressure
Disc Diameter: Double Disc, Diameter 250 Mm Grinding Motor: Brushless Motor 1100W
Sample Holder: 6*30mm, (optional 22mm, 45mm. Support Customized) Disc Speed: 100-1000rpm, Quick Setting 300, 500, 800, 1000rpm
Highlight:

iqualitrol Automatic Grinding and Polishing Machine

,

CE Automatic Grinding and Polishing Machine



Double Disc 250mm Stepless Speed Automatic Grinding and
Polishing Machine with 6 Samples Head



Technical Data Download: iqualitrol Polishing Machine HMP-2A



Click URL to Watch Video: https://youtu.be/Qim5sVh05Uc



Brief Introduction:

HMP-2A double disc automatic grinding and polishing machine which integrates pre-grinding, grinding and polishing.



By using single-chip microcomputer technology to control through touch screen, grinding disc is driven by DC brushless motor, V belt is driven, grinding head is driven by stepping motor, synchronous belt is driven by stable rotation, low noise, long life, safety and reliability.



With its own cooling device, the sample can be cooled during grinding to prevent the failure of metallographic structure due to overheating of the sample.



HMP-2A is an ideal choice for metallographic sample preparation equipment in factories, scientific research units and laboratories of colleges and universities.



Technical Specifications:

Product model HMP-2A
Number of grinding discs 2
Grinding disc diameter 250 mm
Speed of grinding disc

100-1000rpm,

Quick setting 300, 500, 800, 1000rpm

Rotating direction

of grinding disc

clockwise or counterclockwise
Grinding head motor Brushless motor 1100 W
Grinding head speed 20-120 r/min
Direction of rotation of grinding head clockwise
Grinding head motor power 200W stepper motor
Timing Adjustable 0-99min
Pressure mode Single point pneumatic pressure
Pressure 0-60N
Sample holder quantity 6
Sample gripping specification

30mm, (optional 22mm, 45mm.

support customized)

Power supply AC220V/50Hz/1Ph
Shape dimensions 475*660*710 mm
