Vision Horizontal Video Measuring Projector HTV-3015 Optical Measuring System Instrument

China Vision Horizontal Video Measuring Projector HTV-3015 Optical Measuring System Instrument supplier
Vision Horizontal Video Measuring Projector HTV-3015 Optical Measuring System Instrument supplier Vision Horizontal Video Measuring Projector HTV-3015 Optical Measuring System Instrument supplier Vision Horizontal Video Measuring Projector HTV-3015 Optical Measuring System Instrument supplier Vision Horizontal Video Measuring Projector HTV-3015 Optical Measuring System Instrument supplier Vision Horizontal Video Measuring Projector HTV-3015 Optical Measuring System Instrument supplier Vision Horizontal Video Measuring Projector HTV-3015 Optical Measuring System Instrument supplier

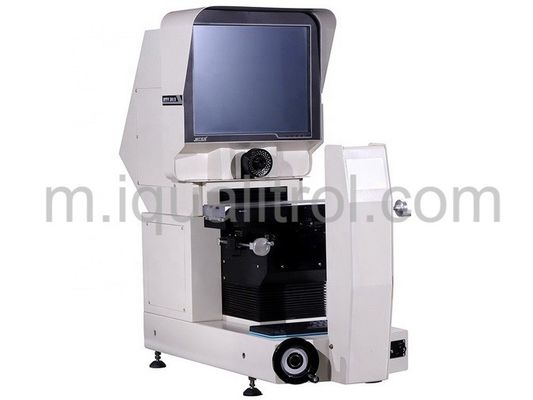

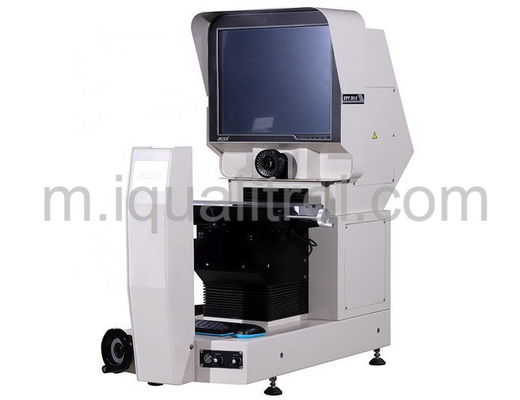

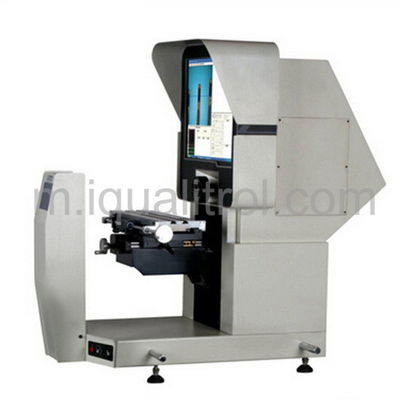

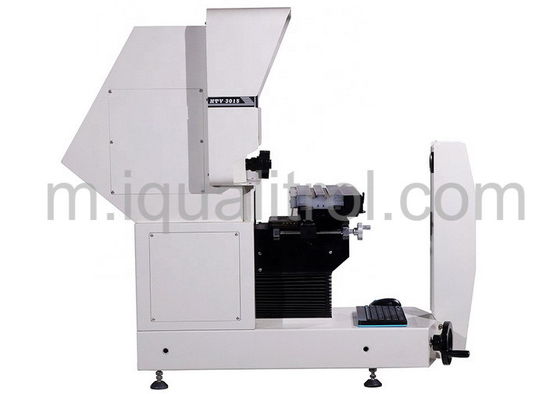

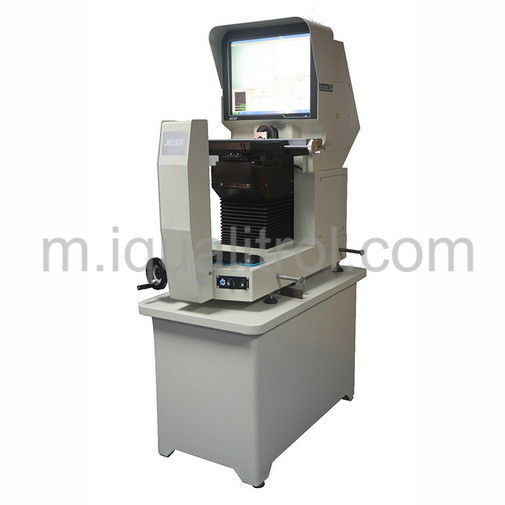

Large Image :  Vision Horizontal Video Measuring Projector HTV-3015 Optical Measuring System Instrument

Product Details:

Place of Origin: Dongguan/China
Brand Name: iqualitrol
Certification: CE
Model Number: iVideo-E67

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Plywood Box
Delivery Time: 20 Working Days
Payment Terms: T/T
Supply Ability: 30 Sets per Month
Contact Now
Detailed Product Description
Accuracy: ≤3+L/200(um) Video: 1/3” Color CCD Camera
Lens: 0.7~4.5x Detented Zoom Lens Magnification: 30X~190X
Illumination: LED Surface And Contour Illumination Function: Printing,saving And Exporting Data



Vision Horizontal Video Measuring Projector HTV-3015 Optical Measuring System Instrument



Features:

1, Lifting system of HTV-3015 adopts linear guide rail and precision screw drive, which makes the lift drive more comfortable and stable;



2, Return error within 2um by precision toothless rod and fast movement locking device;



3, High accuracy linear scales and precision working stage, ensure machine accuracy within 3+L/200 um;



4, Detented zoom lens and HD color digital camera, ensure clear image without distortion;



5, With programmable surface 4-ring 8-division LED cold light and contour LED parallel illumination, it can control the brightness of the 4-ring 8-division independently;



6, With powerful iMeasuring2.1 software system , to enhance the control quality;



7, Optional imported contact probes and 3D measuring software, it can help upgrade the machine to be coordinate measuring machine;



Specifications:

Model

iVideo-E67

HTV-3015

iVideo-E68

HTV-3020

X/Z-axis Travel 300×150mm 300×150mm
Y-axis Travel 150mm 200mm
Accuracy ≤4+L/200(um)
Repeatablitily ±2um
Operation Mode Manual
Sway Range ±15”
Video Device 1/3” color CCD camera,6.5x Detented zoom lens
Screen Dimension 19” LCD Touch Screen Monitor
Video Magnification 30X~190X(it can extend to 15X~380X)
Working Distance 92mm
Measuring Software Quick Measuring 2.0
Max.Load Capacity 15Kg
Suitable Environment Workshop and metrology room
Dimension(D×W×H) 760×650×1760mm
Net Weight 200Kg



Standard Delivery:

Measuring Software Color CCD Camera Detented Zoom Lens
Calibration Block Capture Card LED Illumination
19” LCD Touch Screen Built-in PC System Operation Manual



Vision Horizontal Video Measuring Projector HTV-3015 Optical Measuring System Instrument
