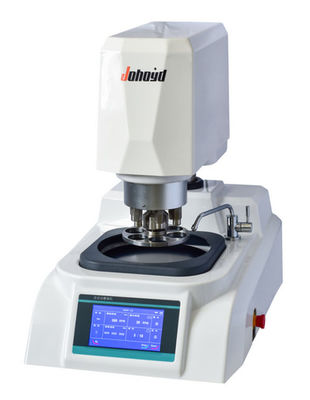

Metallographic Grinding Polishing Machine Single Point And Center Pneumatic Pressure

Metallographic Grinding Polishing Machine Single Point And Center Pneumatic Pressure
Metallographic Grinding Polishing Machine Single Point And Center Pneumatic Pressure

Large Image :  Metallographic Grinding Polishing Machine Single Point And Center Pneumatic Pressure

Product Details:
Place of Origin: Dongguan/China
Brand Name: iqualitrol
Certification: CE, ISO
Model Number: HMP-1AB
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: negotiate in details
Packaging Details: Plywood Box
Delivery Time: 3 Working Days
Payment Terms: T/T, Western Union
Supply Ability: 50 Sets per Month
Detailed Product Description
Disc Qty: Double Disc, Diameter 254mm Rotate Speed: Stepless Speed 100-1000r/min
Rotate Direction: Clockwise And Anticlockwise Rotation Grinding Head: Stepping Motor 200W
Locking Method: Automatic Grinding Head Locking Method Clamp Sample: Thickness 8-22mm, Diameter 30mm
High Light:

Anticlockwise Rotation Metallographic Grinding Polishing Machine


254mm Metallographic Grinding Polishing Machine


1000r/min Metallographic Grinding And Polishing Machine


Automatic metallographic sample grinding polishing machine Support Single point and center pneumatic pressure


Model: HMP-1AB


Product overview:

Iqualitrol HMP-1AB is a single-disc automatic grinding and polishing machine integrating pre-grinding, grinding and polishing. It adopts single chip microcomputer technology to control through touch screen, the grinding and polishing disc is driven by DC brushless motor, V-belt is used for transmission, the grinding head is driven by stepping motor, and the synchronous belt is used for transmission.


Iqualitrol HMP-1AB has the characteristics of stable rotation, low noise, long life, safety and reliability; You can adjust the rotation speed of the grinding head and the grinding and polishing plate according to the user's needs, set the pressure, set the sample preparation time, and adapt to different needs;


Iqualitrol HMP-1AB comes with a lighting system, which is convenient to take and place samples; comes with a cooling device, which can be used during grinding cool the sample to prevent damage to the metallographic structure due to overheating of the sample. It is an ideal choice for metallographic sample preparation equipment in factories, scientific research units and laboratories of universities and colleges.


Technical parameters:

Product model HMP-1AB
Number of grinding discs 1
Diameter of grinding and polishing disc 254mm
Rotation speed of grinding and polishing plat

stepless speed regulation 100-1000r/min

quick set four-speed 300/500/800/1000r/min

Rotation direction of grinding and polishing disc Forward and reverse
Grinding disc motor power 1.1KW
Rotation direction of grinding head Clockwise
Rotating speed of grinding head 0—150r/min
Grinding head motor Stepping motor 200W
Grinding head locking method automatic
Timing adjustable time 0-99min
Pressure adjustment method Automatic pressure regulation inside the system
Pressurization method Single point pneumatic pressure and center pneumatic pressure
Pressurized pressure Center: 0-150N (common range 40-120N) Single point: 0-90N
Number of specimen clamps 6
Clamping sample thickness 8-22mm (can be customized)
Specimen clamping specifications Standard Ф30, (Ф22 Ф30 Ф45 any specifications are optional, special specifications can be customized)
power supply 220V 50Hz
Total power 1.8KW
Appearance size 475*660*710mm
weight 80kg
