| Grinding Disc: | Double Disc, Diameter φ 250mm | Rotate Direction: | Clockwise And Anticlockwise |
|---|---|---|---|
| Speed: | Stepless Speed Regulation 100-1000r/min | Locking Mode: | Automatic Grinding Head Locking Method |
| Pressure Method: | Single Point Pneumatic Pressure And Center Pneumatic Pressure | Sample Clamp: | Thickness 8-22mm, Diameter 30mm, 6pcs |
| Highlight: | Metallographic Automatic Grinding Polishing Machine,Single Pneumatic Automatic Grinding Polishing Machine,Center Pneumatic Metallographic Grinding Polishing Machine |
||
Stepless Speed Automatic Grinding Polishing Machine Both Single and Center Pneumatic Pressure
Technical Data Download:

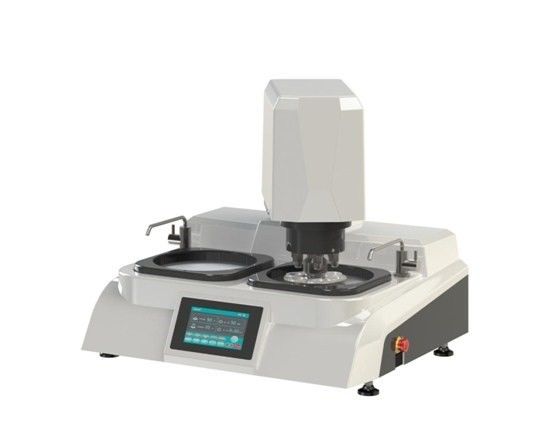

iqualitrol Metallographic Grinding Polishing HMP-2AB
Brief Introduction:
iqualitrol HMP-2AB is a double-disc automatic grinding and polishing machine integrating pre-grinding, grinding and polishing. It adopts single chip microcomputer technology to control through touch screen, the grinding and polishing disc is driven by DC brushless motor, V-belt is used for transmission, the grinding head is driven by stepping motor, and the synchronous belt is used for transmission.
iqualitrol HMP-2AB has the characteristics of stable rotation, low noise, long life, safety and reliability; You can adjust the rotation speed of the grinding head and the grinding and polishing plate according to the user's needs, set the pressure, set the sample preparation time, and adapt to different needs;
iqualitrol HMP-2AB comes with a lighting system, which is convenient to take and place samples; comes with a cooling device, which can be used during grinding Cooling the sample to prevent damage to the metallographic structure due to overheating of the sample. iqualitrol HMP-2AB is an ideal choice for metallographic sample preparation equipment in factories, scientific research units and laboratories of universities and colleges.
Technical Specifications:
| Product model | HMP-2AB |
|
Number of grinding discs |
2 Grinding discs |
|
Diameter of grinding and polishing disc |
254mm |
|
Rotation speed of grinding and polishing plate |
stepless speed regulation 100-1000r/min quick set four-speed 300/500/800/1000r/min |
|
Rotation direction of grinding and polishing disc |
Clockwise and Anticlockwise |
| Grinding disc motor power | 1.1KW |
|
Rotation direction of grinding head |
Clockwise |
|
Rotating speed of grinding head |
0—150r/min |
| Grinding head motor | Stepping motor 200W |
|
Grinding head locking method |
automatic |
| Timing adjustable time | 0-99min |
|
Pressure adjustment method |
Automatic pressure regulation inside the system |
| Pressure method | Single point pneumatic pressure and center pneumatic pressure |
| Pressurized pressure | Center: 0-150N (common range 40-120N) Single point: 0-90N |
|
Number of specimen clamps |
6 |
|
Strength of specimen thickness |
8-22mm(can be customized) |
|
Specimen clamping specifications |
Standard Ф30, (Ф22 Ф30 Ф45 any specifications are optional, special specifications can be customized) |
| power supply | 220V 50Hz |
| Total power | 2.8KW |
| Dimensions | 755*660*710mm |
| weight | 100kg |
