AOS-CHECK Geometry Measuring Software for 2D Vision Measuring Machine

AOS-CHECK Geometry Measuring Software for 2D Vision Measuring Machine
AOS-CHECK Geometry Measuring Software for 2D Vision Measuring Machine

Large Image :  AOS-CHECK Geometry Measuring Software for 2D Vision Measuring Machine

Product Details:
Place of Origin: Dongguan/China
Brand Name: iqualitrol
Certification: CE, ISO
Model Number: AOS-CHECK
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: negotiate in details
Packaging Details: Carton Box
Delivery Time: 3 Working Days
Payment Terms: T/T, Western Union
Supply Ability: 100 Sets per Month
Detailed Product Description
Model: AOS-CHECK Easy Operation: Just Click Measuring Button After Set Well Program
Quick Measuring: Quickly Measure Single Specimen, But Also Can Measure All The Same Specimens In The Field Of View High Accuracy: Measuring Software To Ensure The Measuring Accuracy
Function: With Multiple Pointing Method, Ensure To Get Accurate Point Application: 2D Vision Measuring Machine
High Light:

2D Vision Geometry Measuring Software


2D Vision Measuring Machine Software


2D Vision Measuring Machine Geometry Software


AOS-CHECK Geometry Measuring Software For 2D Vision Measuring Machine


Brief Introduction:

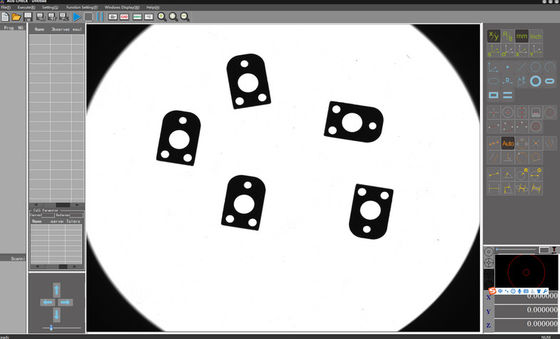

iqualitrol AOS-CHECK is a geometry measuring software, can be used with manual/automatic vision measuring system, one touch inspection system, measuring microscopes, etc. It has the features of:


Easy Operation: Just click measuring button after set well program, the software will work out all the necessary dimensional value in a few seconds. It also can automatically recognize program, put the specimens on stage, software can automatically recognize and recall the corresponding program to complete the measurement (this functions of for one touch inspection system).


Quick measuring, not only quickly measure single specimen, but also can measure all the same specimens in the field of view, realize simultaneously measure multiple specimens.


High Accuracy: no focus distance caused by segment gap, no deformation, with the advantages of measuring software to ensure the measuring accuracy.


Software Function:

3.1, Measurement of point, line, circle, angle distance, rectangle and screw thread.

3.2, With multiple pointing method, ensure to get accurate point.


3.3, According to basic image element to construct the requested measuring result, can realize multiple combination measurement.

3.4, Available to realize user-defined coordinate to measure specific specimens.


3.5, Intersecting, bisecting, perpendicularity, parallel, tangent function, more intuitive measurement of customer size.

3.6, Has the function of report, according to the measurement result of customer demand can output Word, Excel and Txt format report.


3.7, With SPC function, SPC can control the size according to customer requirement.

3.8, Users can set tolerances according to their own product specifications. The software can automatically judge good or bad products according to tolerances and make OK or NG status display at the same time.


3.9, CAD output can make the measurement results export in the way of DXF file.
