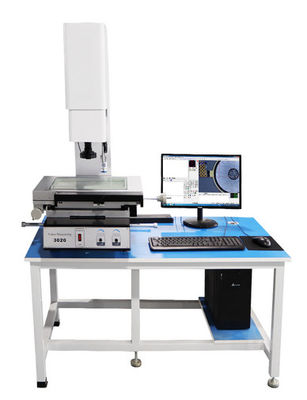

VMS Manual Optical Instrument , 2.5D Vision Vmm Image Video Measuring System

VMS Manual Optical Instrument , 2.5D Vision Vmm Image Video Measuring System
VMS Manual Optical Instrument , 2.5D Vision Vmm Image Video Measuring System

Large Image :  VMS Manual Optical Instrument , 2.5D Vision Vmm Image Video Measuring System

Product Details:
Place of Origin: Dongguan/China
Brand Name: iqualitrol
Certification: CE
Model Number: VMS-3020
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Plywood Box
Delivery Time: 15 Working Days
Payment Terms: T/T, Western Union
Supply Ability: 50 Sets per Month
Detailed Product Description
Model: VMS-3020 Accuracy: 3+200/L Um
Metal Stage: 506 X 356mm Glass Stage: 364 X 290mm
X-Y Travel: 300 X 200mm Z Axis: Travel 200mm
Linear Scale: Resolution 0.001mm Light Source: Programmable 5 Ring 8 Area Circular Table Light Source
High Light:

VMS Video Measuring System


2.5D Optical Instrument


Vmm Video Measuring Machine


optical instrument VMS manual 2.5D vision vmm image video measuring system machine


Brief Introduction:

iqualitrol VMS Series Video Measuring Machine can realize accurate mass measurement of work-piece, suitable for precision parts inspection and quality control. Widely used in electronics, machinery, plastic, metal, mold and other industries.


Applied mainly for 2D measurement and can support some specific 3D measurement as necessary, this instrument is a high precision and high efficiency measuring machine.


Designed and manufactured by iqualitrol Precision Instrument, a company with more than 20 years of history in precision measuring systems, Rational Video measuring machines are of good quality and reliability and have been used in the field of machinery, electronics, instrument, meter, watch, light industry, plastics as well as measuring chambers, laboratories of institutes and universities, research institutes, metrological verification departments and workshops, etc.

Product Features of Video Measuring Systems:
1. Equipment adopts goose-neck structure, the overall body has strong rigidity, small deflection of the Z axis, stable structure, and easy to guarantee higher accuracy.

2. Three axis automatic control, high-speed and stable automatic measurement.

3. Automatic import variable x optical lens, which can realize automatic variable times measurement.
4. Programmable 5 ring 8 area circular table light source, LED light source.

5. Using special high precision motion control card which imported from the USA.
6. Configuration industrial-grade color CCD camera.


Technical Specifications:

Model VMS-2010 VMS-3020 VMS-4030 VMS-5040
Metal Stage 356 x 256mm 506 x 356mm 606 x 456mm 706 x 606mm
Glass Stage 270 x 160mm 364 x 290mm 464 x 364mm 564 x 464mm
X-Y Travel 200 x 100mm 300 x 200mm 400 x 300mm 500 x 400mm


(W x D x H)mm

550x600x780 650x750x1050 750x900x1080 880x1300x1900
Net Weight 80Kg 150Kg 250Kg 350Kg
Z Axis Manual focus, effective travel 200mm, working distance 90mm
Resolution X,Y,Z 0.001mm
Accuracy X,Y 3+200/L um
Illumination Surface LED, 4 rings 8 divisions, lightness adjustable
Contour LED parallel light, LED navigation
CCD High definition Camera
Zoom Lens Magnification 0.7x-4.5x, total magnification 30x – 230x
Working Environment Temperature Range: 20℃±2℃, Humidity: 45-75%RH; Vibration<0.005g,
less than 15HZ
Measuring Software Powerful multifunctional Software
