Product Details:
Payment & Shipping Terms:
|
| Model: | GP-1000A | Specimen Qty: | 6 Specimen Simultaneously |
|---|---|---|---|
| Polishing Head: | 20-200rpm On Grinding Head | Disc Replace: | Equip With Quick Replace Grinding Disc & Multiple Specimen Holder |
| Loading Method: | Pneumatic Multi Pressure | Speed: | Can Be Adjusted Between 50-1000rpm By The Frequency Converter |
| High Light: | Automatic Metallographic Grinding And Polishing Machine,Single-Disc Metallographic Grinding Polishing Machine,GP-1000A Metallographic Grinding Polisher |
||

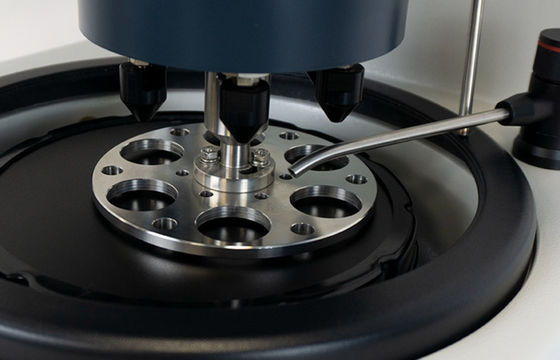

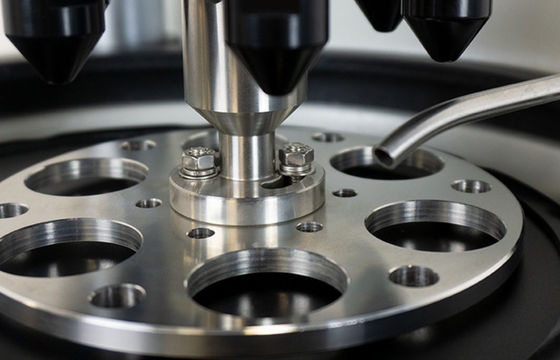

GP-1000A Automatic Single-Disc Grinding And Polishing Machine
Technical Data Download: iqualitrol Metallographic Grinding And Polishing Machine GP-1000A
Features:
1. Digital display the speed;
2. The pressure & time are adjustable;
3. Three programmable preset speeds and timer; Stepless speed-adjustment: 50-1000rpm on grinding disc;
4. 20-200rpm on grinding head;
5. Equip with quick replace grinding disc & multiple specimen holder;
6. Pneumatic multi pressure;
7. One bottle for dosing with manual/auto mode;
8. Can prepare 6 specimen simultaneously.
Technical Parameters:
| GP-1000A | ||
| Base | Wheel | Single Wheel |
| Speed | 50~1000 rpm | |
| Direction | CW/CCW | |
| Power | 750W | |
| Wheel Diameter | 8"-10"(200/250 mm) | |
| Head | Force Application | lndividual |
| Speed | 20-200 rpm | |
| Individual Force | 0.1~0.4 mpa | |
| Power | 250 W | |
| Dosing System | Auto-dosing | 1 bottle |
| Water Supply | Max. pressure | <0.3MPa |
| Pipe dia. on inlet | OD=Φ8mm | |
| Pipe dia. on outlet | OD=Φ32mm | |
| Recirculating water tank (optional) | Optional | |
| Noisy | Measured at 1 meter | <40dBA |
| Operating Environment | Tempersture | -20˚C - 60˚C (-4°F -140°F) |
| Humidity | 0-95%RH | |
| Dimension | W*D*H | 416*774*669mm |
| Voltage | 110V 60Hz, 220V 50HZ | |
| Minimum Pressure Required | 6*Φ40mm,3*Φ50mm | |
| Weight | 65 kg | |
