Product Details:
Payment & Shipping Terms:
|
| Features: | Minimize The Wearing Of The Sample, Eliminate The Surface Stress And Bring Excellent Flatness With Less Stress Deformation | Application: | Titanium, Aluminium, Pure Copper And Copper Alloys, Aluminium Alloys, Steel And Nickel-based Alloys |
|---|---|---|---|
| Piezoelectric Vibratory Plate: | Low Power Consumption& Noise Design | Disc Replace: | Easily Replacement Design On Disc, Convenient To Change And Clean |
| Controller: | 7" LCD Touch Screen Operate & Can Save 20 Customized Programs | Frequency: | Automatically Adjust Frequency |
| Highlight: | Metallographic Vibratory Polishing Machine,VP-430 Vibratory Polishing Machine,7" LCD Vibratory Polishing Machine |
||

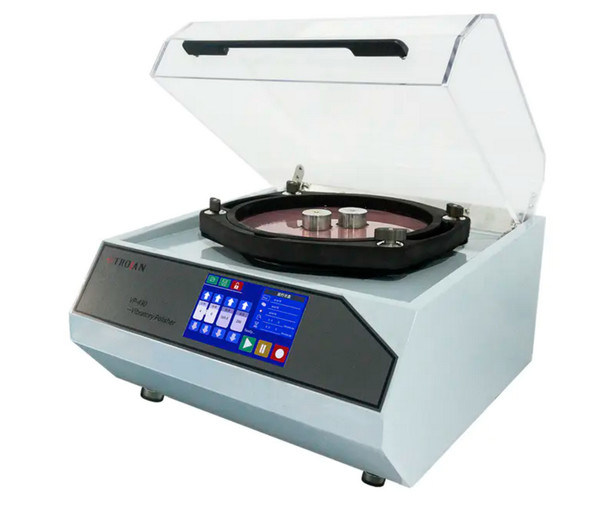

Low Power Consumption VP-430 Vibratory
Polishing Machine
Technical Data Download: iqualitrol Vibratory Polishing Machine VP-430
Product Description:
VP-430 vibratory polishing machine can minimize the wearing of the sample, eliminate the surface stress and bring excellent flatness with less stress deformation.
VP-430 is an ideal preparation equipment for EBSD (backscattered electron diffraction), AFM (atomic force microscope) & SEM (scanning electron microscopy) analysis and Nano indentation or micro-hardness testing.
The equipment is particularly suitable for surface polishing on soft and ductile materials such as Titanium, Aluminium, pure Copper and Copper alloys, Aluminium alloys, steel and Nickel-based alloys.
Features:
1. Low power consumption& noise design with piezoelectric vibratory plate, light weight but stable in operation;
2. Convenient to operate, user friendly;
3. Easily replacement design on disc, convenient to change and clean;
4. 7" LCD touch screen operate & can save 20 customized programs;
5. Automatically adjust frequency.
Technical Specifications:
| VP-430 | ||
| Working Plate | Diameter | 12"(300mm) |
| Sample Holder | 1"/1.25"/1.5"/2"(customized according to customer needs) | |
| Electrical | Voltage/Frequency | 100~240V / 50 / 60 Hz |
| Rated Power | 50W | |
| Time Setting | 9999hours | |
| Speed | 1-20rpm | |
| Vibration Frequency | 40~400Hz | |
| Operating Environment | Temperature | -20˚C - 60˚C |
| Humidity | 0-95%RH | |
| Dimensions | W*D*H | 503×516×379mm(Close) 503×607×669(Open) |
| Weight | 53kg | |
