| Disc: | Double Wheels With Two Individual Control Panels | Water Flush: | Auto/Manual Flush Mode,and Flush Time Is Programmable |
|---|---|---|---|
| Stepless Speed: | 50-1000rpm Or 0-1000rpm, Clockwise And Counter Clockwise Rotation | Wheel Replace: | Replaceable Wheel Design Makes Easy To Clean And Maintenance |
| Motor Cooling: | Automatic Temperature-sensing Cooling Fan | Control Panels: | Touch Key-press Glass Panel And Switches Panel |
| Highlight: | Alpha202 Double Wheels Grinding Polishing Machine,Grinding Polishing Individual Control Panels Machine |
||

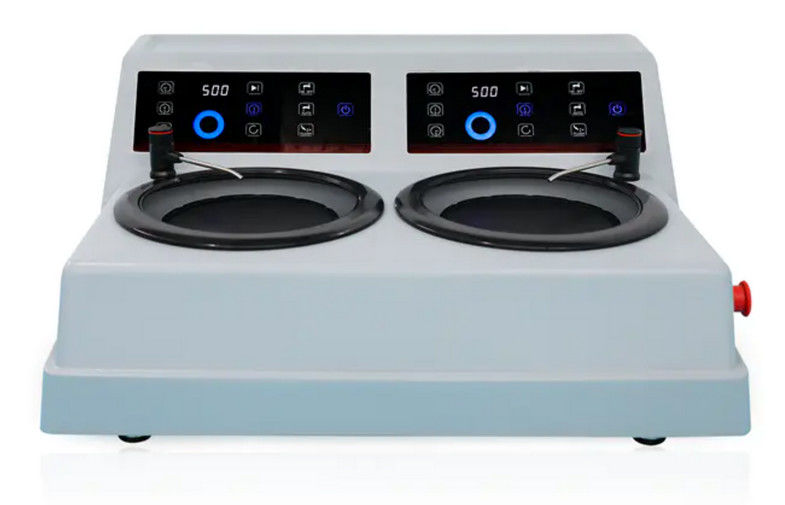

Alpha 202 Double Wheels With Two Individual Control Panels Grinding Polishing Machine
Features:
1. Auto/Manual flush mode,and flush time is programmable;
2. Auto/Manual water mode;
3. Large diameter of drain hose;
4. Replaceable wheel design makes easy to clean and maintenance;
5. The automatic temperature-sensing cooling fan, can reduce failure rate and improve working life;
6. Two optional control panels: Touch key-press glass panel and switches panel. Both are easy to use and more durable;
7. The panel with rotary switch is optional, more options for customer.
8. Retractable water spout.
Technical Specifications:
| Models | ALPHA-202G | ALPHA-202B | |
| Working Wheel | Speed | 50-1000rpm | 0-1000rpm |
| Wheel | Double wheels With Individual Control Panel | ||
| Diameter | 8"-10" (200/254mm) | ||
| Direction | CW/CCW | ||
| Torque @300rpm | 3N.m | ||
Electronic |
Voltage/Frequency | 110V/60Hz, 220V/50Hz (1P1N1PE) | |
| Standby power | 1500W | ||
| Rated Current @220V | 20W | ||
| Max. Current @220V | 5A | ||
| Rated Power | 10A | ||
| Water Supply | Max. Pressure | 0.6MPa | |
| Pipe dia. on water | Φ8mm | ||
| Pipe dia. on flush | Φ10mm | ||
| Pipe dia. on outlet | Φ32mm | ||
| Recirculating water tank (optional) | 45L,Minimum filter accuracy: 0.01um |
||
| Operating Environment | Temperature | -20˚C - 60˚C | |
| Humidity | 0-95%RH | ||
| Noisy | Measured at 1 meter | <40dBA | |
| Dimension | W*D*H | 820*740*340mm | |
| Control Panel | Touch key-press | Button switches | |
| Three programmable preset speeds | Yes | No | |
| Flush inside of the wheel | Auto/Manual | ||
| Weight | 85kg | ||
