Product Details:
Payment & Shipping Terms:
|
| Alpha-200G: | 50-1000rpm, Touch Key-press | ALPHA-200B: | 0-1000rpm, Button Switches |
|---|---|---|---|
| Plate Diameter: | 8"-10”(200/254 Mm) | Water Mode: | Auto/Manual Water Mode |
| Control Panel: | Touch Key-press Glass Panel And Switches Panel | Water Tank (optional): | 45L,Minimum Filter Accuracy: 0.01um |
| Highlight: | Double Wheels Grinding And Polishing Machine,Alpha-200 Grinding And Polishing Machine,1000rpm Grinding Polishing Machine |
||

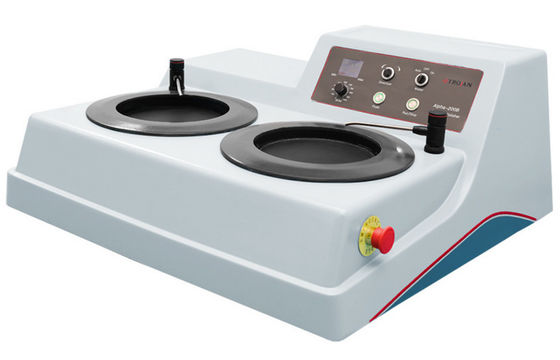

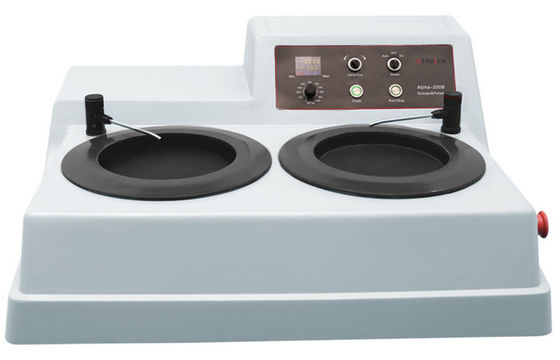

Alpha-200 Single Controlled Double Wheels Grinding And Polishing Machine
Brief Introduction:
Alpha-200 is a single controlled on double wheels grinding and polishing machine which has equipped with a variable frequency motor.
Alpha-200 contains three programmable preset speeds for quick speed changes. Also with a nozzle to flush the debris manually/automatically. Suitable for grinding and polishing various of metallographic samples.
Alpha-200 is widely used in material analysis/physical & chemical analysis laboratories of each enterprises and research institutions.
Features:
1. Auto/Manual flush mode,and flush time is programmable;
2. Auto/Manual water mode;
3. Large diameter of drain hose;
4. Replaceable wheel design makes easy to clean and maintenance;
5. The automatic temperature-sensing cooling fan, can reduce failure rate and improve working life;
6. Two optional control panels: Touch key-press glass panel and switches panel. Both are easy to use and more durable;
7. The panel with rotary switch is optional, more options for customer.
8. Retractable water spout..
Technical Specifications:
| ALPHA-200G | ALPHA-200B | ||
| Working wheel | Speed | 50-1000rpm | 0-1000rpm |
| Wheel | Double wheel with one panel | ||
| Diameter | 8”-10”(200/254 mm) | ||
| Direction | CW/CCW | ||
| Torque @300rpm | 3N.m | ||
| Electronic | Voltage/Frequency | 110V/60Hz,220V/50Hz (1P1N1PE) | |
| Rated Power | 750W | ||
| Standby power | 15W | ||
| Rated Current @220V | 3.0A | ||
| Max.Current @220V | 5A | ||
| Water Supply | Max. Pressure | 0.6MPa | |
| Pipe dia. on water | Φ8mm | ||
| Pipe dia. on flush | Φ10mm | ||
| Pipe dia. on outlet | Φ32mm | ||
| Recirculating water tank (optional) | 45L, Minimum filter accuracy: 0.01um | ||
| Operating Environment | Temperature | -20˚C - 60˚C | |
| Humidity | 0-95%RH | ||
| Noisy | Measured at 1 meter | <40dBA | |
| Dimension | W*D*H | 820*740*340mm | |
| Control Panel | Touch key-press | Button switches | |
| Three programmable preset speeds | Yes | No | |
| Flush inside of the wheel | Auto/Manual | ||
| Weight | 65kg | ||
