Single Wheel Grinding And Polishing Machine Programmable Flush Time Alpha-100

Name: Single Wheel Grinding And Polishing Machine Programmable Flush Time Alpha-100
Brand: iqualitrol
SKU: Alpha-100
Rating: 4.5 (115 reviews)

Large Image : Single Wheel Grinding And Polishing Machine Programmable Flush Time Alpha-100

Product Details:

Brand Name:	iqualitrol
Model Number:	Alpha-100

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Packaging Details:	Plywood Box
Delivery Time:	10 Working Days
Payment Terms:	T/T, Western Union
Supply Ability:	10 Sets per Month

Contact Now

Detailed Product Description

ALPHA-100G:	50-1000rpm, Touch Key-press	ALPHA-100B:	0-1000rpm, Button Switches
Flush Mode:	Auto/Manual Flush Mode,and Flush Time Is Programmable	Wheel Replace:	Replaceable Wheel Design Makes Easy To Clean And Maintenance
Cooling Fan:	Automatic Temperature-sensing Cooling Fan, Can Reduce Failure Rate And Improve Working Life	Control Panels:	Touch Key-press Glass Panel And Switches Panel. Both Are Easy To Use And More Durable
Highlight:	Single Wheel Grinding And Polishing Machine , Alpha-100 Grinding And Polishing Machine , Programmable Flush Time Grinding Polishing Machine

Programmable Flush Time Alpha-100 Single Wheel
Grinding And Polishing Machine

Product Description:

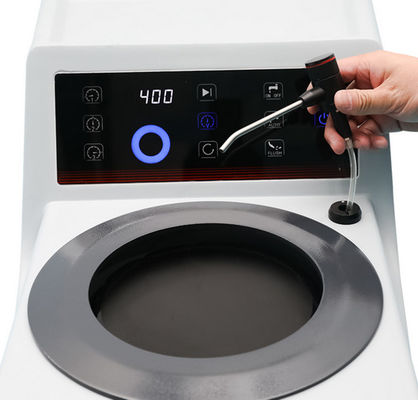

iqualitrol Alpha-100 is a single-wheel grinding and polishing machine which has equipped with a variable frequency motor.

Alpha-100 contains three programmable preset speeds for quick speed changes. Also with a nozzle to flush the debris manually/automatically. Suitable for grinding and polishing various of metallographic samples.

Alpha-100 is widely used in material analysis/physical & chemical analysis laboratories of each enterprises and research institutions.

Features:

1. Auto/Manual flush mode, and flush time is programmable;

2. Auto/Manual water mode;

3. Large diameter of drain hose;

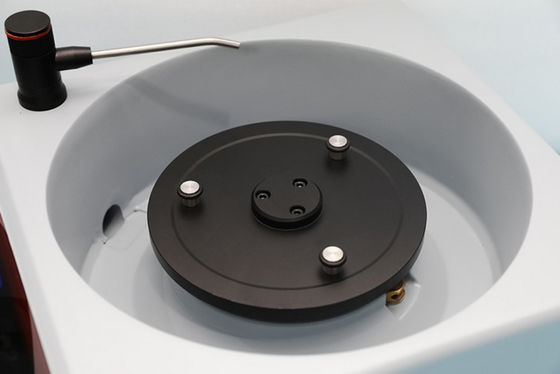

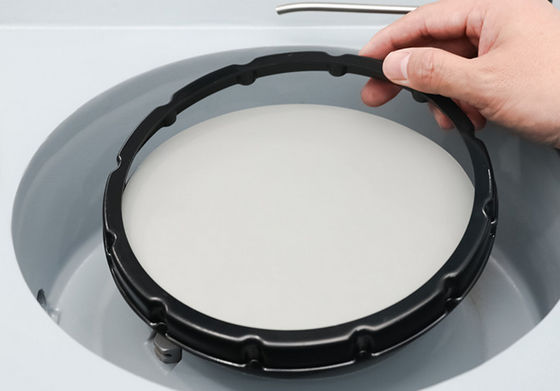

4. Replaceable wheel design makes easy to clean and maintenance;

5. The automatic temperature-sensing cooling fan, can reduce failure rate and improve working life;

6. Two optional control panels: Touch key-press glass panel and switches panel. Both are easy to use and more durable;

7. The panel with rotary switch is optional, more options for customer.

8. Retractable water spout.

Technical Specifications:

		ALPHA-100G	ALPHA-100B
Working wheel	Speed	50-1000rpm	0-1000rpm
	Wheel	Single wheel
	Diameter	8”-10”(200/254 mm)
	Direction	CW/CCW
	Torque @300rpm	3N.m
Electronic	Voltage/Frequency	110V/60Hz,220V/50Hz (1P1N1PE)
	Rated Power	750W
	Standby power	15W
	Rated Current @220V	2.9A
	Max.Current @220V	5A
Water Supply	Max. Pressure	0.6MPa
	Pipe dia. on water	Φ8mm
	Pipe dia. on flush	Φ10mm
	Pipe dia. on outlet	Φ32mm
	Recirculating water tank (optional)	45L,Minimum filter accuracy: 0.01um
Operating Environment	Tempersture	-20˚C - 60˚C
	Humidity	0-95%RH
Noisy	Measured at 1 meter	<40dBA
Dimension	WDH	485750349mm
Control Panel		Touch key-press	Button switches
Three programmable preset speeds		Yes	No
Flush inside of the wheel		Auto/Manual
Weight		45kg
