230mm Metallographic Sample Grinding And Polishing Machine IGrind-451 Single Disc

230mm Metallographic Sample Grinding And Polishing Machine IGrind-451 Single Disc
230mm Metallographic Sample Grinding And Polishing Machine IGrind-451 Single Disc

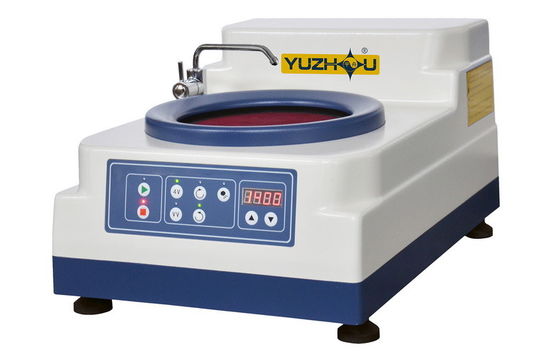

Large Image :  230mm Metallographic Sample Grinding And Polishing Machine IGrind-451 Single Disc

Product Details:
Brand Name: iqualitrol
Model Number: iGrind-451
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Packaging Details: Plywood Box
Delivery Time: 10 Working Days
Payment Terms: T/T, Western Union
Supply Ability: 10 Sets per Month
Detailed Product Description
Model: IGrind-451 Single Disc Shell: Anti-corrosion And Durable
Speed: Stepless Speed Or Four Speed Control DC Brushless Motor: Long Service Life And Low Noise And Powerful
Cooling: Cooling Water Tube Direction For Wet Grinding Disc Diameter: 230mm
Highlight:

230mm Metallographic Grinding and Polishing Machine

,

Sample Grinding and Polishing Machine

,

Single Disc metallographic grinder polisher



Metallographic Sample Grinding and Polishing Machine iGrind-451 Single Disc



Technical Data Download: iqualitrol High Speed Polishing Machine



Brief Introduction:

iqualitrol iGrind-451 single-chip microcomputer controlled grinding and polishing machine. The shell is formed with ABS material, which is beautiful in appearance, anti-corrosion and durable.



Strong large support chassis design ensures the precision rotary balance. It has stepless speed or four speed control and can change the rotational direction.



The motor is DC brushless motor which has long service life and low noise and powerful motor brings strong power and efficient grinding and polishing experience.



Spindle leak-proof design ensures the bearing without damage. It can adjust the cooling water tube direction for wet grinding.



With washing function at the bottom of the grinding disc, it can prevent the accumulation and precipitation of grinding materials. Only need to change the abrasive paper and polishing cloth, it can complete various sample grinding, fine grinding and polishing process, which is the ideal sample preparation machine in the laboratory.



Technical Parameters:

Model iGrind-451 Single Disc
Disc Diameter 230mm
Abrasive PaperDiameter 230mm
Speed

Stepless speed 50~1400r/min,

and Four speed 300, 600, 900, 1400r/min

Rotational Direction Clockwise and Counterclockwise
Electromotor DC brushless motor, 220V, 600W
Control and Display Film key operation , Nixie tube display, With washing function
Power Supply 220V, 50Hz, 6A
Dimensions 420×660×330mm
Net Weight 30kg



Packing List:

Name Specification Qty
Machine Body   1 set
Grinding and Polishing Disc 230mm 2 pcs
Ferrule   2 pcs
Abrasive Paper 230mm 4 pcs
Polishing Cloth 230mm 1 pc
Water Inlet Pipe   1 pc
Water Outlet Pipe   1 pc
Water Inlet Filter Screen   1 pc
Usage Instruction Manual   1 copy
