Product Details:
Payment & Shipping Terms:
|
| Model: | LM-2000A | Electrical: | Low Voltage DC Input 12V/5A |
|---|---|---|---|
| Light Source: | 12V/50W Halogen Lamp (optional 5W LED), Adjustable Light Intensity | Objectives: | 5pcs Holes For Infinity LWD Plan Objectives : 5× ~ 100× (Dry); |
| Optical System: | Infinity-corrected Optical System. Large Vision, High Imaging Quality & Resolution; | Eyepiece: | Wide Field Eyepiece 10x /φ22mm (Optional φ23mm); |
| Highlight: | Trinocular Inverted Metallurgical Microscope,Metallurgical Microscope Kohler Reflected Illumination |
||

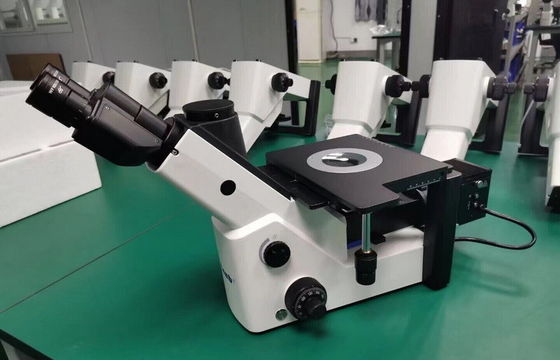

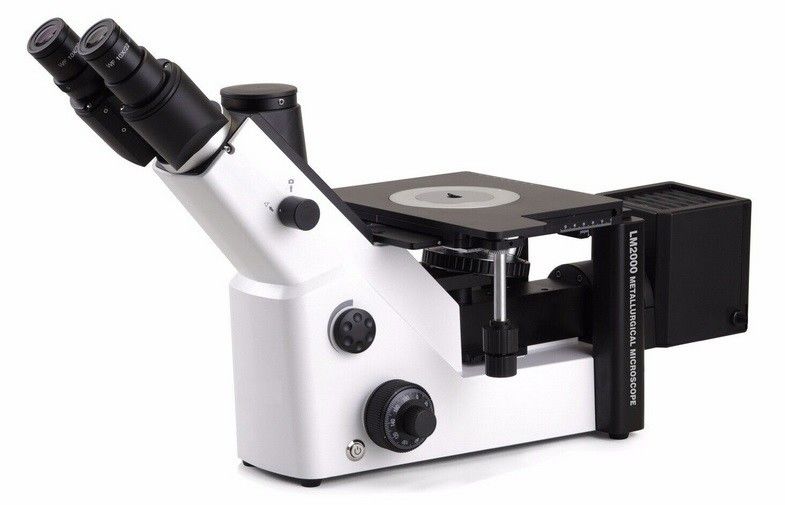

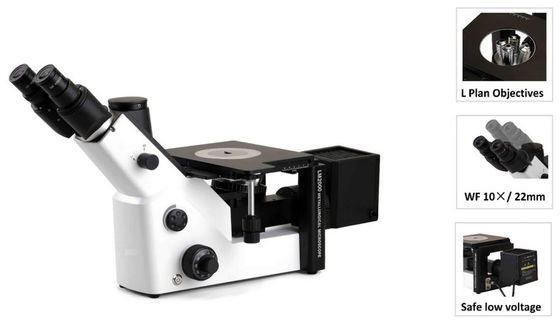

Trinocular Inverted Metallurgical Microscope LM-2000A with Kohler Reflected Illumination
Functions & Features:
● Infinity-corrected optical system. Large vision, high imaging quality & resolution;
● 5pcs holes for Infinity LWD Plan Objectives : 5× ~ 100× (Dry);
● Wide field eyepiece 10x /φ22mm (Optional φ23mm);
● Observation tubes can be adjusted up and down 180° to accommodate with different users;
● High quality Reflected Illumination system;
● Light source 12V/50W halogen lamp (optional 5W LED), adjustable Light Intensity;
● Adopt safe electrical system: low voltage DC input 12V5A;
● Optional camera and computer software for observing, taking graphs, data management;
● Available upgrading with various functions & accessories to adapt to more application.
Applications:
Technical Specifications:
| Model | LM-2000A |
| Optical System | LIOS Optical System (Infinity-corrected) |
| Magnification range | 50X ~ 1000X |
| Eyepiece | Widefield WF10×/ 20mm (Optional φ22mm) |

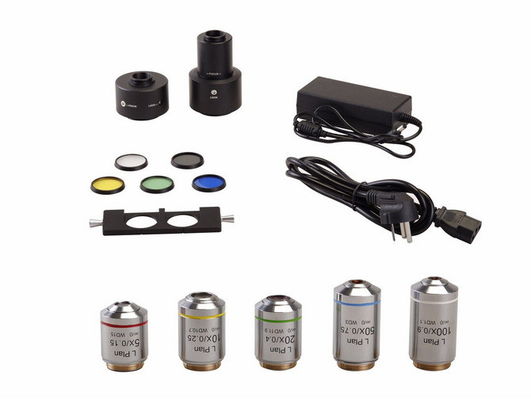

| Objectives | Infinity Plan Objectives: 5×/10×/20×/50×/100× |
| Tubes | Trinocular tubes, Inclined 45°, adjustable distance: 48-75mm |
| Light distribution | 70% for eyepiece observation and 30% for camera |
| Observation mode | Bright-field |
| Nosepiece | Brightfield Holes: 5pcs |
| Focusing unit | Coarse and Fine coaxial handle Focus stroke: 12mm, Fine handle stroke per rotation: 200μm (min. scale: 2μm) |
| Mechanical Stage | Stage size: 210 mm×180mm, each X/Y stroke:50×50mm , Scale : 0.1mm |
| Illumination | Kohler Reflected Illumination Optical System |
| Light source | 6V/30W halogen lamp, adjustable Light Intensity |
| Electrical system | Safe low voltage DC input: 6V5A Power Adapter Input voltage:100V～240V |
| Output port | For CCD / CMOS Camera & Digital Camera of CANON／NIKON／OLYMPUS |
| Adaptor of Camera | 1×/0.75×/0.5×C-Mount (focus adjustable) |
| Optional Camera & Software | CCD / CMOS industrial camera and PC software (Not an analysis system) |
| Net Weight & Dimension | Net Weight: 11Kg Dimension: 27.5*68*37.5cm |
