Product Details:
Payment & Shipping Terms:
|
| Polishing Discs: | Double Disc, φ230mm Optional φ250mm | Speed: | Stepless Speed 50-1000rpm |
|---|---|---|---|
| LCD Screen: | Displays Pressure And Working Time | Application: | Coarse Grinding, Fine Grinding |
| Air Pressure: | 0.6-0.8MPa | Load Range: | 5-60 Newtons |
| Highlight: | High Speed Centrifuge With Brushless Motor,Microprocessor Control High Speed Centrifuge |
||

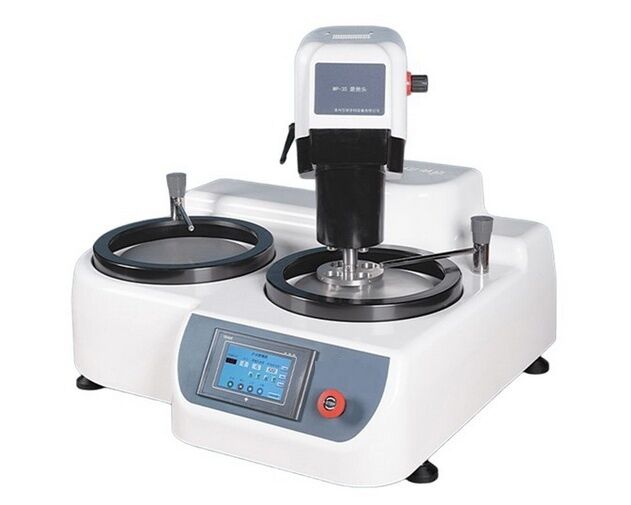

Double Disc Automatic Polishing Machine iPol-3S2 in Center Pressure
Brief Introduction:
The iqualitrol iPol-3S2 automatic grinding and polishing machine features advanced sample preparation capabilities, ensuring consistency and reproducibility of sample results.
Equips with touch screen control system, making the sample preparation process controllable. The grinding and polishing disc supports bidirectional rotation, with speed adjustable within a specified range.
The iqualitrol iPol-3S2 can support grinding and polishing of up to 6 samples at once, or a single sample.
Parameters such as preparation pressure and working time are displayed on the LCD screen, making user operation more intuitive and convenient.
iqualitrol iPol-3S2 is suitable for automatic sample preparation in the coarse grinding, fine grinding, coarse polishing to fine polishing processes of metallographic samples, making it an ideal choice for enterprises, research institutions, and metallographic laboratories in colleges and universities.
Technical Specifications:
| Model | iPol-3S2 |
| Number of polishing discs | 2 |
| Diameter of polishing disc | φ230mm optional φ250mm |
| Polishing disc speed | 50-1000r/min |
| Polishing head speed | 5-100 r/min |
| Load range | 5-60 Newtons |
| Preparation time | 0-9999 seconds |
| Sample diameter | φ30mm (customizable) |
| Number of prepared samples | 6 (customizable) |
| Air source | 0.6-0.8MPa |
| Input voltage | Single-phase AC220V 50Hz |
| Input power | 1100W |
| Dimensions | 760mm×735mm×635mm |
| Net weight | 70kg |
