Product Details:
Payment & Shipping Terms:
|
| Features: | Smooth Transmission, Safety And Reliability, Compact Structure, Low Noise | Applications: | Rough Grinding, Fine Grinding, Rough Polishing To Fine Polishing Of Metallographic Samples |
|---|---|---|---|
| IPol-2DE: | Dual Workstations, Independent Operation Of Dual Discs | Rotation Speed: | Stepless Speed 50-1200rpm |
| Highlight: | Tabletop Automatic Balance Centrifuge,Hospital Automatic Balance Centrifuge,Balance Centrifuge With Touch Panel |
||

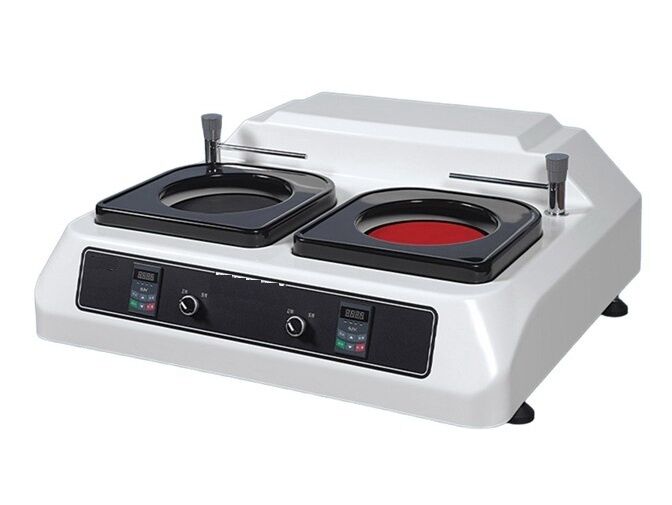

Double Disc Metallographic
Grinding and Polishing Machine iPol-2DE Independent Controls
Brief Introduction:
The iqualitrol iPol-2DE features dual workstations, dual drive variable frequency speed control, and independent operation of dual discs, allowing the grinding and polishing discs to have an infinitely adjustable speed between 50-1200rpm.
By replacing metallographic sandpaper and polishing fabric, separate grinding and polishing operations can be performed, showcasing a broader range of applications.
The iPol-2DE has characteristics such as smooth transmission, safety and reliability, compact structure, and low noise, and is equipped with water cooling device to cool the samples during grinding to prevent damage to the metallographic structure due to overheating.
It is suitable for rough grinding, fine grinding, rough polishing to fine polishing of metallographic samples, making it an ideal sample preparation device for enterprises, research institutions, and university laboratories.
Technical Specifications:
| Model | iPol-2DE |
| Grinding and polishing disc diameter | φ203mm (rim) optional φ230mm or φ250mm |
| Grinding and polishing disc speed | 50-1200 r/min infinitely variable speed |
| Input voltage | Single-phase AC220V 50Hz |
| Number of grinding and polishing discs | 2 |
| Input power | 800W |
| Dimensions | 800mm×750mm×320mm |
| Net weight | 60kg |
