Integrated Pen Type iqualitrol ETIP Portable Leeb Hardness Tester with Wireless Printer

Name: Integrated Pen Type iqualitrol ETIP Portable Leeb Hardness Tester with Wireless Printer
Brand: iqualitrol
SKU: ETIP
Rating: 5 (173 reviews)

Large Image : Integrated Pen Type iqualitrol ETIP Portable Leeb Hardness Tester with Wireless Printer

Product Details:

Brand Name:	iqualitrol
Model Number:	ETIP

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Packaging Details:	Carton Box
Delivery Time:	3 Working Days
Payment Terms:	T/T, Western Union
Supply Ability:	10 Sets per Month

Contact Now

Detailed Product Description

Features:	Identify Direction Automatically. Full USB Communication With PC	ETIPD:	For The Majority Of Your Hardness Testing Requirements
ETIPDC:	Very Confined Spaces, E.g. Holes, Cylinders Or For Internal Measurements	ETIPC:	Surface Hardened Components, Coatings, Thin Walled Or Impact Sensitive Components
ETIPDL:	For Extremely Confined Spaces Or At The Base Of Grooves	ETIPD+15:	Measurements In Grooves And On Recessed Surfaces

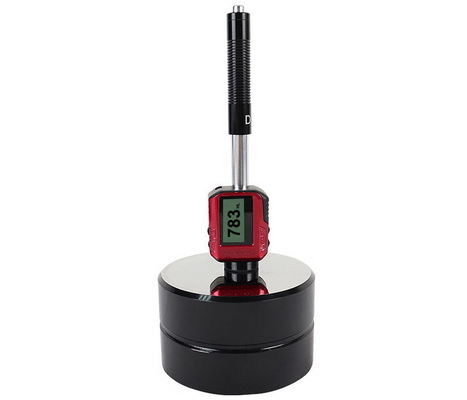

Integrated Pen Type iqualitrol ETIP Portable Leeb Hardness Tester
with Wireless Printer

Features:

Impact device integrated.

Identify direction automatically.

Full USB communication with PC.

Wireless printing.

Intelligent sleep mode.

Technical Specifications:

Impact Device	D
Accuracy	±4HL
Testing Direction	All direction ( Automatic identification)
Communication	USB with PC
Display	LCD with backlight
Power	Li-Ion Battery, Rechargeable
Printer	Mini thermal printer with IrDA (wireless)
Standards & Guidelines	DIN 50156, DGZfP Guideline MC 1, VDI / VDE Guideline 2616, ISO 18625,ASTM A956, GB/T 17394, JB/T 9378, JJG 747, CNAL T0299, JIS B7731.
Certificate	CE

Model	ETIPD	ETIPDC	ETIPC	ETIPDL	ETIPD+15
Application	The majority of your hardness testing assignments.	Very confined spaces, e.g. holes, cylinders or for internal measure-ments.	Surface hardened components, coatings, thin walled or impact sensitive components.	For extremely confined spaces or at the base of grooves.	Measure-ments in grooves and on recessed surfaces.
Dimensions (mm)	1473522	863522	1413522	20235 22	1623522
Weight (g)	100	75	100	125	125
