Product Details:
Payment & Shipping Terms:
|
| Model: | MCT-200 | Principle: | Magnetic Induction & Eddy Current |
|---|---|---|---|
| Measure Range: | 0-1250um, Depends On Probes | Display: | Digits LCD With EL Backlight |
| Memory: | Up To 20 Files, Each File 50 Values | Working Hours: | 200 Hours, EL Backlight Off |

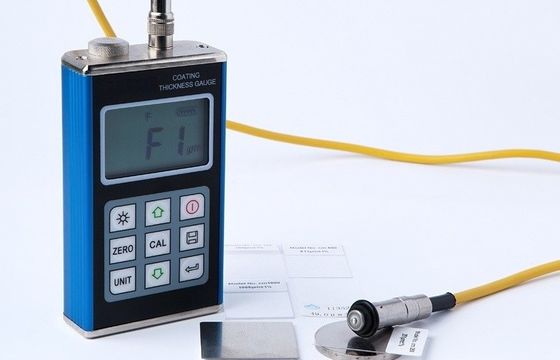

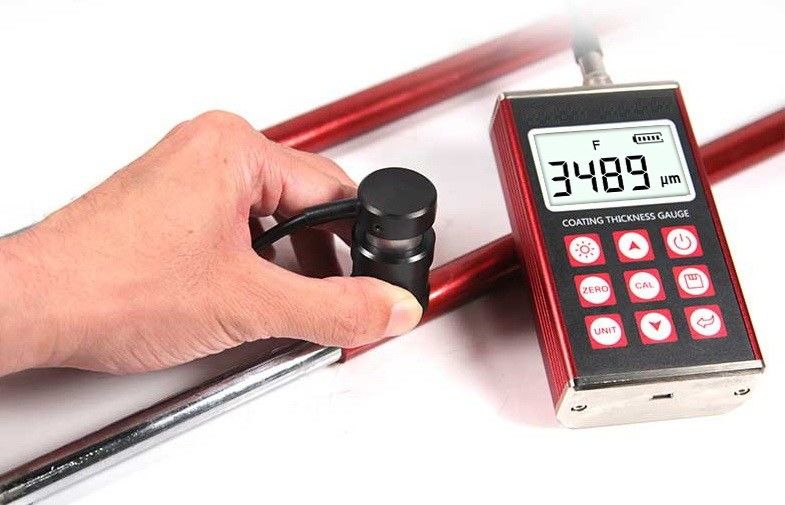

Non-destructive Portable Coating Thickness Gauge MCT200
Brief Introduction:
The iqualitrol MCT200 Coating Thickness Gauge is a portable coating thickness gauge that can swiftly and accurately test the thickness of coatings on various metallic substrates, without damaging the coated surface. It can be used in a wide variety of fields including manufacturing, metal-processing and asset inspection.
It is designed for non-destructive, fast and precise coating and film thickness measurement. It is widely used in manufacturing, metal processing industry, chemical industry. commodities inspection and other testing areas. Measuring range from 0 to 10 mm, can meet the different industries in view of the workpiece surface coating thickness testing requirements. It is a good professional precision instrument to improve the production efficiency and the qualified rate, saving the cost of production.
The measurement is based on magnetic induction & Eddy current. With different external probes, the gauge can be applied to measuring thickness of non-magnetic coating on magnetic Metal substrate, as well as non-conductive coating on non-magnetic metal substrate.
FEATURES:
With different external probes, the gauge can be applied to measuring thickness of non-magnetic coating on magnetic metal substrate, as well as non-conductive coating on non-magnetic metal substrate.
Five types of probes (F400, F1, F10, N1, CN02) are available for different applications. F10 probe measures up to 10 mm.
Two measuring modes: single or continuous.
Two calibration methods can be applied to the gauge – system error of the probe can be corrected with the basic probe calibration method.
Measured values and user information are shown on a large, easy-to-read LCD screen. A display back light ensures easy reading of screen data in poorly-lit conditions.
Measuring status indicator.
The gauge’s user-friendly measuring system permits automatic storage of up to 1000 readings in one memory matrix for later statistical evaluation.
Battery information indicates the remaining charge.
Auto sleep and auto power off function to conserve battery life.
USB1.1 communication port. Optional software to process the stored data on the PC.
