Product Details:
Payment & Shipping Terms:
|
| WD-I106L-A: | Zoom Lens 0.7X - 4.5X | WD-I106LX-A: | HDMI Video Export Format |
|---|---|---|---|
| Camera: | Built-in 12 Million Pixel Digital Dedicated Camera | Light Source: | Top Light Source, Side Light Source, LED Continuously Adjustable Light Source |

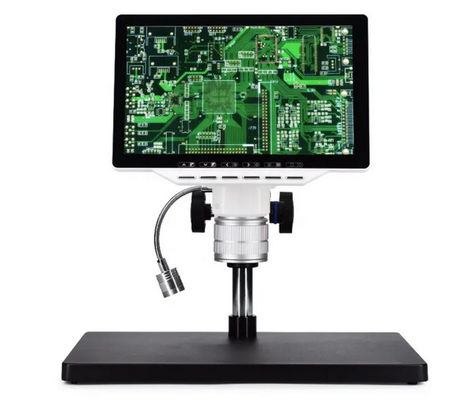

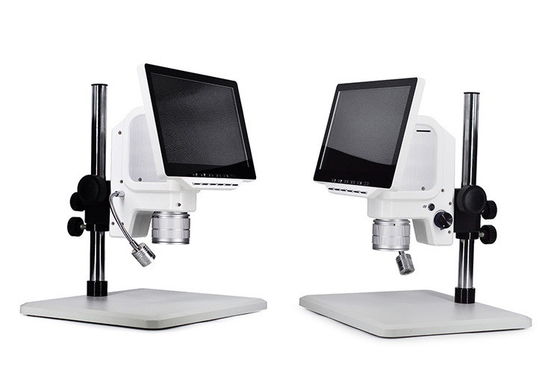

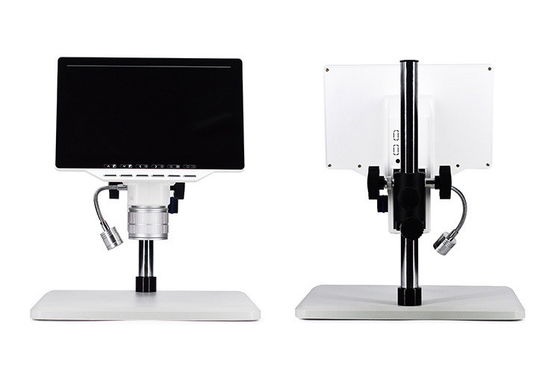

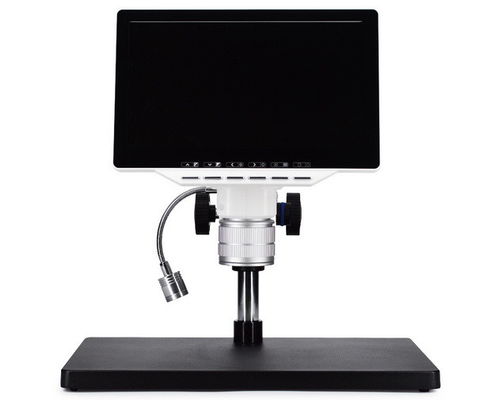

Integrated Industrial Video Microscope with
Zoom Lens Max Magnification 4.5X
Brief Introduction:
WD-I106L-A, WD-I106LX-A series integrated digital video microscope is a high-tech product that perfectly combines the cutting-edge optical microscope technology, advanced photoelectric conversion technology and LCD screen technology.
Widely used in PCB boards, hardware, connectors, FPC, textiles, tickets, various industrial visual inspections, digital magnifiers, hospital research, criminal investigation, education and other fields.
Built-in 12 million pixel digital dedicated camera and digital video recorder, the device supports HDMI 1080p/60fps high-definition digital signal output, supports wireless transmission sharing, and supports wide dynamic range (WDR).
Easily free your eyes and improve work efficiency.
Technical Specifications:
| Model |
WD-I106 L-A |
WD-I106 LX-A |
||
| LCD | Size | 10.6”IPS | · | · |
| Resolution | 1366*768 | · | · | |
|
Digital Speci- |
Photo Pixel | 1.2MP | · | · |
| Video resolution frame rate |
1080p/60fps | · | · | |
| Video export format | HDMI | @ | · | |
| Wireless data transfer |
Optional | o | o | |
| WDR | Support | · | · | |
| Function |
Automatic exposure, exposure offset, automatic white balance, local storage for photos and videos (maximum memory 32G) |
· | · | |
| storage mode | SD card | · | · | |
| External devices | Projector, display | @ | · | |
|
Optic Speci- |
Lens Type | Zoom Lens | · | · |
| Magnification | 0.7X - 4.5X | · | · | |
|
Table Speci- fications |
Light source |
Top light source, side light source, LED continuously adjustable light source |
· | · |
| Focus range | 60mm | · | · | |
| Working distance | 88mm | · | · | |
| pillar | Cylinder pillar | · | · | |
| frame | 380mm*250mm*20mm | · | · | |
| Optional | SD card | o | o | |
| Power Supply | DC12V | · | · | |
| Note: . for Standard , o for optional, @ for not available | ||||
Features:
1. High integration: It integrates photography, video recording and LCD display. You can check the test results at any time without connecting to a PC, easily retain the required image data, and improve the efficiency of research and analysis;
2. High-definition display: It uses a 10.6-inch full-vision IPS LCD screen;
3. High-definition camera: Built-in high-definition digital camera, with a photo pixel of up to 1200W and a video resolution of 1080p/60fps;
4. High-definition HDMI output: It can be connected to an external projector or display, and supports 1080p/60fps high-definition video stream output;
5. Continuously adjustable magnification: 0.7X~4.5X continuous magnification;
6. Multiple grids: crosshairs, 2*2 grids, 3*3 grids, 4*4 grids (customizable according to customer needs);
7. Support wireless sharing transmission: You can download the device's pictures and videos through the APP for sharing and post-data processing;
8. Support wide dynamic (WDR): Improve video clarity in dark scenes;

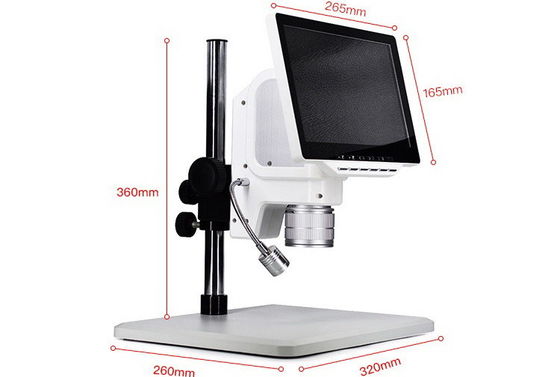

9. Wide platform: suitable for various inspection and operation tasks, working platform size: 380*250*20mm;
10. Boot screen: boot logo or other screens can be customized according to customer needs.
