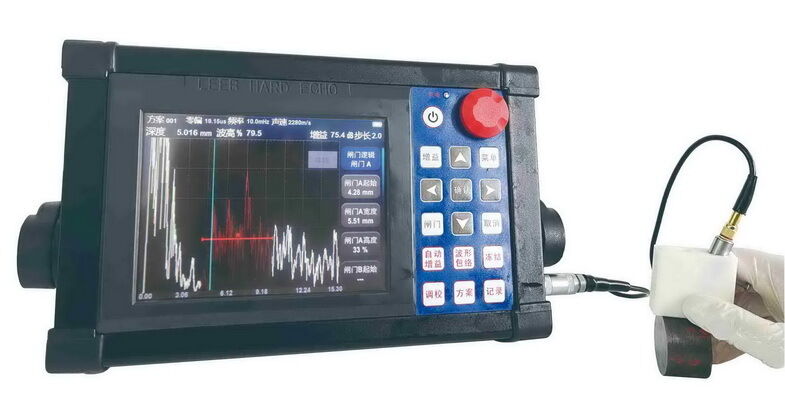

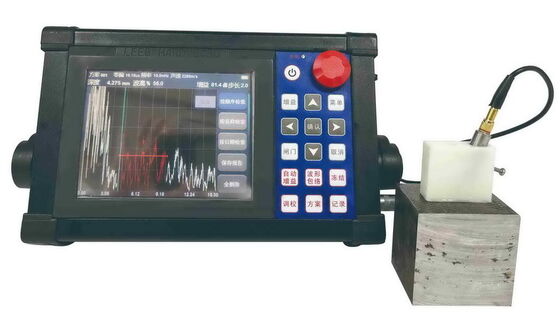

Ultrasonic Quenching Hardening Layer Depth Measuring Instrument XLB-801 IP65 Protection

Ultrasonic Quenching Hardening

Layer Depth Measuring Instrument XLB-801 IP65 Protection

Brief Introduction:
The iqualitrol XLB-801 is mainly used for precise measurement of hardened layer depths from medium to high-frequency quenching and carburizing quenching.

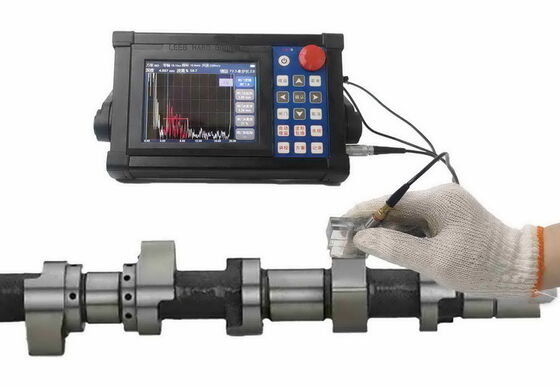

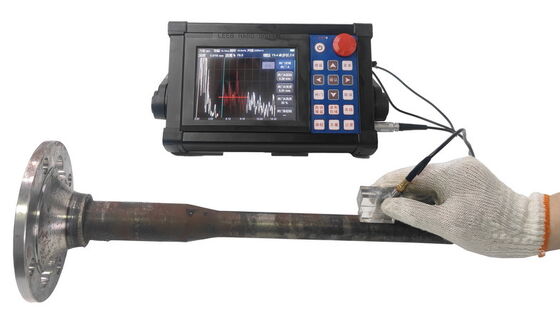

It is widely used for bearings, gears, and various heat-treated workpieces. In addition, it can also measure weld thickness, interfaces of different materials, and the re-melting depth of aluminum alloy castings.

Main Features:
1, Wide measurement range, capable of testing hardened layers from 0.5 to 40mm depth.

2, Accurately measures the hardened layer thickness of various medium and high-frequency quenched and carburized quenched products, with selectable measurement resolutions of 0.1mm, 0.01mm, and 0.001mm.

3, Automatic vertical positioning gate for intelligent layer positioning. Clear indicators and easy operation.

4, Color B-scan for convenient visualization of the overall surface hardening of the workpiece.

5, 120dB gain adjustment range, sensitivity above 90dB. Ultra-high signal-to-noise ratio, clear and stable waveform, anti-interference design, reliable in harsh conditions.

6, 12-bit AD, high-speed sampling, delicate waveform, detailed display, ultra-high sensitivity and resolution, can precisely locate waveform transitions.

7, Repetition rate up to 10 to 10,000Hz, high-speed detection, real-time smooth waveform, easy to get the ideal wave.

8, Supports remote expert process scheme import, can measure right after powering on without setting detection parameters or system calibration. Extremely user-friendly operation.

9, Various sensors can be customized according to on-site conditions.

10, Hardened layer depth measurement results include all parameters and waveforms; save directly with a button and automatically generate reports. Can be stored internally or expanded indefinitely with a USB drive.

11, Bluetooth wireless transmission, generate reports on-site via mobile app, and support printing.

12, IP65 protection standard, alloy and silicone combined shell, rugged and durable, waterproof and dustproof, can be mounted at any angle.

13, Single battery supports 15 hours of continuous operation.

14, Can measure workpieces with surface temperatures of 60-100℃.


Detection Modes:
1. Dry Single-Crystal Detection
Using a dry single-crystal probe, no secondary feedback, no focus, unaffected by water distance. One probe can measure workpieces of different materials and thicknesses.

2. Water-Focused Single-Crystal Detection

3. Unique Dry Non-Focused Detection
The unique dry non-focused detection requires no water or tape, can handle high temperatures and test surfaces up to 60°C, has low operational requirements, clear waveforms, good repeatability and stability, and is compatible with water-immersed focused detection.

Dry non-focused detection has no initial wave blind spot, can measure thinner pieces, and without the delay block limitation from adding water, it can also measure thicker workpieces.


Technical Specifications:
