Micro Vickers Hardness Test Equipment Sclerometer / Digital Durometer Manual Turret

Micro Vickers Hardness Test Equipment Sclerometer / Digital Durometer Manual Turret
Micro Vickers Hardness Test Equipment Sclerometer / Digital Durometer Manual Turret Micro Vickers Hardness Test Equipment Sclerometer / Digital Durometer Manual Turret Micro Vickers Hardness Test Equipment Sclerometer / Digital Durometer Manual Turret Micro Vickers Hardness Test Equipment Sclerometer / Digital Durometer Manual Turret Micro Vickers Hardness Test Equipment Sclerometer / Digital Durometer Manual Turret

Large Image :  Micro Vickers Hardness Test Equipment Sclerometer / Digital Durometer Manual Turret

Product Details:
Place of Origin: Dongguan/China
Brand Name: iqualitrol
Certification: CE
Model Number: iVick-452H
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Plywood Box
Delivery Time: 20 Working Days
Payment Terms: T/T, Western Union
Supply Ability: 30 Sets per Month
Detailed Product Description
Data Output: Built-in Mini Printer, RS232 Turret: Manual Turret
Objective: 10x (Observe), 40x (Measure) Eyepiece: Digital 10X Eyepiece
Vertical: 100mm Horizontal: 98mm
High Light:

Vickers Hardness Test Equipment

,

Micro Hardness Tester Price

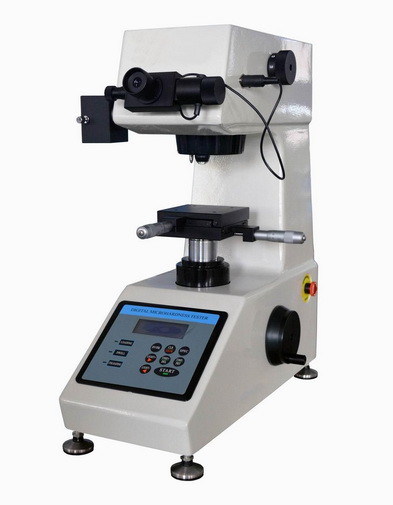

Micro Vickers Hardness Testing Machine Sclerometer / Digital Durometer Manual Turret



Technical Data Download:iqualitrol Micro Hardness Tester iVick-452H



Product Features:

iVick-452H Digital Micro Vickers hardness tester adopts unique precision design of optics, mechanic and electrics features, make the indentation image clearer, and get more precise measurements.



With digital measuring eyepiece, no need for checking the table or inputting the diagonal of the indentation, it can directly show the test mode, test force, indentation length, dwell time, test numbers and conversion scale.



As long as press the eyepiece button after measuring the indentation length, it can automatically get the hardness value and show on the screen.



Test results can be printed out by the built-in printer, and with RS232 interface for connecting to the computer.



Available to install optional Knoop indenter to measure Knoop hardness.



Support to equip optional LCD video measuring device and CCD image automatic measuring system.



Application range:

Suitable for ferrous metal, non-ferrous metals, IC thin sections, coatings, ply-metals; glass, ceramics, agate, precious stones, thin plastic sections etc.; hardness testing such as that on the depth and the trapezium of the carbonized layers and quench hardened layers.



Technical Specification:

Model iVick-452H
Test Force gf 10gf, 25gf, 50gf, 100gf, 200gf, 300gf, 500gf, 1000gf
N 0.098N, 0.246N, 0.49N, 0.98N, 1.96N, 2.94N, 4.90N, 9.80N
Test Range 1HV~2967HV
Test Mode HV/HK
Loading Method Automatic (Loading/Dwell/Unloading)
Turret Manual Turret
Conversion Scale HK, HRA, HRB, HRC, HRD, HRG, HRK, HR15N, HR30N, HR45N, HR15T, HR30T, HR45T, HBW
Data Output Built-in Printer, RS232 Interface
Objective 10x (Observe), 40x (Measure)
Eyepiece 10x
Total Magnification 100x, 400x
Resolution 0.0625μm
Dwell Time 0~60s
Light Source Halogen Lamp
X-Y Test Table Size: 100×100mm; Travel: 25×25mm; Resolution: 0.01mm
Max. Height of Specimen 100mm
Throat 98mm
Power Supply AC220V/50Hz/1Ph, AC110V/60Hz/1Ph
Execute Standard ISO 6507, ASTM E384, JIS Z2244, GB/T 4340.2
Dimension 480×325×545mm, Packing Dimension: 600×360×800mm
Weight Net Weight: 31kg, Gross Weight: 44kg



Packing List:

Name Qty Name Qty
Instrument Main Body 1 set 10x Digital Eyepiece 1 pc
Diamond Vickers Indenter 1 pc 10x, 40x Objective each 1 pc
Weights 6 pcs Weight Axis 1 pc
Cross Test Table 1 pc Flat Clamping Test Table 1 pc
Thin Specimen Test Table 1 pc Filament Clamping Test Table 1 pc
Horizontal Regulating Screw 4 pcs Level 1 pc
Fuse 1A 2 pcs Halogen Lamp 12V,15~20W 1 pc
Power Cable 1 pc Screw Driver 2 pcs
Hardness Block 400~500 HV0.2 1 pc Hardness Block 700~800 HV1 1 pc
Anti-dust Cover 1 pc Usage Instruction Manual 1 copy



Indenter and Objectives 10x and 40x:



Micro Vickers Hardness Test Equipment Sclerometer / Digital Durometer Manual Turret 0



Light Source:

Micro Vickers Hardness Test Equipment Sclerometer / Digital Durometer Manual Turret 1



The Vickers hardness test method consists of indenting the test material with a diamond indenter, in the form of a right pyramid with a square base and an angle of 136 degrees between opposite faces subjected to a load of 1 to 100 kgf. The full load is normally applied for 10 to 15 seconds.



The two diagonals of the indentation left in the surface of the material after removal of the load are measured using a microscope and their average calculated. The area of the sloping surface of the indentation is calculated. The Vickers hardness is the quotient obtained by dividing the kgf load by the square mm area of indentation.



When the mean diagonal of the indentation has been determined the Vickers hardness may be calculated from the formula, but is more convenient to use conversion tables.



Micro Vickers Hardness Test Equipment Sclerometer / Digital Durometer Manual Turret 2



The Vickers hardness should be reported like 800 HV/10, which means a Vickers hardness of 800, was obtained using a 10kgf force. Several different loading settings give practically identical hardness numbers on uniform material, which is much better than the arbitrary changing of scale with the other hardness testing methods.



The advantages of the Vickers hardness test are that extremely accurate readings can be taken, and just one type of indenter is used for all types of metals and surface treatments. Although thoroughly adaptable and very precise for testing the softest and hardest of materials, under varying loads, the Vickers machine is a floor standing unit that is more expensive than the Brinell or Rockwell machines.
