| Light And Dwell Time: | The Measurement Light Intensity Can Be Adjusted Via Buttons, And The Test Force Dwell Time Can Be Preset | Lifting Structure: | Brand New Design With Indenter Lifting Structure |
|---|---|---|---|
| Indentation Measurement: | Adopts A Unique Indentation Measurement Conversion And A Micrometer Eyepiece One-time Measurement Reading | Hardness Conversion: | Built-in Hardness Conversion Table In The Software For Convenient Use And High Measurement Accuracy |
| Loading Control: | Fully Automatic Load/unload Control, Dual Optical Channels (eyepiece And CCD Camera Channel) | Automatic Turret: | Automatic Switching Of Indenter And Objective Lens, With Precise Automatic Positioning Of The Test Point |
| Highlight: | Universal Refrigerated Ventilated Centrifuge,21000r/min Refrigerated Ventilated Centrifuge |
||
Automatic Turret Digital

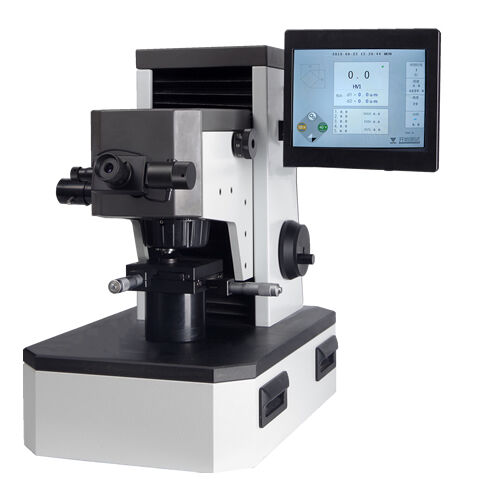

Indenter Lifting Micro Vickers Hardness Tester JMHVS-1000AT
Download Technical Data: Micro Vickers Hardness Tester JMHVS-1000AT
Brief Introduction:
Touch display can show the test method, test force, indentation length, hardness value, test force dwell time, number of measurements, test results, and data processing, with output via a printer.
The iqualitrol JMHVS-1000AT equipped with an automatic indentation image analysis system, capable of photographing and measuring the tested indentations and the material's metallographic structure. It is suitable for measuring the Vickers hardness of tiny or thin specimens, surface plating layers, and for determining the Vickers hardness of brittle materials such as glass, ceramics, agate, and gemstones.
The iqualitrol JMHVS-1000AT Micro Vickers Hardness Tester features a novel and attractive design, with indenter lifting structure, making it especially suitable for testing large-sized workpieces. It also offers good reliability, operability, and intuitiveness.
JMHVS-1000AT uses computer software programming, a high-magnification optical measurement system, and sensor closed-loop control technology. The software allows the selection of test force and dwell time, and supports hardness value conversion.
Technical Specifications:
| Model | iqualitrol JMHVS-1000AT |
| Test force | 10gf, 25gf, 50gf, 100gf, 200gf, 300gf, 500gf, 1kgf |
| Loading method | Automatic loading and unloading |
| Dwell time | 5-60 seconds |
| Turret | Automatic turret |
| Test mode | HV |
| Objectives | 10x, 40x |
| Digital Eyepiece | 10x |
| Resolution | 0.1um |
| Vertical space | 180mm, max height of specimen |
| Depth throat | 135mm |
| Hardness conversion | Conform ASTM E 140 |
| LCD Display | Force Curve, Options, Database, Control, Loading Start, Lighting Adjustment, Object Switching |
| Value Display | D1, D2 value; HV, HK indication; hardness value; conversion value; test times; dwell time |
| Light source | LED light |
| COM port | RS232 |
| Executive Standards | JJG151, GB/T 4340, ISO/DIN6507, ASTM E-384 |
| Power Supply | AC90-240V/50Hz |
| Dimension & weight | 500*340*540mm, 65Kg |
Main Features:
1, The measurement light intensity can be adjusted via buttons, and the test force dwell time can be preset.
2, Brand new design with indenter lifting structure.
3, The machine adopts a unique indentation measurement conversion and a micrometer eyepiece one-time measurement reading mechanism.
4, Built-in hardness conversion table in the software for convenient use and high measurement accuracy.
5, Fully automatic load/unload control, dual optical channels (eyepiece and CCD camera channel), compatible with computer control systems.
6, Selection of microscopic Vickers and Knoop hardness scales; the tested hardness value is automatically calculated and displayed.
7, Automatic switching of indenter and objective lens (automatic turret), with precise automatic positioning of the test point.
