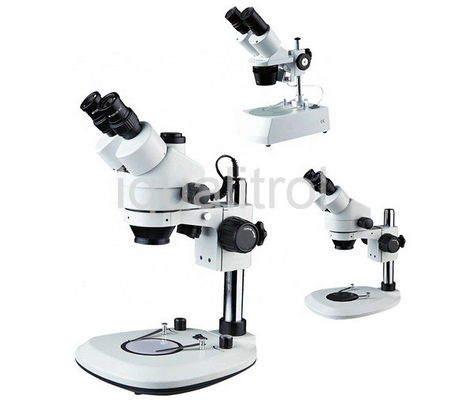

Dual Magnification Stereo Zoom Microscope With Horizontal And Vertical Zoom Style

Dual Magnification Stereo Zoom Microscope With Horizontal And Vertical Zoom Style
Dual Magnification Stereo Zoom Microscope With Horizontal And Vertical Zoom Style Dual Magnification Stereo Zoom Microscope With Horizontal And Vertical Zoom Style Dual Magnification Stereo Zoom Microscope With Horizontal And Vertical Zoom Style Dual Magnification Stereo Zoom Microscope With Horizontal And Vertical Zoom Style

Large Image :  Dual Magnification Stereo Zoom Microscope With Horizontal And Vertical Zoom Style

Product Details:
Brand Name: iqualitrol
Model Number: iStereo-112H
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Packaging Details: Carton Box
Delivery Time: 10 Working Days
Payment Terms: T/T, Western Union
Supply Ability: 20 Sets per Month
Detailed Product Description
Eyetube: Inclined 45° WD: Working Distance 105mm
Magnification: 10X - 120X Focus Range: 50mm(track Stand: 100mm)
IStereo-112H: Magnification 10x And 20x IStereo-124H: Magnification 40x And 20x
Highlight:

Stereoscopic Dissecting Microscope

,

High Magnification Stereo Microscope



Dual Magnification Stereo Zoom Microscope With Horizontal And Vertical Zoom Style



Technical Data Download: iqualitrol Stereo Microscope iStereo-100H



Product Information:

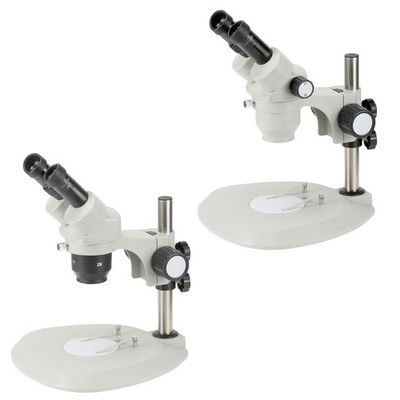

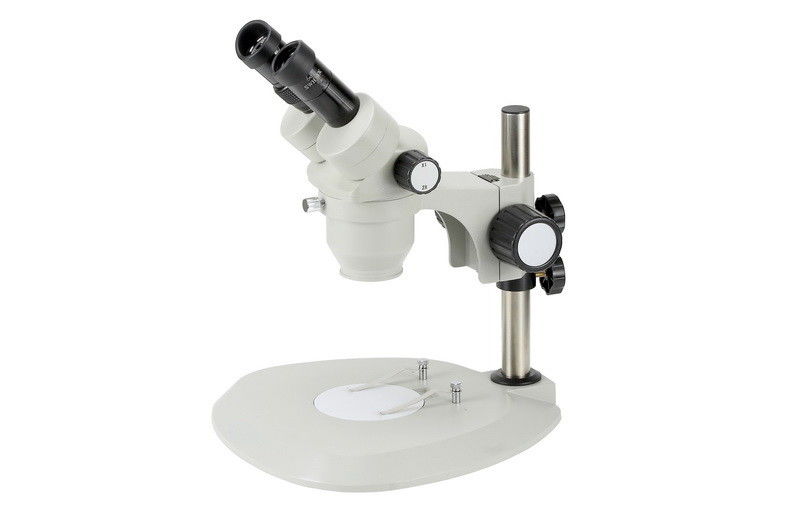

◎ iStereo-112H, iStereo-113H, iStereo-124H

◆ Unique optical design, extra long working distance, large depth of fields

◆ High eye-position and extra wide-field eyepieces.



◆ Horizontal axial drive control knobs, easy to operation

◆ Extensively used in mineral specimen researching,precision components assembling, industry productline and weeny objects inspection

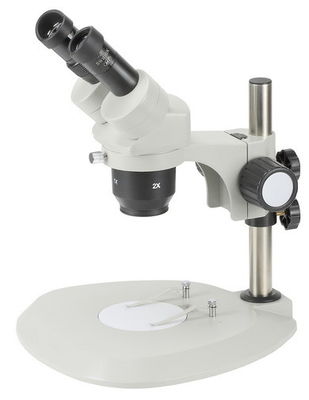

◎ iStereo-112V,  iStereo-113V, iStereo-124V

◆ Change magnification by the turret body, orientation precision, excellent parfocal performance

◆ High eye point and extra wide-field eyepieces

◆ Especially be long time used in industry product line





Sharp stereo erect images with a wide field of view

Crystal clear original true color microscope images

Dual eye tubes with adjustable diopters



Large working distance

Sturdy all-metal table stand

Accurate alignment reduces eye strain for longer periods of viewing

Full optical glass elements



Dual Magnification Stereo Zoom Microscope With Horizontal And Vertical Zoom Style 0



Technical Specifications:

Zoom driver iStereo-H Series change
magnification by knobs
iStereo-V Series change
magnification by the turret
Eyepiece SWH10X high eye point & extra wide-field eyepiece, FOV Φ23mm
Eyetubes Inclined 45°
WD 105mm
Focus range 50mm(track stand: 100mm)
Interpupillary distance adjustment range (10X eyepiece) 52mm~76mm
Diopter adjustment range ±6 Diopter
The holder and the head matching dimension Φ76mm
Distance between the center of the pole and the center of the holder 140mm
Diameter of the pole Φ25mm
Diameter of the center working stage Φ95mm
Illuminators Optional illumination:5W fluorescent lamp at the bottom; halogen lamp(6V,10W) on the top.



Model Objective Specification of different eyepiece
SWH10X SWF15X SWF20X SWF30X
Total Mag. FOV(mm) Total Mag. FOV(mm) Total Mag. FOV(mm) Total Mag. FOV(mm)

iStereo-112H

iStereo-112V

1X 10X Dia 23 15X Dia 17 20X Dia 14 30X Dia 9
2X 20X Dia 11.5 30X Dia 8.5 40X Dia 7 60X Dia 4.5

iStereo-113H

iStereo-113V

1X 10X Dia 23 15X Dia 17 20X Dia 14 30X Dia 9
3X 30X Dia 7.67 45X Dia 5.67 60X Dia 4.67 90X Dia 3

iStereo-124H

iStereo-124V

2X 20X Dia 11.5 30X Dia 8.5 40X Dia 7 60X Dia 4.5
4X 40X Dia 5.75 60X Dia 4.25 80X Dia 3.5 120X Dia 2.25



What is Stereo Microscopes?

The stereo or stereoscopic is an optical microscope variant designed for low magnification observation of a sample, typically using light reflected from the surface of an object rather than transmitted through it.



The instrument uses two separate optical paths with two objectives and eyepieces to provide slightly different viewing angles to the left and right eyes. This arrangement produces a three-dimensional visualization of the sample being examined.



Stereomicroscopy overlaps macrophotography for recording and examining solid samples with complex surface topography, where a three-dimensional view is needed for analyzing the detail.



The stereo microscope is often used to study the surfaces of solid specimens or to carry out close work such as dissection, microsurgery, watch-making, circuit board manufacture or inspection, and fracture surfaces as in fractography and forensic engineering.



They are thus widely used in manufacturing industry for manufacture, inspection and quality control. Stereo microscopes are essential tools in entomology.
