| Name: | Binocular Stereo Microscope | Eyetube: | Inclined 45°/60° |
|---|---|---|---|
| WD: | Working Distance 110mm | Focus Range: | 50mm(track Stand: 100mm) |
| Eyepiece: | 10X, FOV Φ23mm | IStereo-110: | Inclined 45° |
| IStereo-111: | Inclined 60° | Zoom: | Magnification 7X - 40X |
| Highlight: | Binocular Stereo Zoom Microscope,Stereo Zoom Microscope 110mm,Stereo Zoom Binocular Microscope |
||
Working Distance 110mm Stereo Zoom Microscope with Magnification 7X - 40X
Technical Data Download: iqualitrol Stereo Microscope iStereo-110
Brief Introduction:
◆ Includes iStereo-110 (Inclined 45°) and iStereo-111 (Inclined 60°).
◆ Adopted with particular high definition optical system, vertical hand wheel to zoom, large depth of field, excellent parfocal performance.
◆ Extensively used for microelectronics, exact manufacture and the other science and technology industry field.
iqualitrol stereo optical microscope was designed for low magnification observation of a sample, typically using light reflected from the surface of an object rather than transmitted through it.
iqualitrol stereo microscope uses two separate optical paths with two objectives and eyepieces to provide slightly different viewing angles to the left and right eyes. This arrangement produces a three-dimensional visualization of the sample being examined.
Stereo microscopy overlaps macrophotography for recording and examining solid samples with complex surface topography, where a three-dimensional view is needed for analyzing the detail.
iqualitrol stereo microscope application:
1, to study the surfaces of solid specimens or
2, to carry out close work such as dissection, microsurgery, watch-making, circuit board manufacture or inspection, and fracture surfaces as in fractography and forensic engineering.
iqualitrol stereo microscope widely used in manufacturing industry for manufacture, inspection and quality control. Stereo microscopes are essential tools in entomology.
Specifications:
| Magnification | Total magnification(standard outfits): 7X~40X, Extend total magnification: 240X |
| Eyepiece | SWH10X high eye point & extra wide-field eyepiece ,FOV Φ23mm |
| Eyetubes | Inclined 45°/60° |
| WD | 110mm |
| Focus range | 50mm(track stand: 100mm) |
| Interpupillary distance adjustment range(10X eyepiece) | 52mm~76mm |
| Diopter adjustment range | ±6 Diopter |

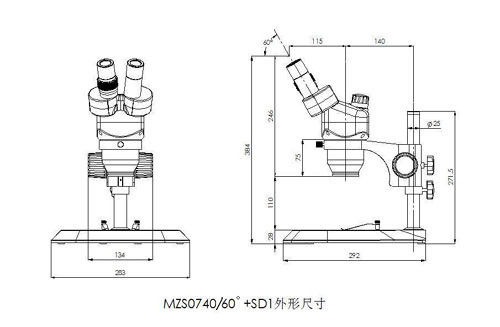

| The holder and the head matching dimension | Φ76mm |
| Distance between the center of the pole and the center of the holder | 140mm |
| Diameter of the pole | Φ25mm |
| Diameter of the center working stage | Φ95mm |
| Illuminators | Optional illumination:5W fluorescent lamp at the bottom; halogen lamp(6V/10W) on the top. |
| Eye-piece | Item | Main body | Specification of different auxiliary objective | ||||
| 0.37X | 0.5X | 0.7X | 1.5X | 2X | |||
| 10X | Total Mag. | 7X~40X | 2.59X~14.8X | 3.5X~20X | 4.9X~28X |
10.5X~ 60X |
14X ~ 80X |
|
FOV (mm) |
ϕ32.8~ϕ5.75 | ϕ88.8~ϕ15.5 | ϕ65.7~ϕ11.5 | ϕ46.9~ϕ8.2 |
ϕ21.9~ ϕ3.4 |
ϕ16.4~ ϕ2.6 |
|
| 15X | Total Mag. | 10.5X~60 X | 3.89X~22.2X | 5.3X~30X | 7.4X~42X |
15.8X~ 90X |
21X~ 120X |
|
FOV (mm) |
ϕ24.3~ϕ4.3 | ϕ65.6~ϕ11.5 | ϕ48.6~ϕ8.5 | ϕ34.7~ϕ6.1 |
ϕ16.2~ ϕ2.8 |
ϕ12.1~ ϕ2.1 |
|
| 20X | Total Mag. | 14X~80X | 5.18X~29.6X | 7X~40X | 9.8X~56X |
21X~ 120X |
28X~ 160X |
|
FOV (mm) |
ϕ20~ϕ3.5 | ϕ54.1~ϕ9.5 | ϕ40~ϕ7 | ϕ28.6~ϕ5 |
ϕ13.3~ ϕ2.3 |
ϕ10~ ϕ1.8 |
|
| 30X | Total Mag. | 21X~120X | 7.77X~44.4X | 10.5X~60X | 14.7X~84X |
31.5X~ 180X |
42X~240X |
|
FOV (mm) |
ϕ12.9~ϕ2.3 | ϕ34.7~ϕ6.1 | ϕ25.7~ϕ4.5 | ϕ18.4~ϕ3.2 |
ϕ8.6~ ϕ1.5 |
ϕ6.4~ ϕ1.1 |
|
| WD(mm) | 110 | 275 | 195 | 145 | 50 | 35 | |
NOTES:
1. Please use lengthened round post when using 0.37X objective, track stands cannot be used.
2. When 0.5X or lower magnification objective applied, track stands cannot be used.
